Items that have a link will
show a picture when clicked |
|
|
|
|
|
|
|
|
|
Most of
the rubber parts are available from Cicognani s.r.l. |
|
|
|
|
|
|
|
|
|
They
are available in the US from Re-Originals. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Item |
Location |
Part number |
Qty |
Feet* |
Meters |
Manual** |
Page-Ref # |
Cicognani # |
|

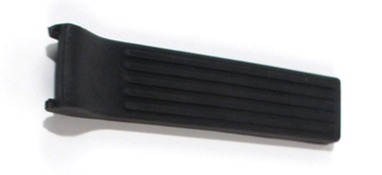

| Accelerator
pedal cover |
On accelerator pedal (Floor
mounted pedal) |
18962 |
1 |
|
|
1 |
8-34 |
16315291 |
|
| Backup light wire boot |
Around wire at backup light
(Series I/Marchal 530) |
Part of 241.82.480.0.2 |
1 |
|
|
B |
59-21 |
|
|
| Backup
light wire boot |
Around wire at backup light
(Series I/Marchal 540) |
Part of 242.82.480.0.2 |
1 |
|
|
B |
59-21 |
|
|
| Backup light
wire boot |
Around wire at backup light
(Series II) |
Part of 243.82.481.0.2 |
2 |
|
|
B |
61/1-21 |
|
|
| Backup/License
light wire grommets |
At body around wires |
? |
3 |
|
|
B |
|
|
|

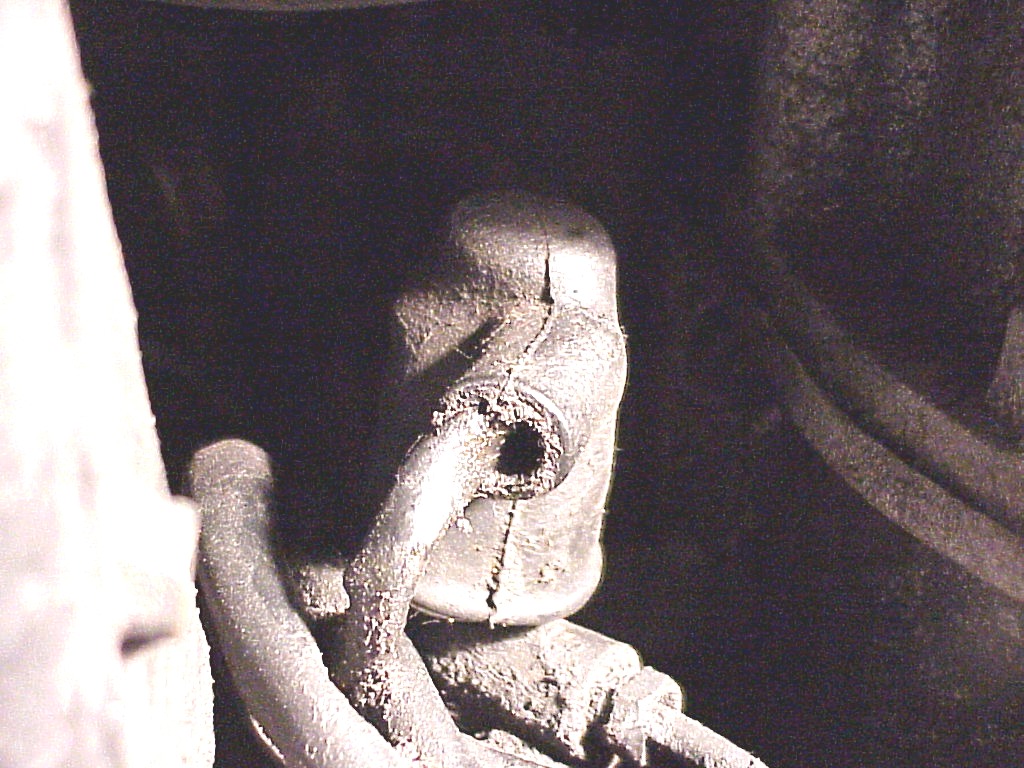

| Brake light switch boot |
Covers brake light switch
(Series I) |
50-15531 |
1 |
|
|
1 |
31-10 |
|
|
| Brake
light switch boot |
Covers brake light switch
(Series II) |
680151 |
1 |
|
|
2 |
28-13 |
|
|
| Brake master cylinder
boot |
Covers brake cylinder end
(Series I) |
4035557 |
1 |
|
|
1 |
32-7 |
|
|

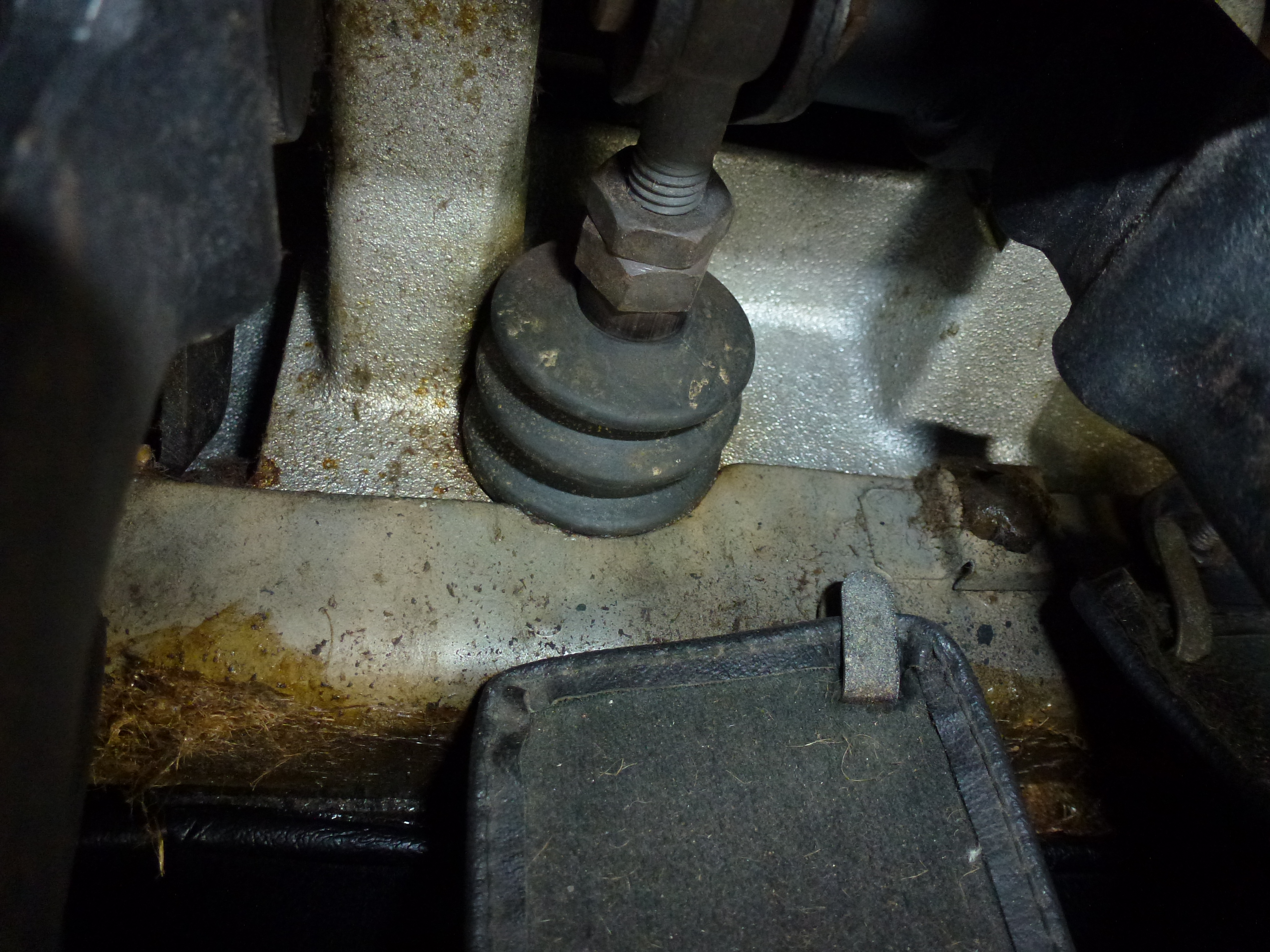

| Brake
master cylinder boot |
Covers brake cylinder in
footwell (Series II) |
660340 |
1 |
|
|
2 |
27-56 |
|
|
| Brake vacuum hose |
Between rear intake
manifold and tee (Bonaldi) |
18x23 |
1 |
|
|
1 |
31-5 |
|
|
| Brake vacuum hose |
Between tee and boosters
(Bonaldi) |
18x23 |
2 |
|
|
1 |
31-5 |
|
|
| Brake
vacuum hose |
Between rear intake
manifold and brake booster (Dunlop) |
13x21x750 |
1 |
|
|
2 |
28-2 |
|
|

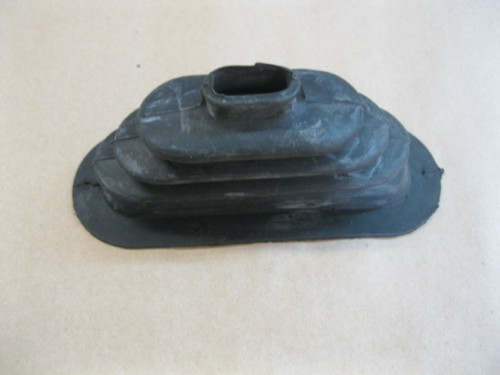

| Brake/clutch
lever boots |
At floor around levers
(Floor mounted pedal) |
660081 |
2 |
|
|
1 |
30-58 |
16315307 |
|
| Brake/clutch
pedal covers |
On floor mounted pedals |
67071 |
2 |
|
|
1 |
30-36 |
16315291 |
|

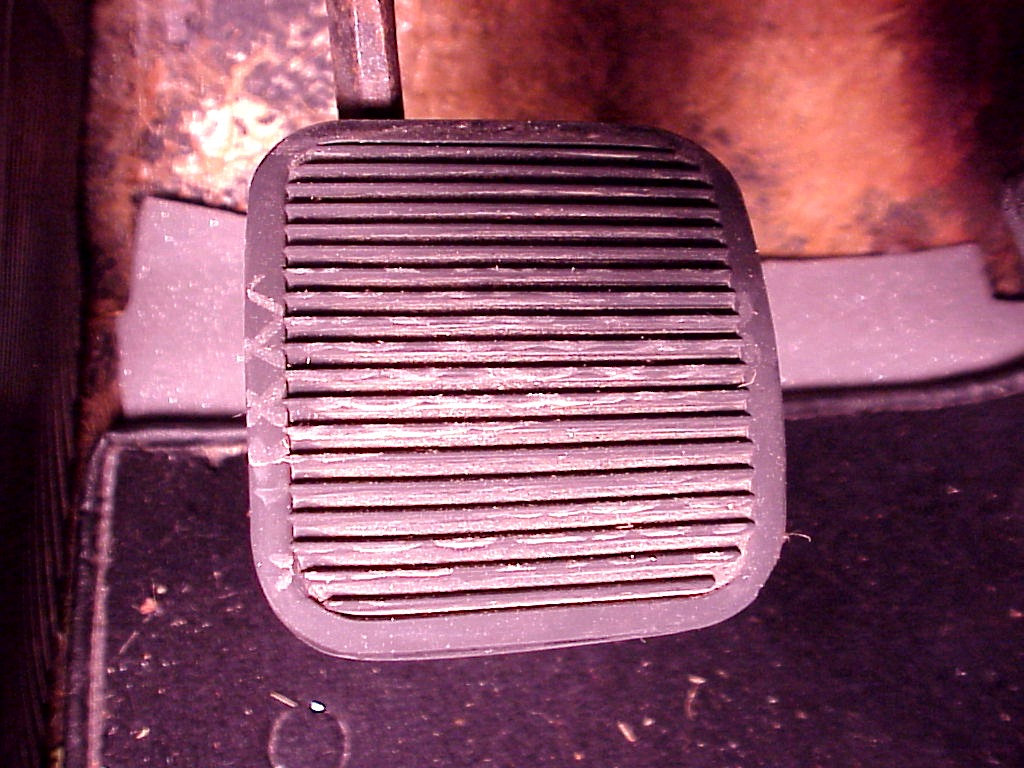

| Brake/clutch
pedal covers |
On hanging pedals |
67071 |
2 |
|
|
2 |
27-72 |
16315290 |
|

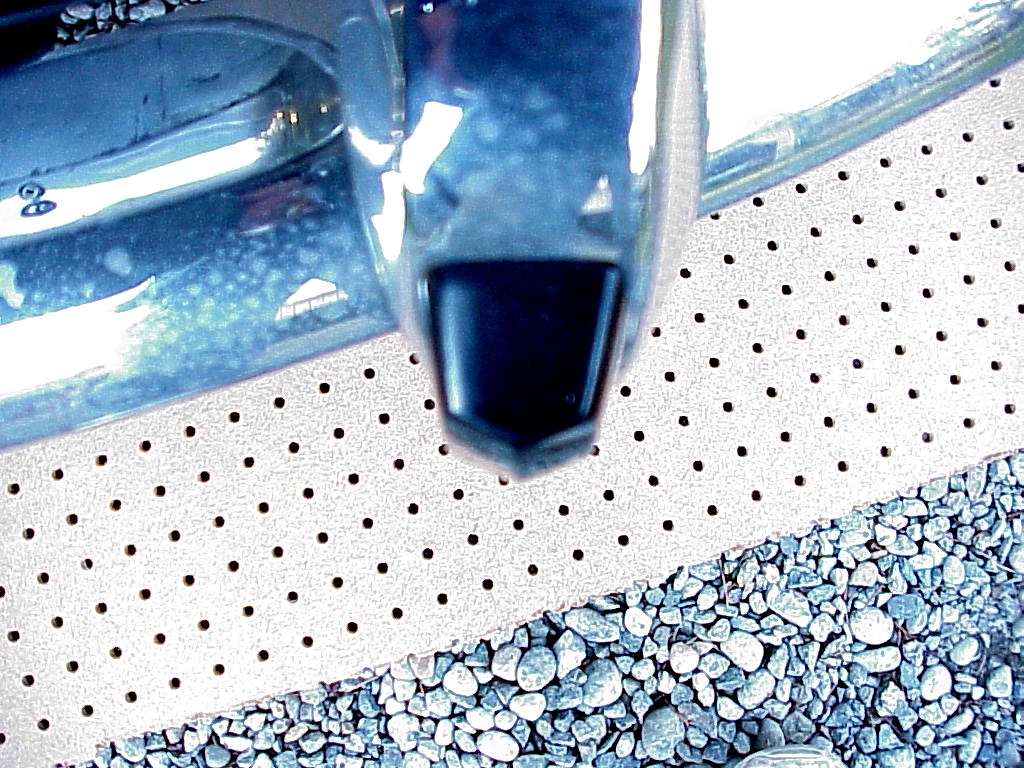

| Bumper
overrider inserts |
Series II bumpers, fit into
overriders (PVC) |
242.36.920.0.0 |
4 |
|
|
B |
26/1-14 |
16315185 |
|
| Bumper pads |
At ends of bumper at body |
400.36.190.0.0 |
4 |
|
|
B |
25-6 |
16315186 |
|

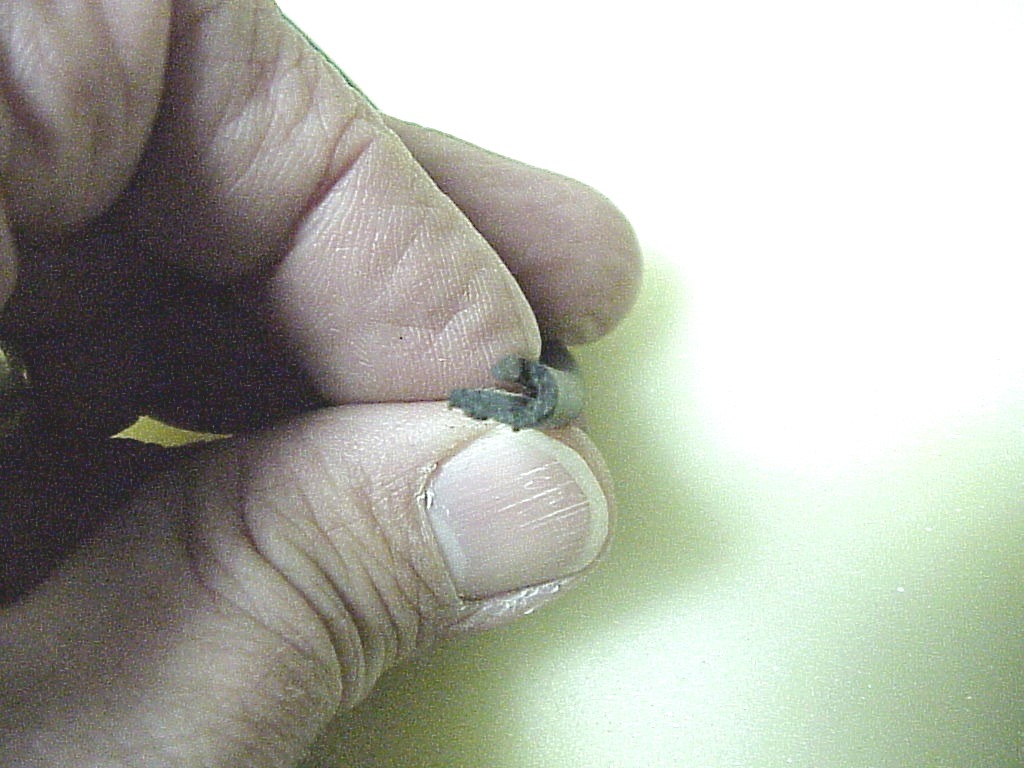

| Bumper
rubber |
Around bumper escutcheons
(front & rear) |
241.74.590.0.0 (Note 3) |
4 |
3 |
0.9 |
B |
25-9 |
|
|
| Bumper
rubber |
Between overriders and
bumper (front & rear) |
241.74.590.0.0 (Note 3) |
8 |
5 |
1.5 |
B |
25-9 |
|
|

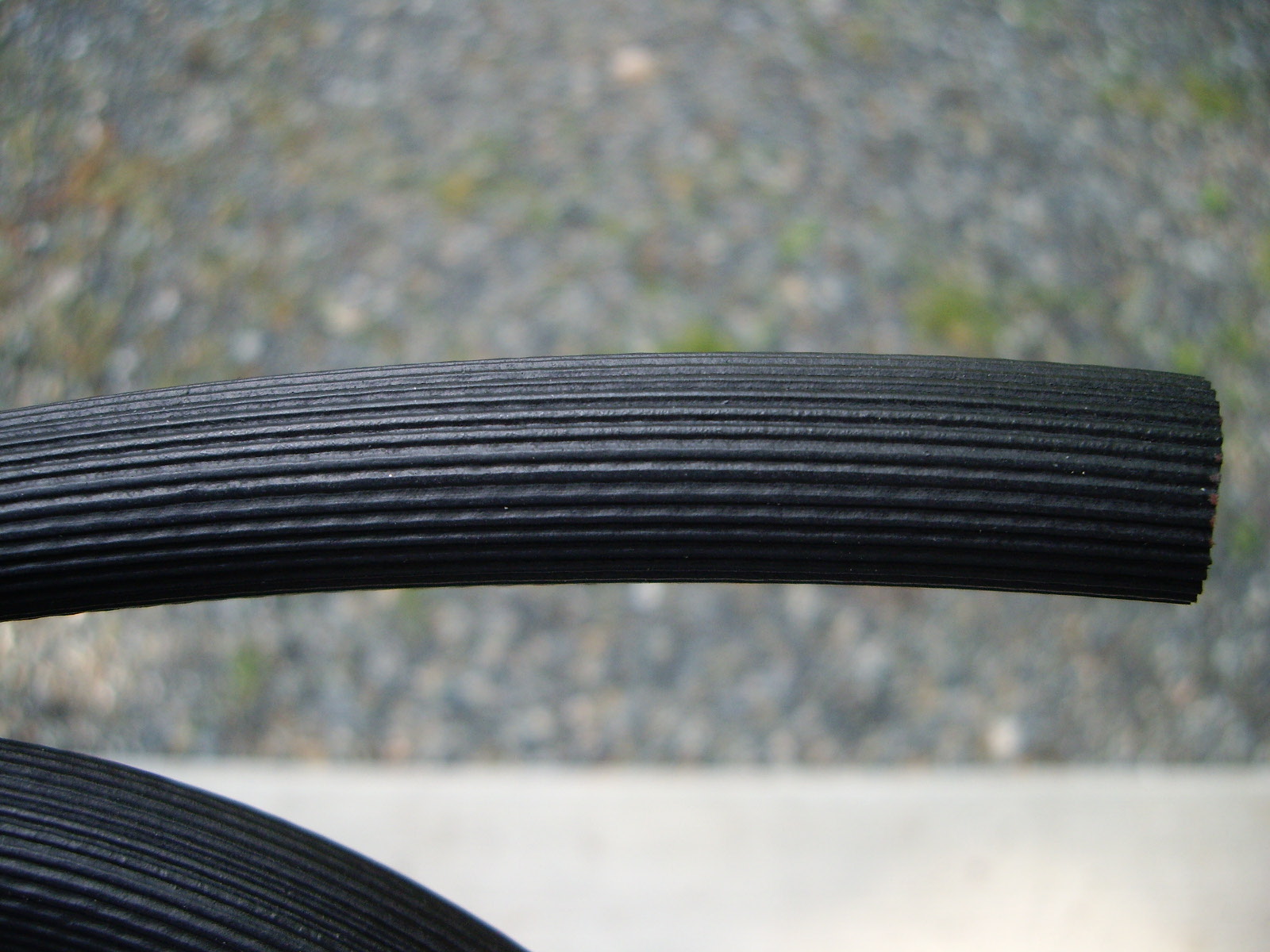

| Carpet
rubber floor mats |
Sewn onto driver's and
passenger's carpets |
Part of 242.62.805.1.0 |
1 |
|
|
B |
39-12 |
Part of
16315000 |
|

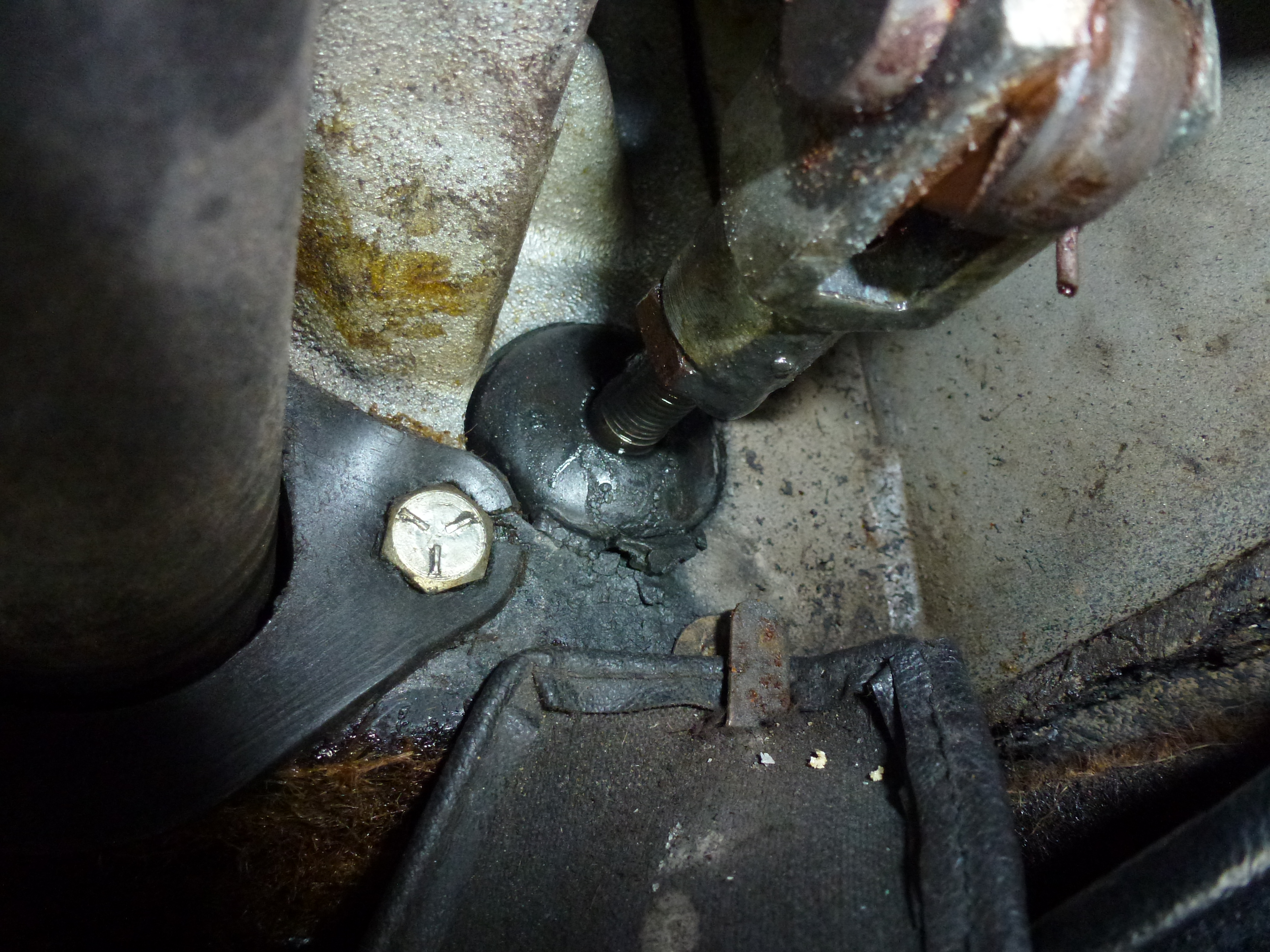

| Clutch
master boot |
End of master cylinder |
660443/8 |
1 |
|
|
B |
27-69 |
|
|

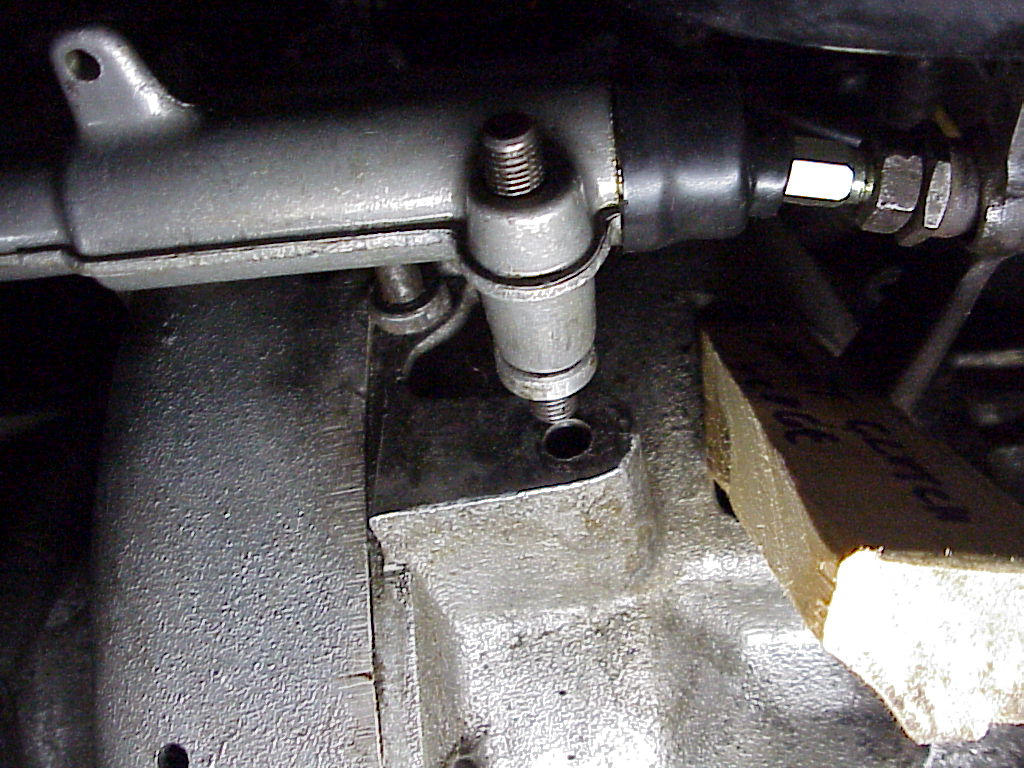

| Clutch
slave boot |
End of slave cylinder |
500259/7 |
1 |
|
|
2 |
15-58 |
|
|

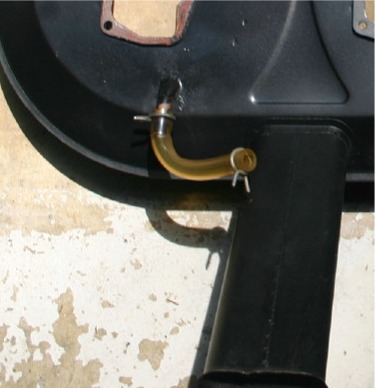

| Crankcase
ventilation hose (cars with P/S) |
From RH valve cover to air
cleaner |
21003 |
1 |
|
|
P |
3-6 |
|
|
| Crankcase
ventilation hose (cars with P/S) |
From RH valve cover to rear
intake manifold |
21011 |
1 |
|
|
P |
3-14 |
|
|
| Crankcase
ventilation hose (cars with P/S) |
From LH valve cover to air
cleaner |
21002 |
1 |
|
|
P |
3-4 |
|
|
| Crankcase
ventilation hose (cars with P/S) |
From LH valve cover to tee
between front 2 carbs |
21009 |
1 |
|
|
P |
3-11 |
|
|

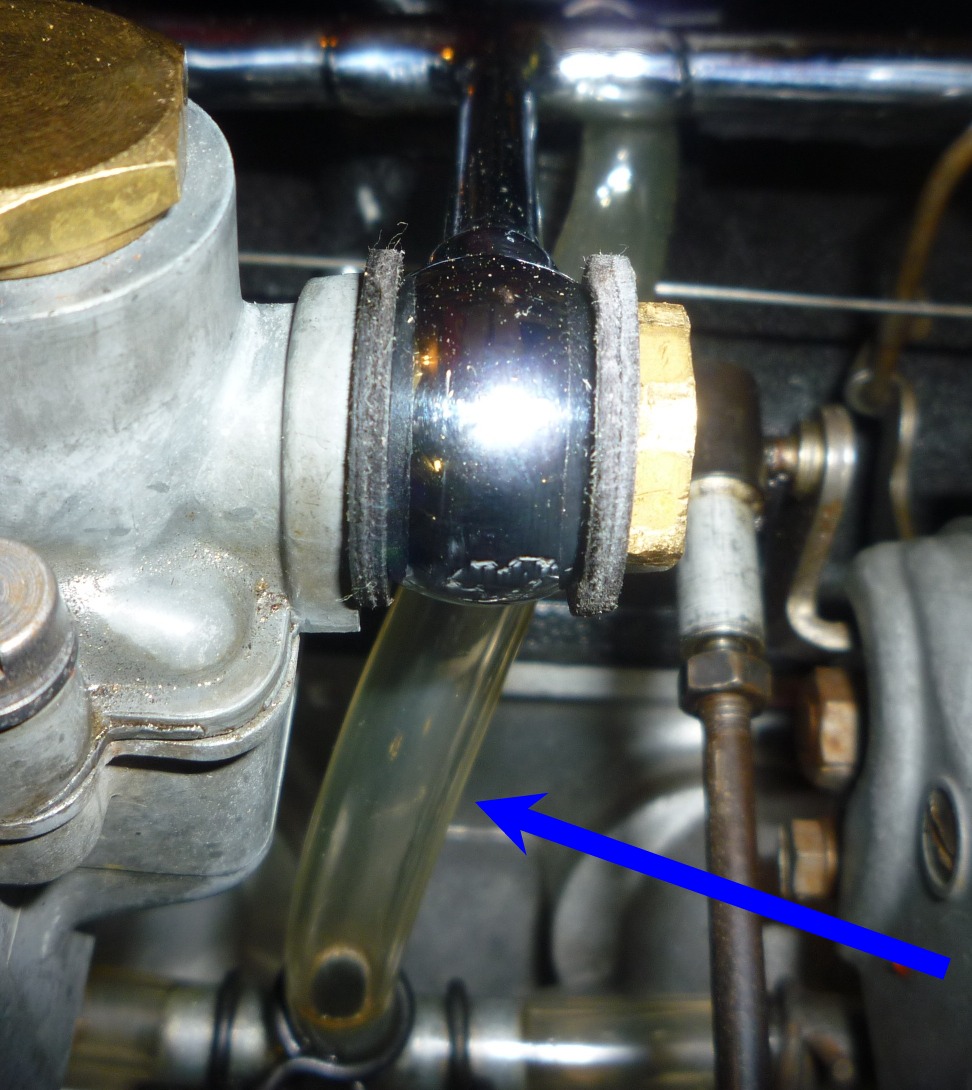

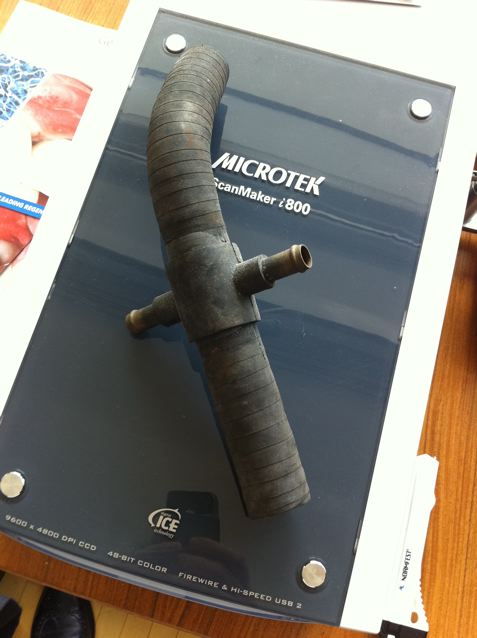

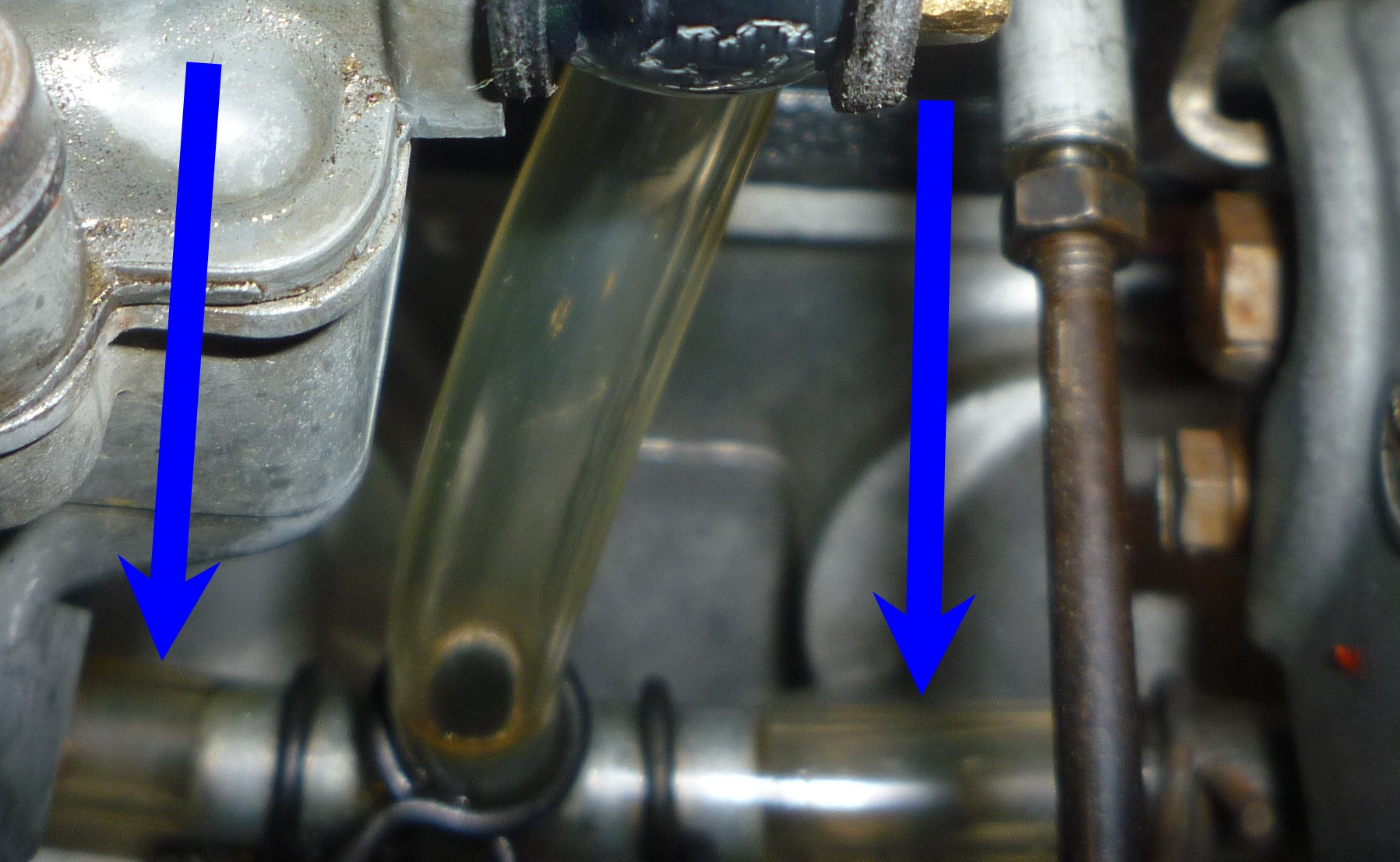

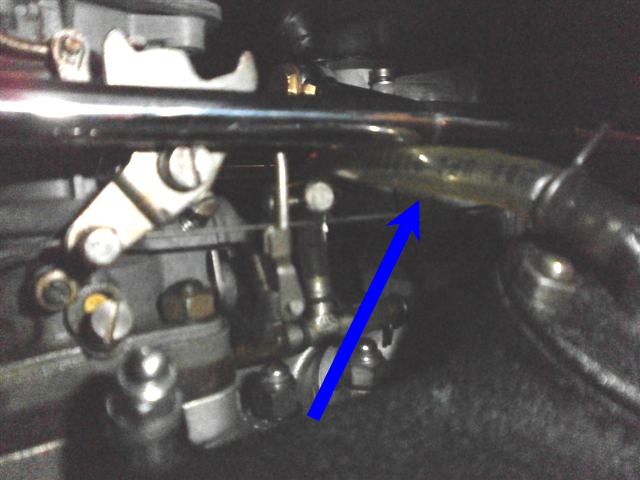

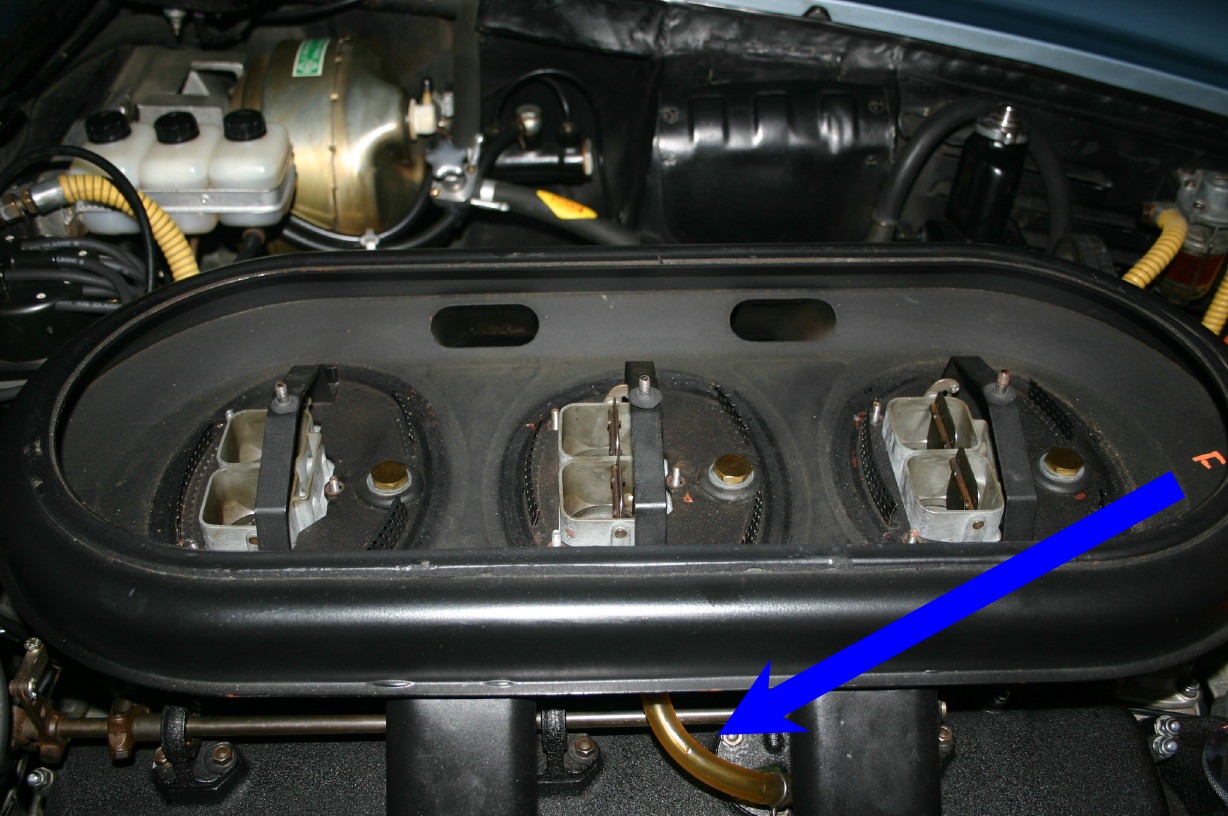

| Crankcase
ventilation hose (cars with P/S) |
From tee to front and
middle carbs |
95042 |
2 |
|
|
P |
3-12 |
|
|

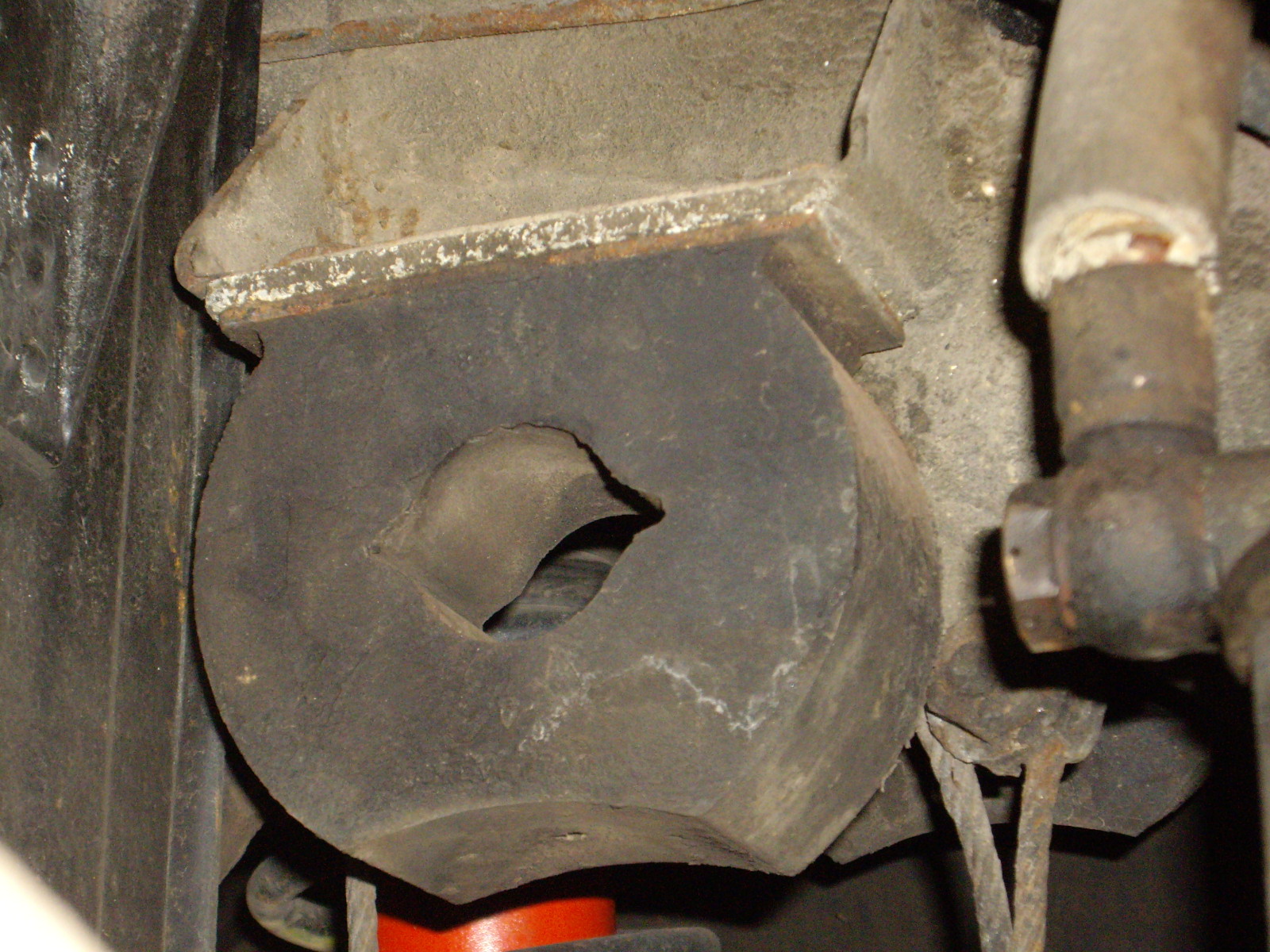

| Differential
snubber |
On body above differential
tubes |
600251 |
2 |
|
|
2 |
23-14 |
|
|
| Distributor
wire boots |
Distributor, coil and
resistor |
28919 (Note 5) |
6 |
|
|
2 |
12-21 |
|
|

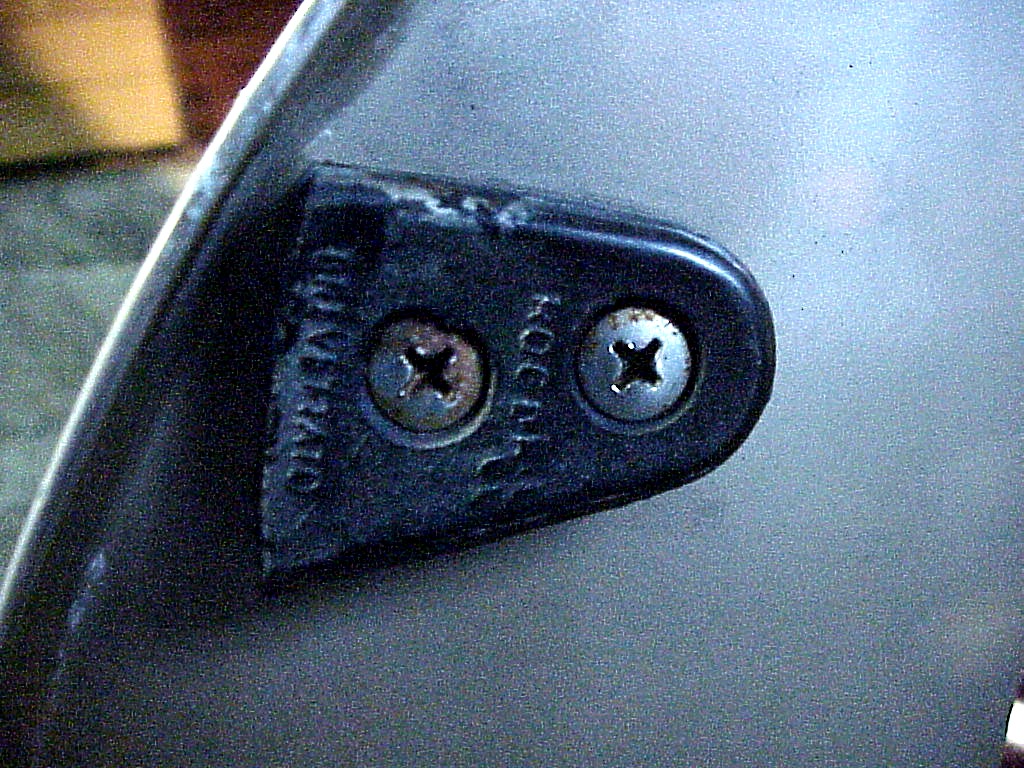

| Door aligning
wedge (left) |
On door, aligns door when
closed |
691.30.240.0.0 |
2 |
|
|
B |
14-9 |
16315335 |
|
| Door aligning
wedge (right) |
On door, aligns door when
closed |
691.30.241.0.0 |
2 |
|
|
B |
14-9 |
16315335 |
|
| Door
channel stops (LF and RR) |
Where window frame meets
door |
? |
2 |
|
|
B |
|
|
|
| Door
channel stops (RF and LR) |
Where window frame meets
door |
? |
2 |
|
|
B |
|
|
|

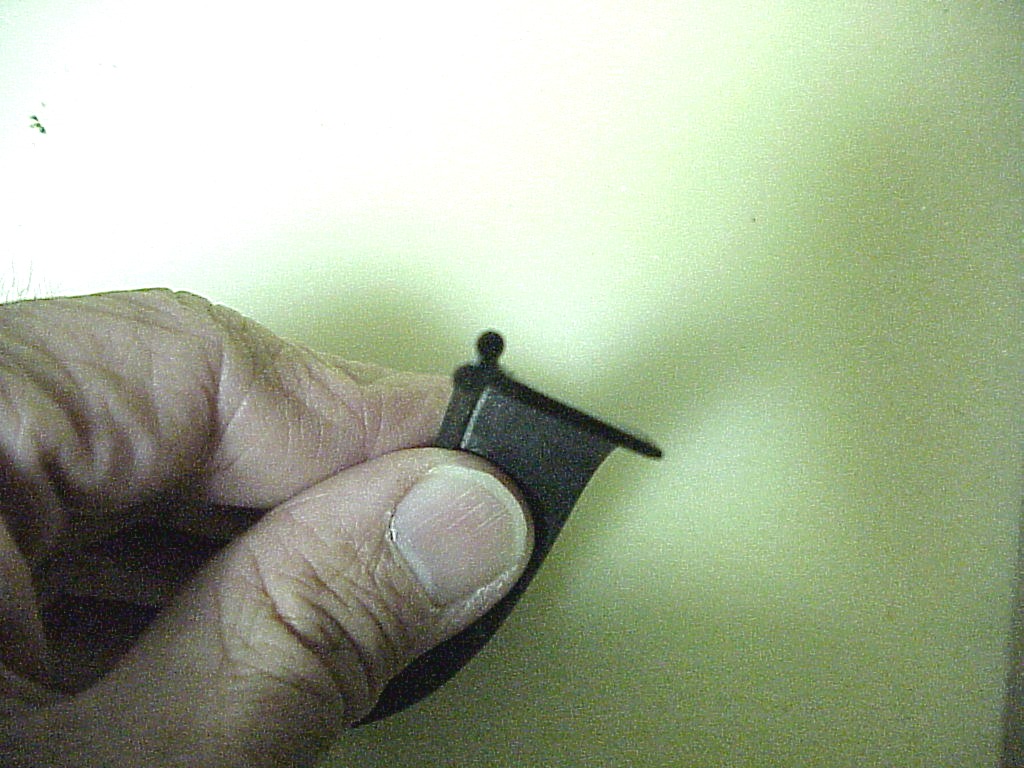

| Door edge
seal |
Leading edge of door and
under fender near door |
242.30.168.0.0 |
2 |
8 |
2.4 |
B |
14-4 |
16315175 |
|
| Door frame cup black
plastic gasket (left) |
On door frame, between
aligning cup and body |
Part of 239.30.267.0.8 |
2 |
|
|
B |
14-11 |
16315335-2 |
|
| Door frame cupblack
plasitc gasket (right) |
On door frame, between
aligning cup and body |
Part of 239.30.266.0.8 |
2 |
|
|
B |
14-11 |
16315335-2 |
|
| Door grommets |
In door frame and front
door edge |
? |
4 |
|
|
|
|
|
|

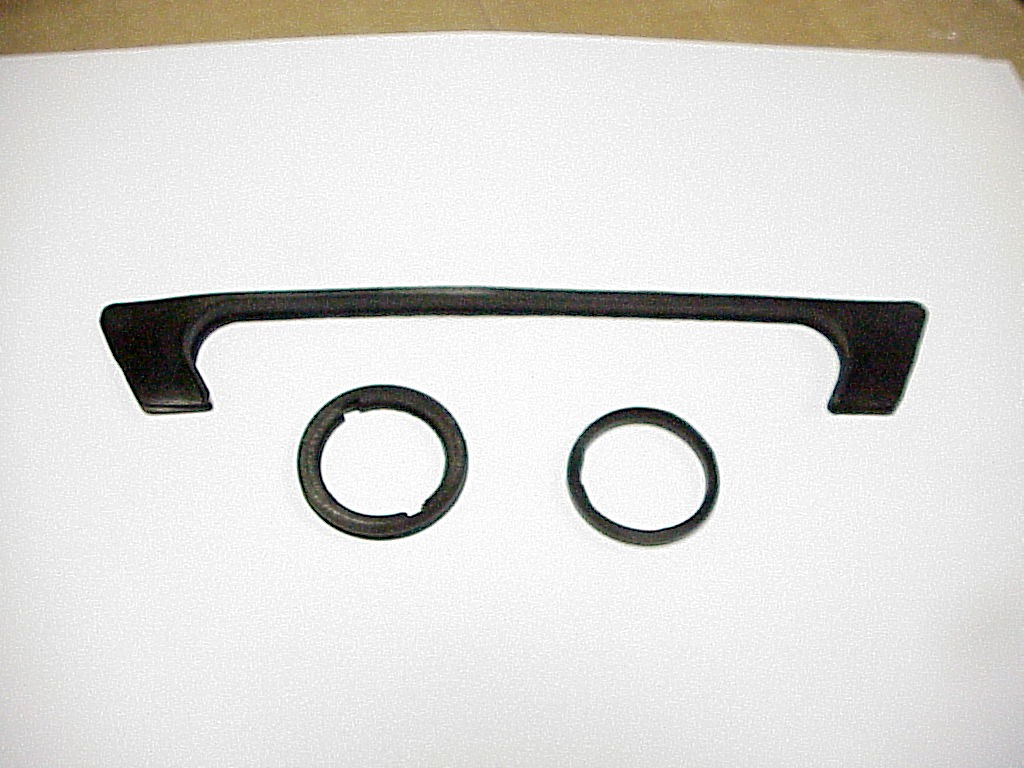

| Door
handle rubber |
Between handle and body |
242.30.284.0.0 |
2 |
|
|
B |
14-14 |
16315330 |
|

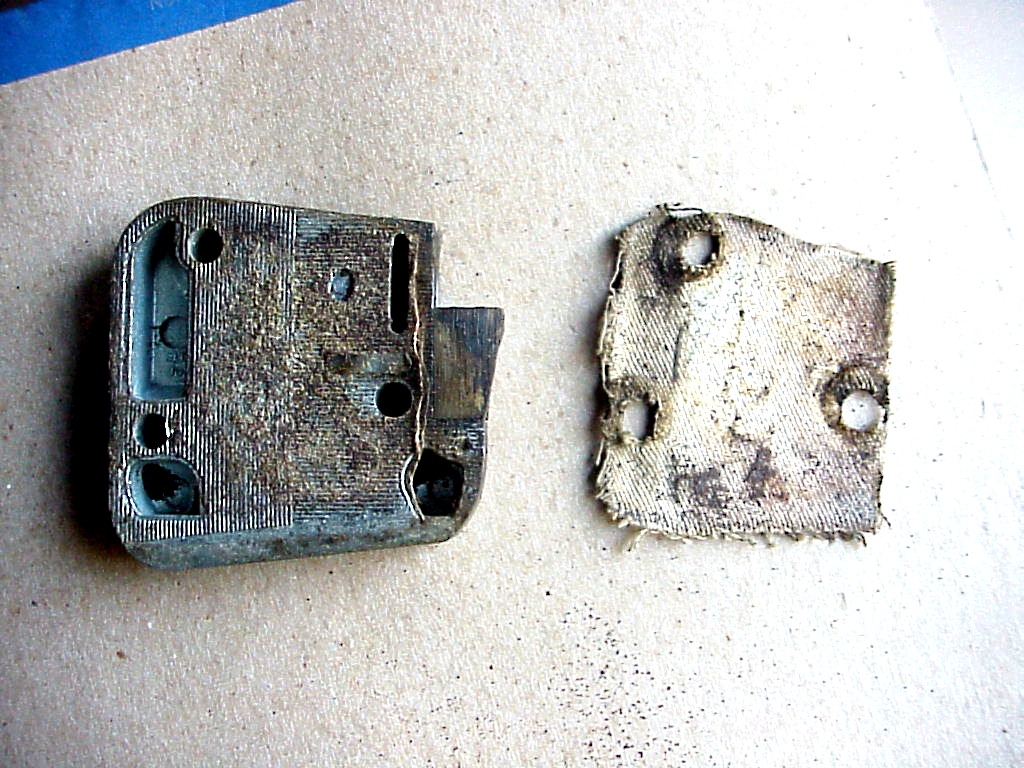

| Door latch
gasket |
Under door latch on body
(actually canvas cloth) |
242.30.216.0.0 |
2 |
|
|
B |
14-8 |
|
|

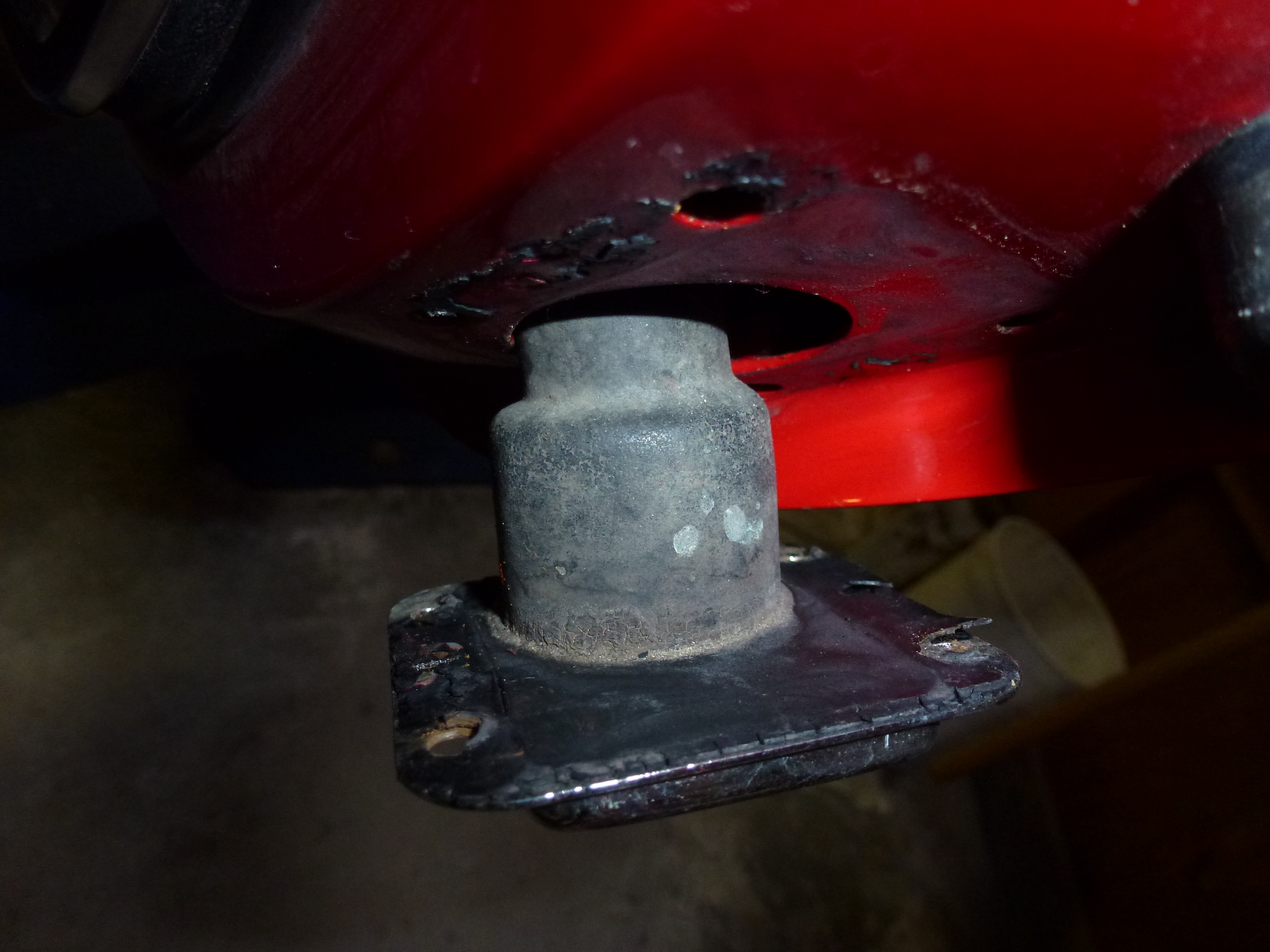

| Door light
rubber boot |
Around light on rear edge
of door |
Part of 242.30.634.0.2 |
2 |
|
|
B |
14-49 |
16315249 |
|

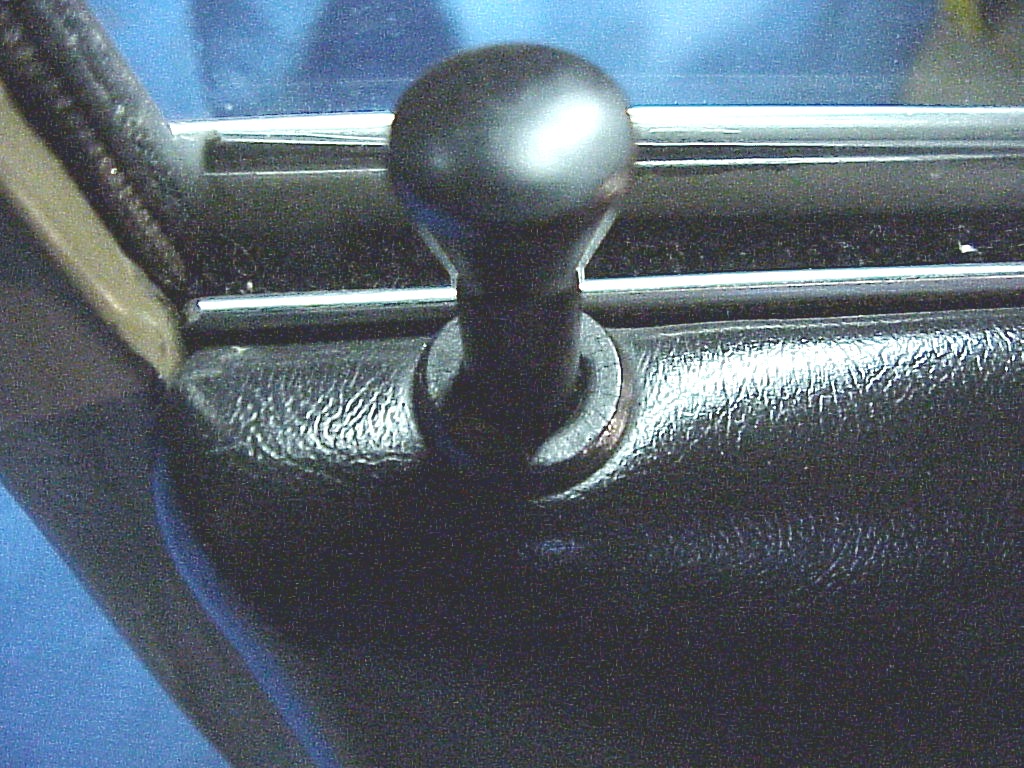

| Door
lock button rubber |
Surrounds lock button
(inside) |
242.30.192.0.8 |
2 |
|
|
B |
14-66 |
|
|
| Door
lock rubber |
Between lock and body |
Part of 242.30.260.0.2 |
2 |
|
|
B |
14-10 |
|
|
| Door plugs |
Under door (cut on inner
side) |
? |
4 |
|
|
B |
|
16315317 |
|

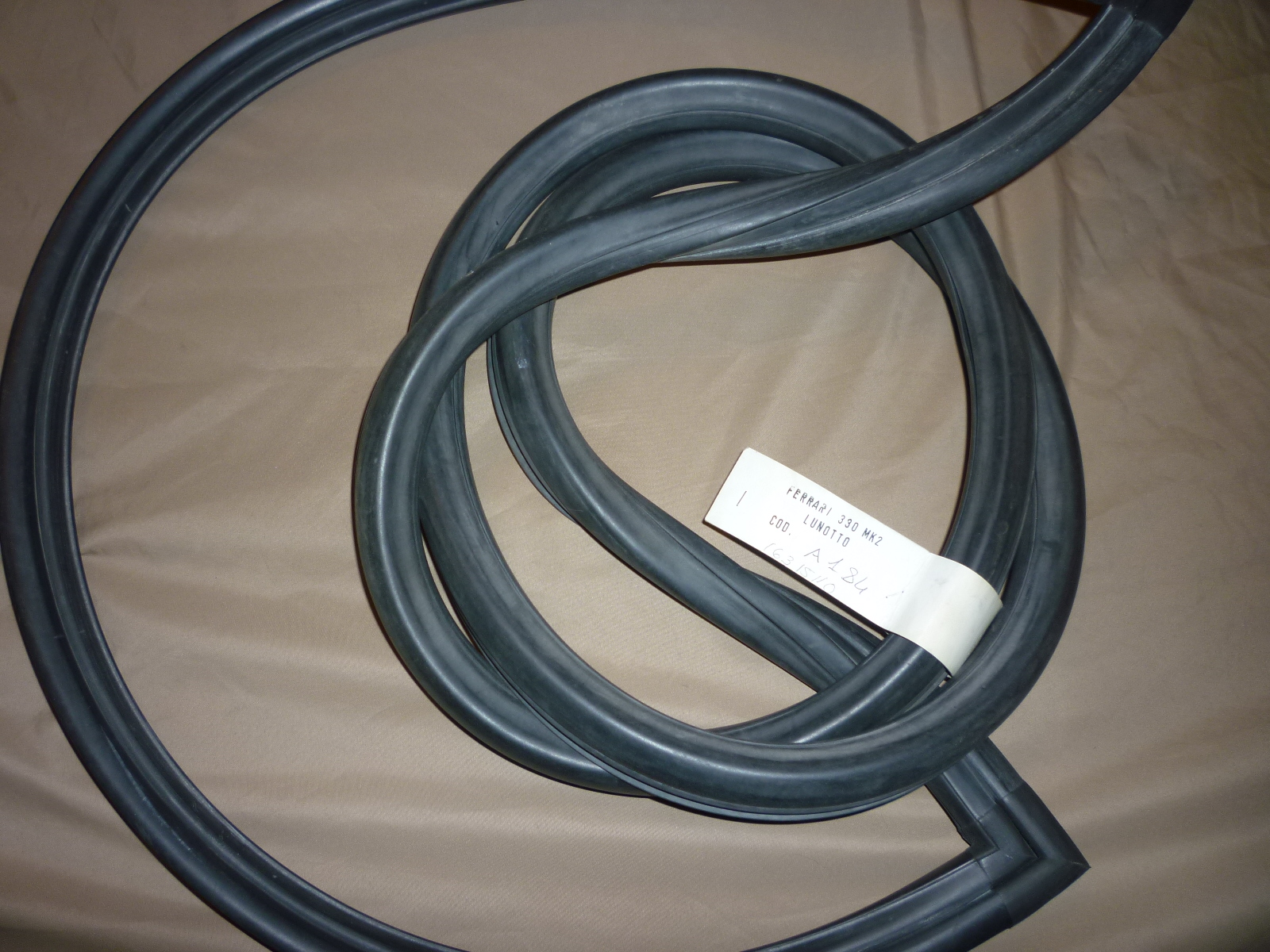

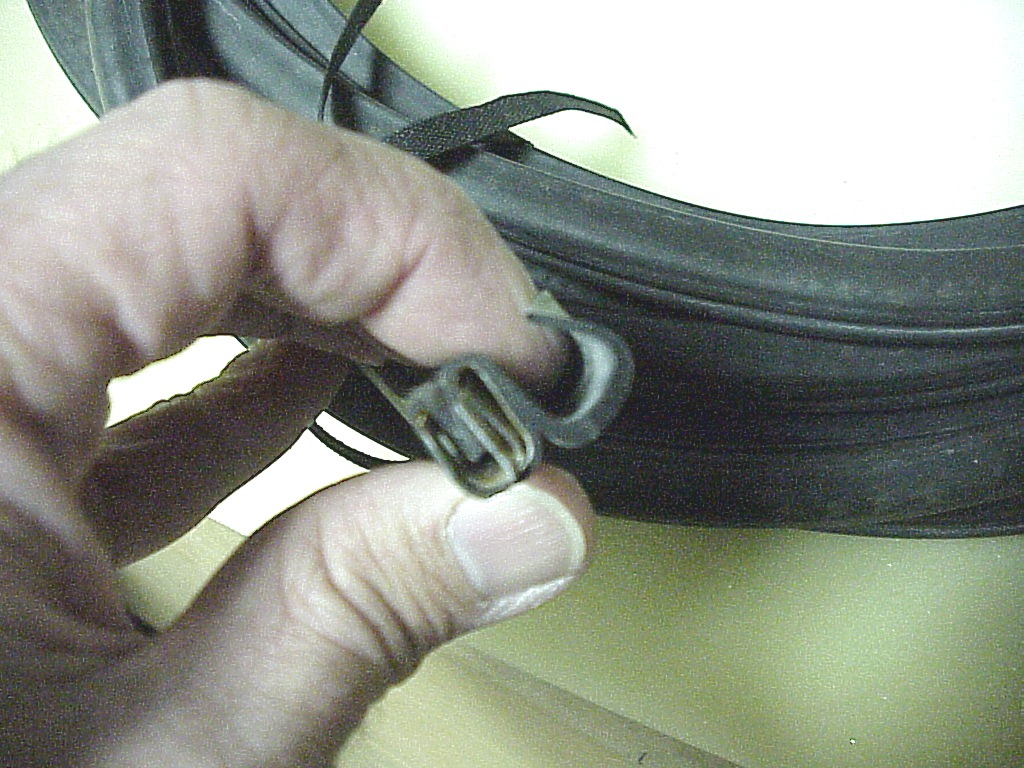

| Door seal (left) |
On body surrounding door |
242.44.057.0.0 (Note 1) |
1 |
25 |
7.6 |
B |
37-2 |
16315160 |
|
| Door seal
(right) |
On body surrounding door |
242.44.056.0.0 (Note 1) |
1 |
25 |
7.6 |
B |
37-2 |
16315170 |
|

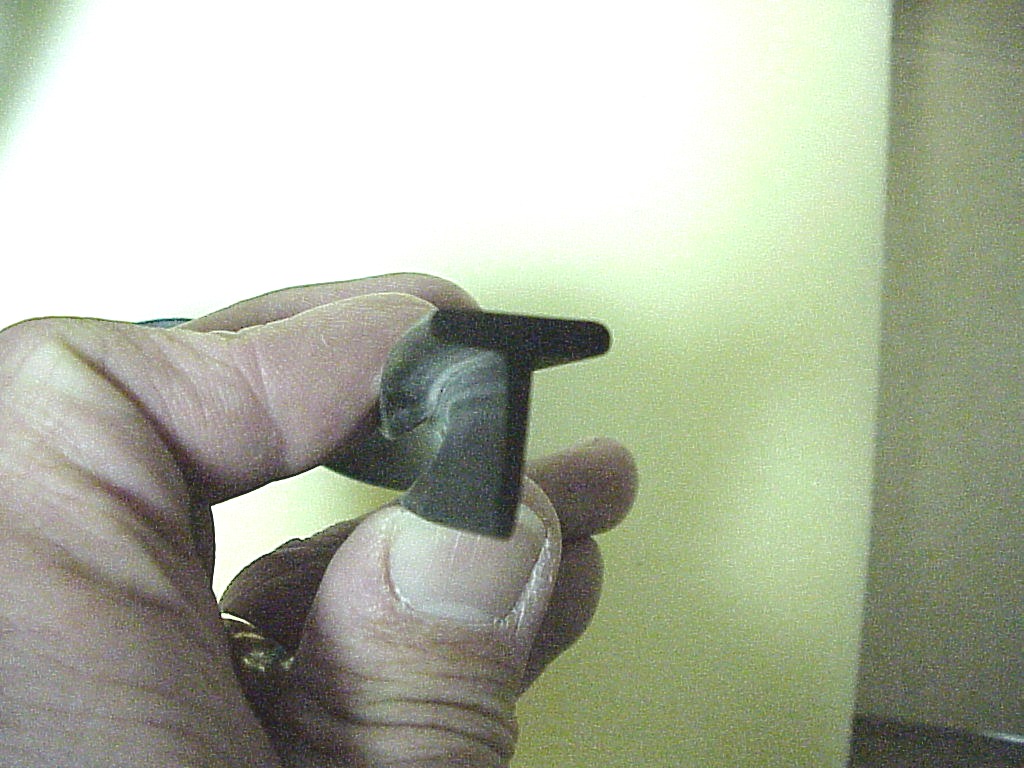

| Door
seal (T-shaped) |
In channel under door |
242.30.162.0.0 |
2 |
6 |
1.8 |
B |
14-12 |
16315171 |
|

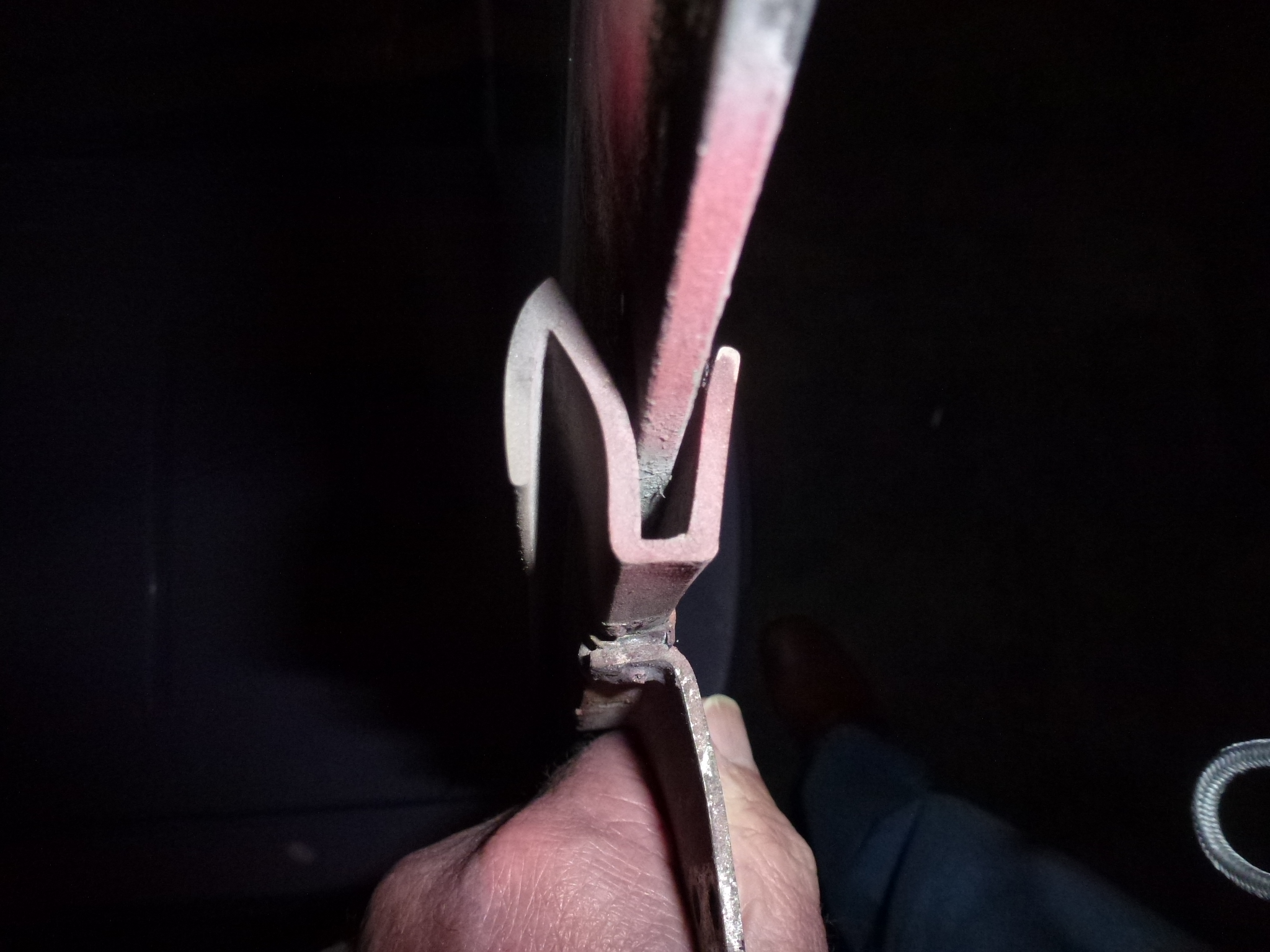

| Door
window base rubber |
Between glass and frame at
base |
242.30.512.0.0 |
2 |
4.5 |
1.4 |
B |
14-42 |
16315135 |
|

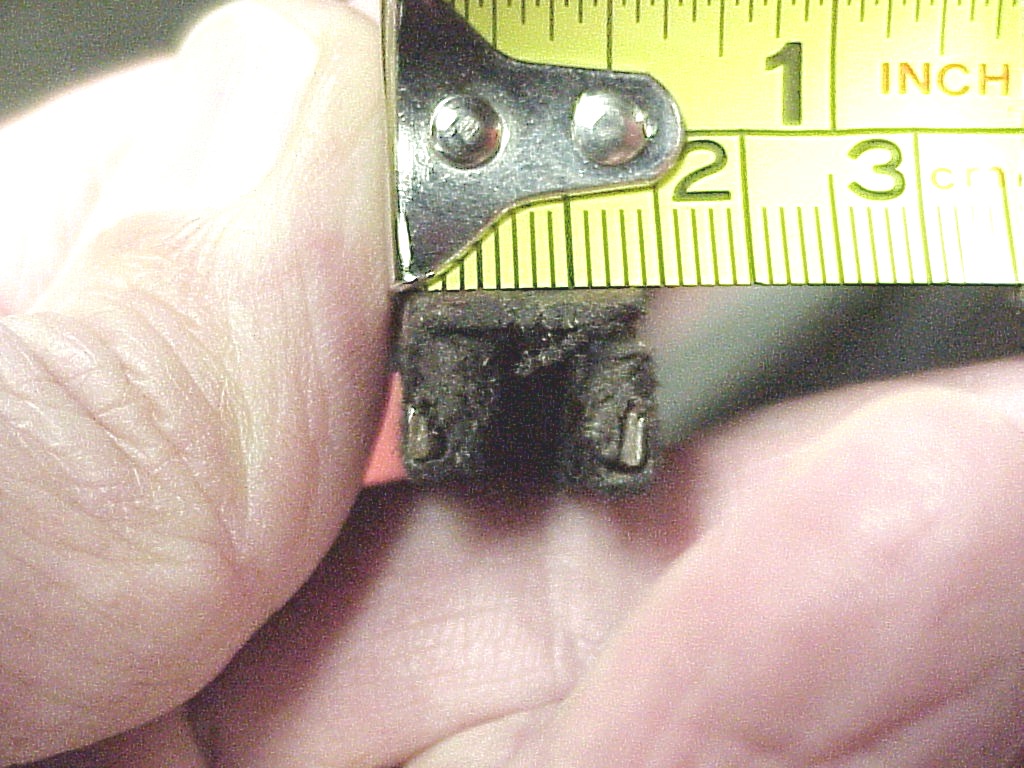

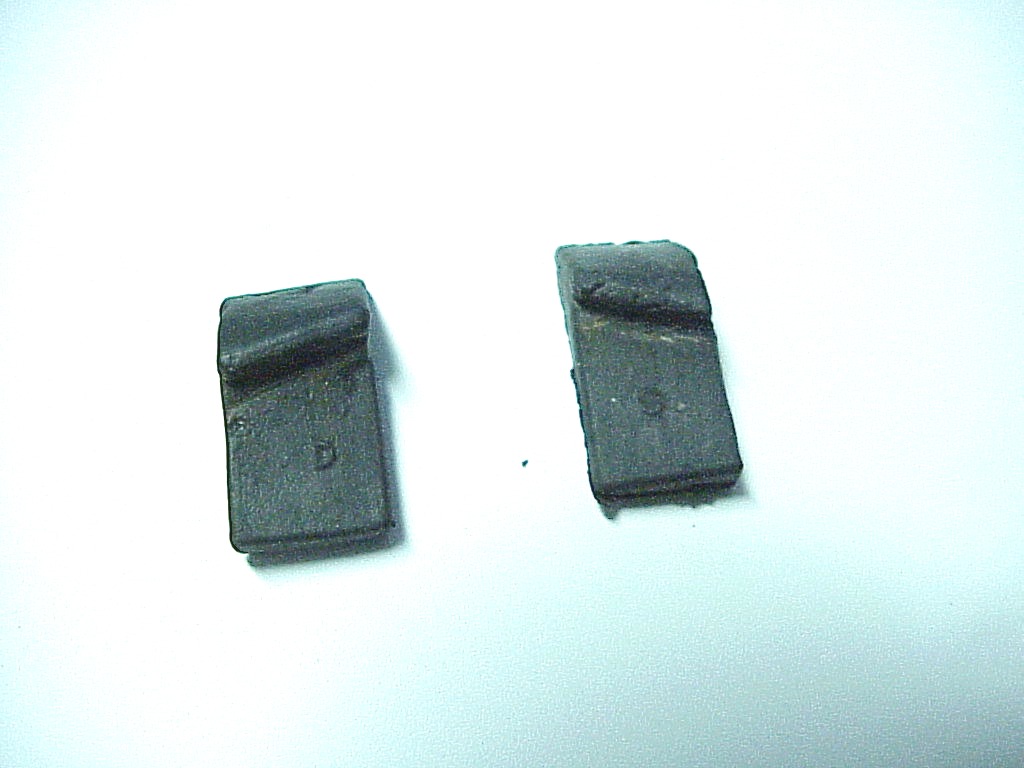

| Door window channel |
Channel at front of side
window |
242.30.354.0.0 (Note 2) |
2 |
4 |
1.2 |
B |
14-19 |
16315830 |
|
| Door window channel |
Channel at rear of side
window |
242.30.356.0.0 (Note 2) |
2 |
4 |
1.2 |
B |
14-20 |
16315830 |
|
| Door window channel |
Channel at top of side
window |
242.30.360.0.0 (Note 2) |
2 |
5 |
1.5 |
B |
14-22 |
16315830 |
|

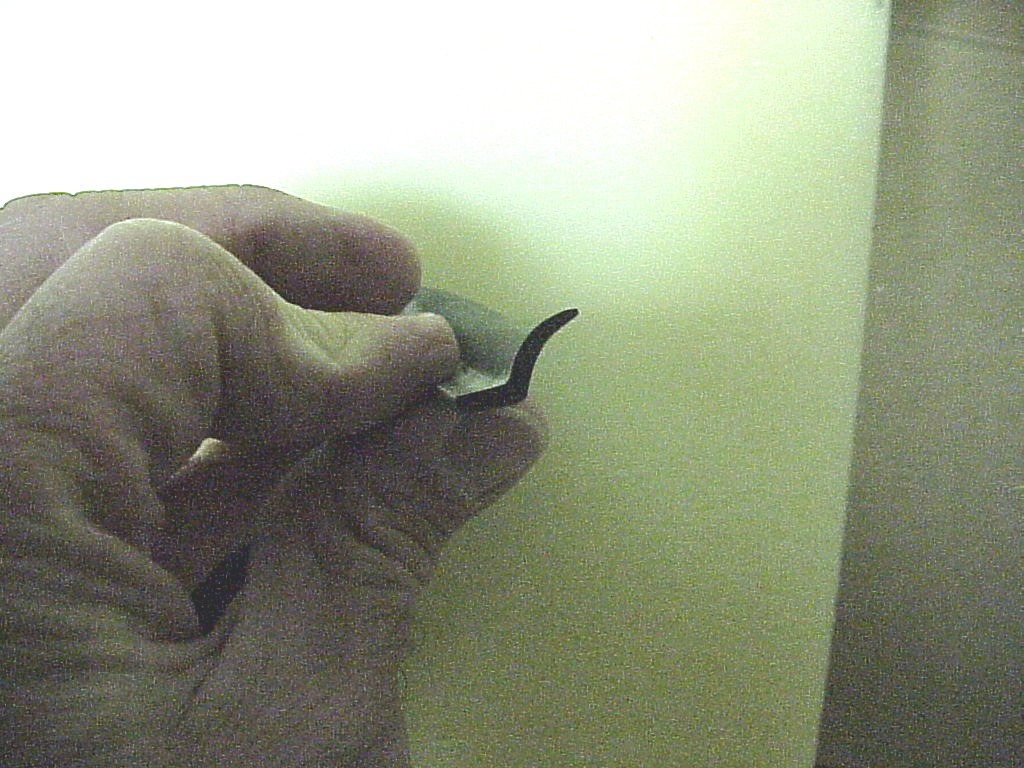

| Door window scraper
seal |
Outside of glass on door
(Series II) |
? |
2 |
4.25 |
1.3 |
B |
|
16315311 |
|
| Door window scraper
seal |
Outside of glass on door
(Series I) |
? |
2 |
4.25 |
1.3 |
B |
|
16315310 |
|

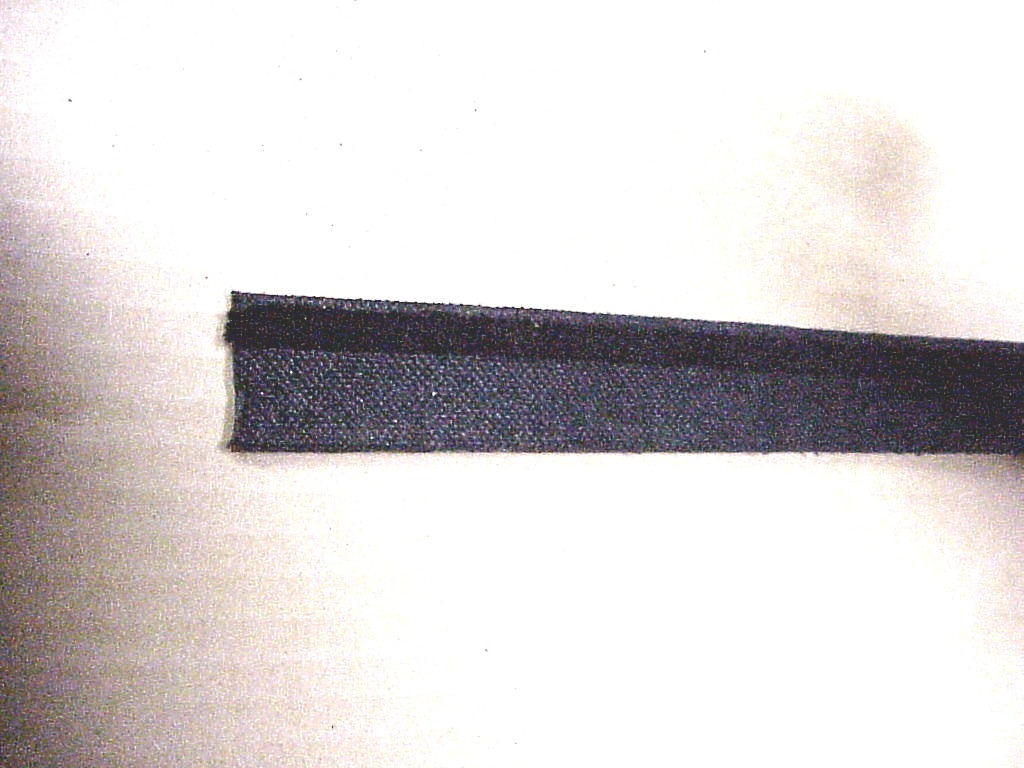

| Door window scrub |
Inside of glass on door |
? |
2 |
4.25 |
1.3 |
B |
|
16315892 |
|
| Engine compartment
grommets |
On firewall and other
locations |
? |
10 |
|
|
B |
|
16315182 |
|
| Fan motor
grommets |
On studs holding fan motor
to body (Qty per motor) |
Part of 547.133.42 (Note 7) |
4 |
|
|
B |
39-15 |
|
|

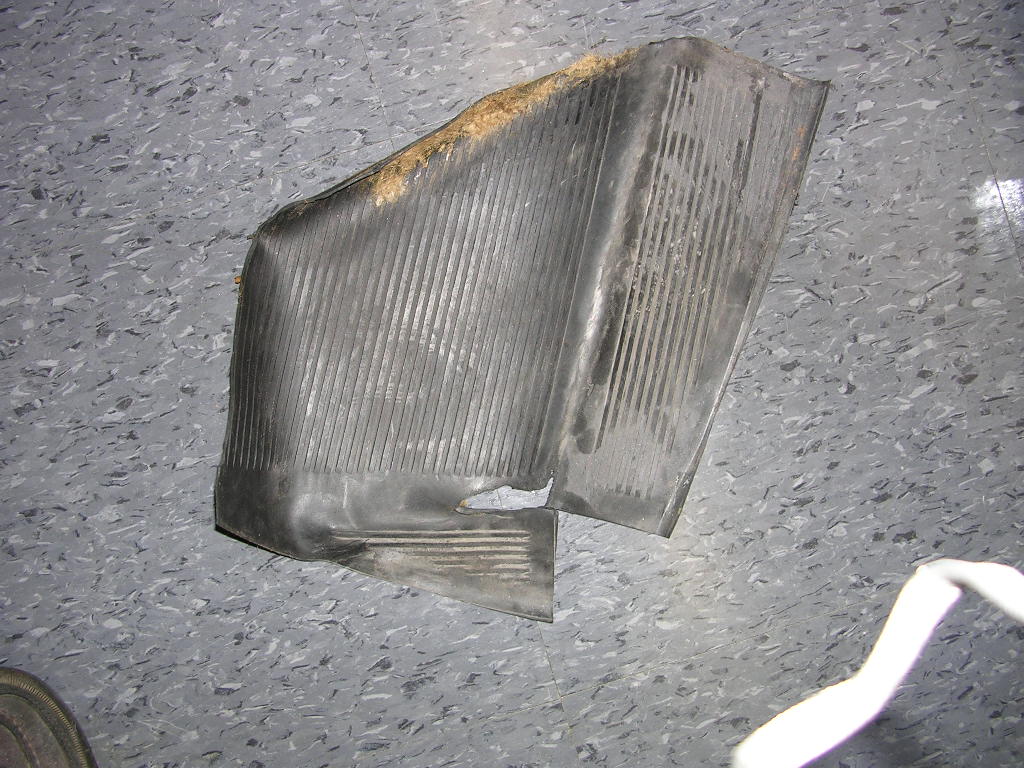

| Foot support
rubber |
On foot support for
driver's left foot |
242.62.860.0.0 |
1 |
|
|
B |
39-18 |
Part of
16315000 |
|
| Front shock centering
rings |
Inside shock tower |
65135 |
4 |
|
|
2 |
26-13 |
16315735 |
|

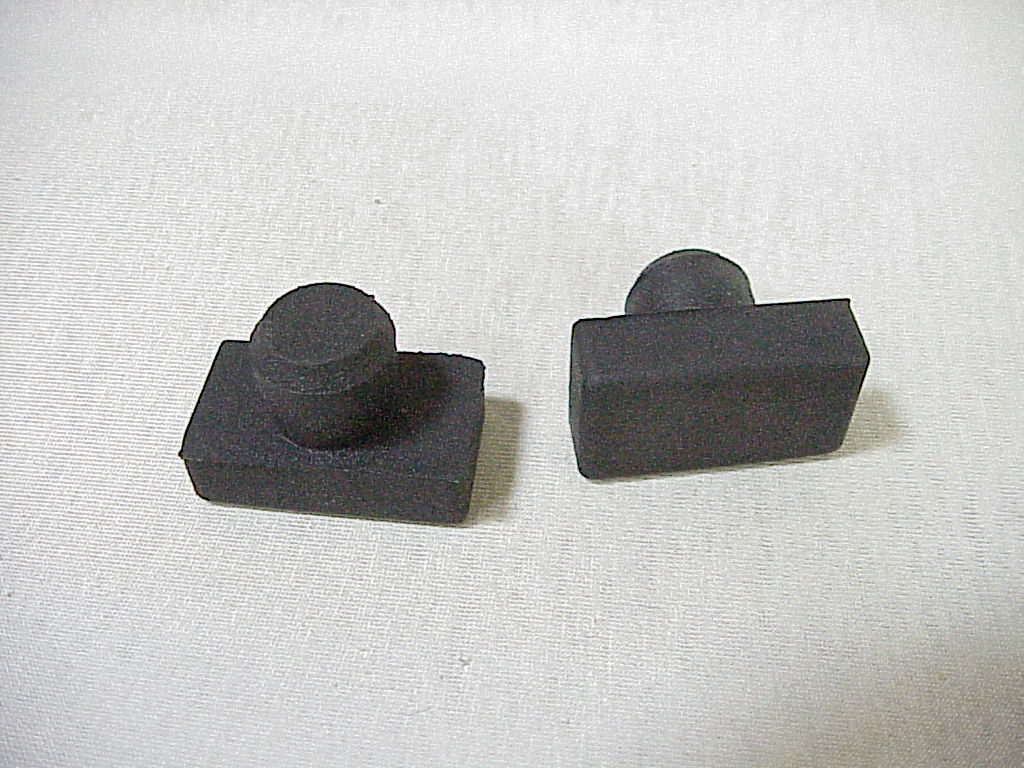

| Front
suspension rubber stop |
On lower part of front
suspension |
64816 |
2 |
|
|
B |
26-10 |
16315423 |
|

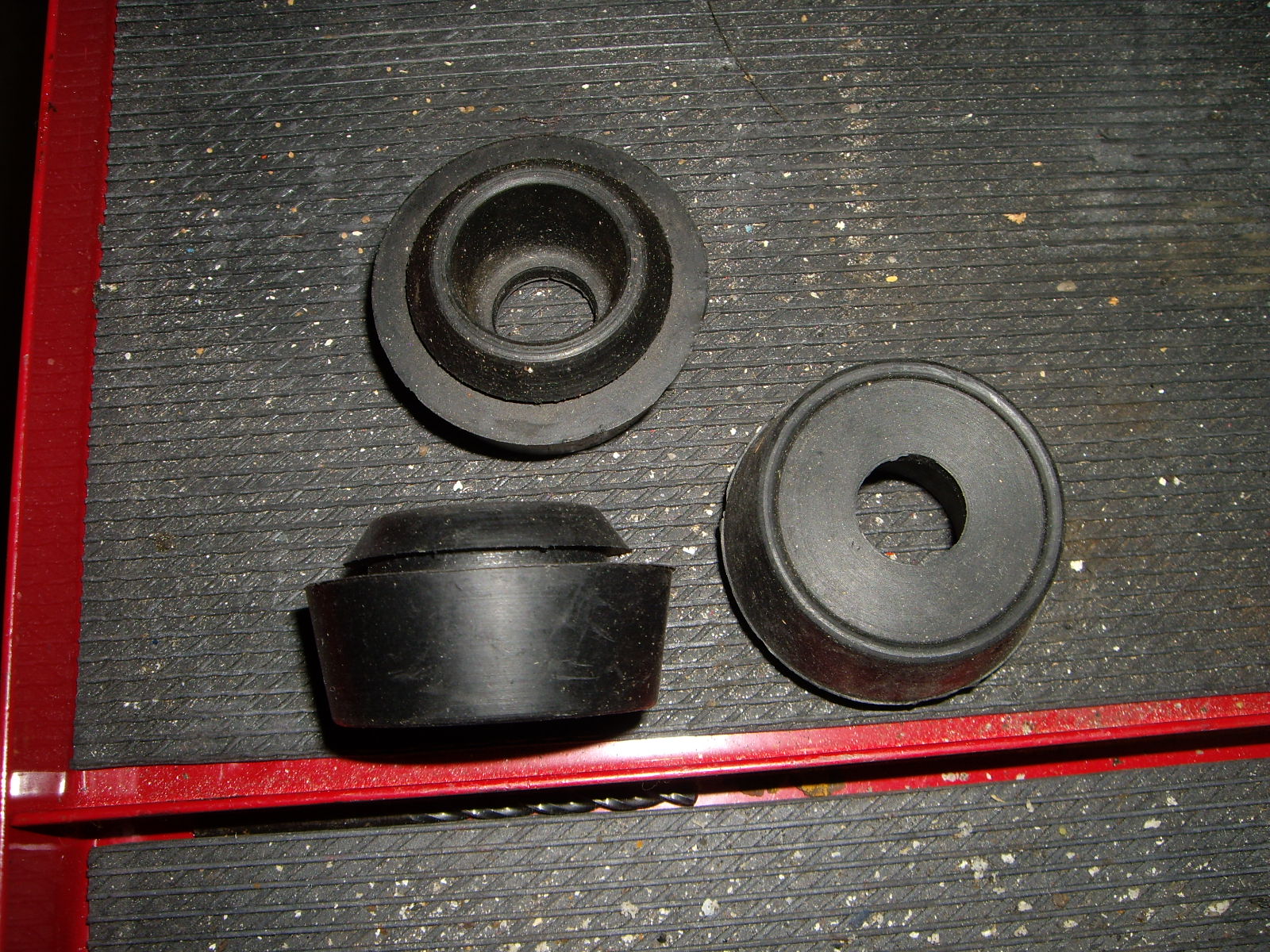

| Front suspension upper
stop |
Above front suspension |
61429 |
2 |
|
|
2 |
25-27 |
16315740 |
|

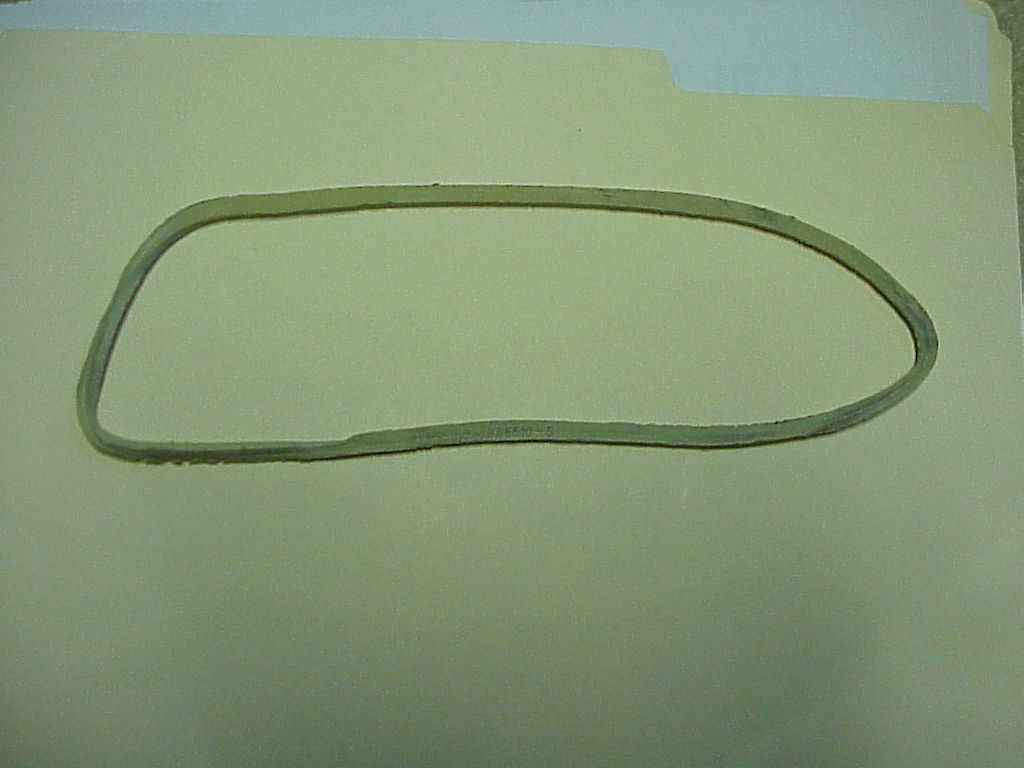

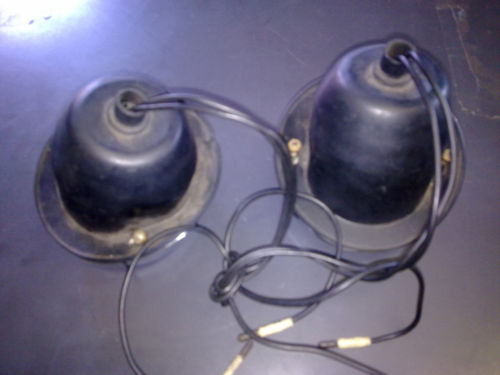

| Front
turn signal gasket |
Between turn signal and car
body (Series I) |
Part of 234.82.170.0.0 |
2 |
|
|
B |
59-9 |
16315252 |
|
| Front
turn signal gasket |
Between turn signal and car
body (Series II) |
Part of 234.82.170.0.2 |
2 |
|
|
B |
61/1-4 |
16315259 |
|
| Front
turn signal lens gasket |
Between lens and turn
signal body white rubber (Series II) |
Part of 234.82.170.0.2 |
2 |
|
|
B |
61/1-4 |
16315258 |
|

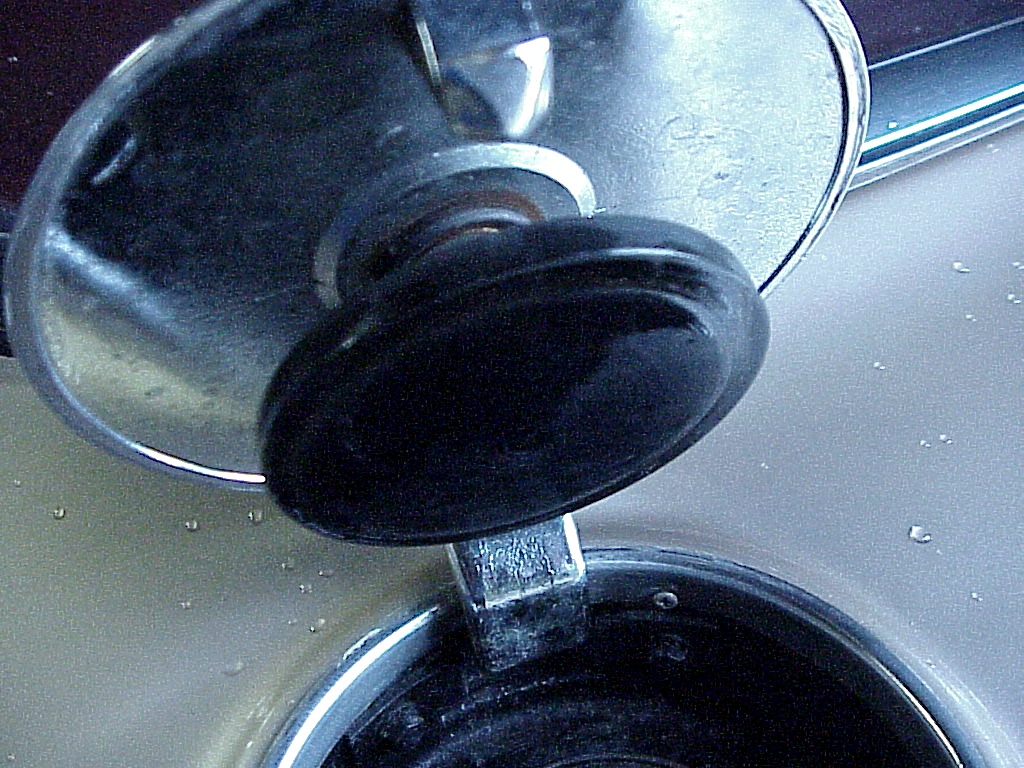

| Fuel cap gasket |
Inside cap (Series I) |
Part of 820486 |
1 |
|
|
1 |
40-11 |
16315237 |
|

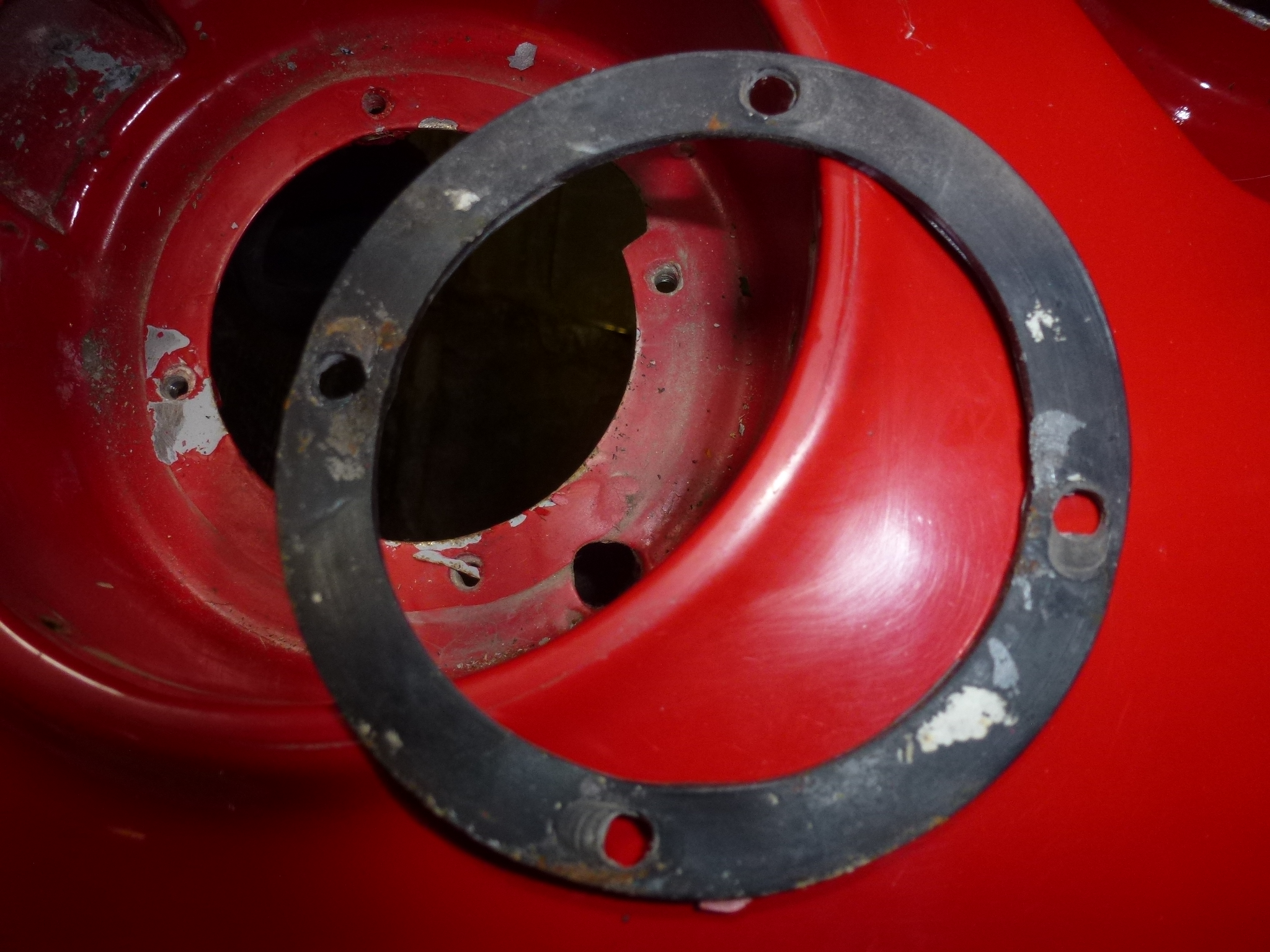

| Fuel
filler gasket |
Under fuel filler pipe
where bolts to body (Series II) |
242.20.600.0.0 |
1 |
|
|
2 |
8/2-9 |
|
|
| Fuel filler hose |
From filler pipe to fuel
tank (Series I) |
920294 |
1 |
|
|
1 |
40-7 |
|
|
| Fuel filler hose |
From filler pipe to fuel
tank (Series II) |
94999 |
1 |
|
|
2 |
37-6 |
|
|
| Fuel filter (FISPA)
gasket |
Top of fuel filter bowl |
Part of 34341 |
1 |
|
|
1 |
4017 |
16315244 |
|
| Fuel filter (FISPA)
gasket |
Top of fuel filter bowl |
Part of 34341 |
1 |
|
|
2 |
37/18 |
16315244 |
|

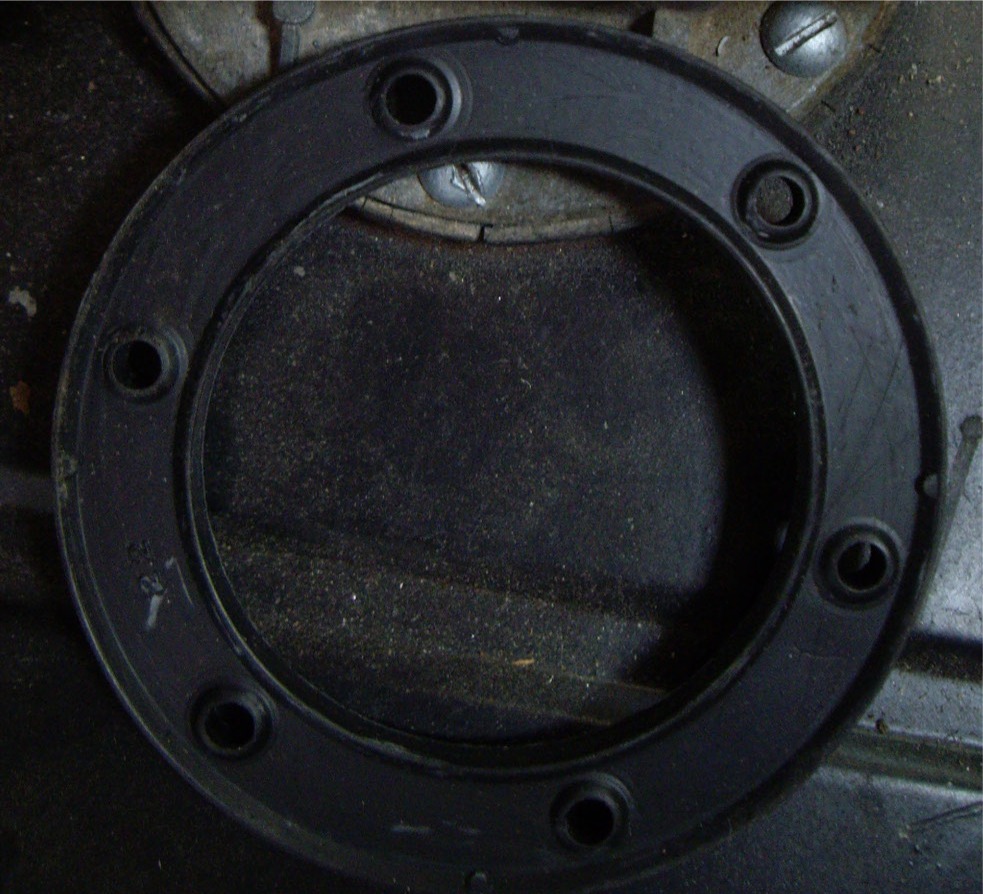

| Fuel
gauge sender gasket |
Under fuel gauge sender
(Series I) |
82929 |
1 |
|
|
1 |
40-2 |
|
|
| Fuel
gauge sender gasket |
Under fuel gauge sender
(Series II) |
82925 |
1 |
|
|
2 |
37-2 |
|
|
| Fuel lid
gasket |
Under fuel lid to seal
filler pipe when closed (Series II) |
242.20.596.0.0 |
1 |
|
|
2 |
8/2-14 |
|
|

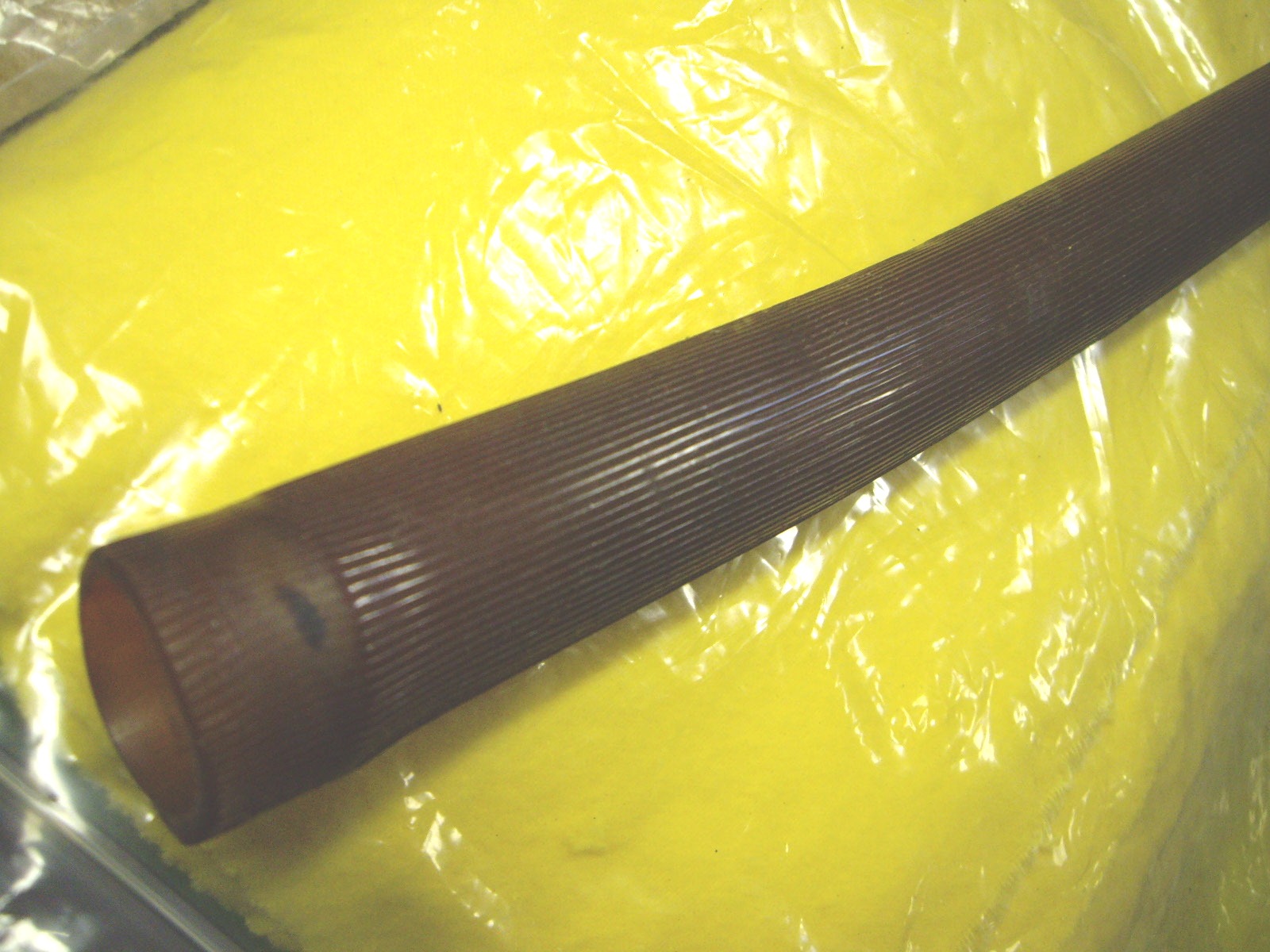

| Fuel line
protector |
Around gas line from fuel
tank to filter |
34403 |
1 |
|
|
2 |
37-33 |
|
|

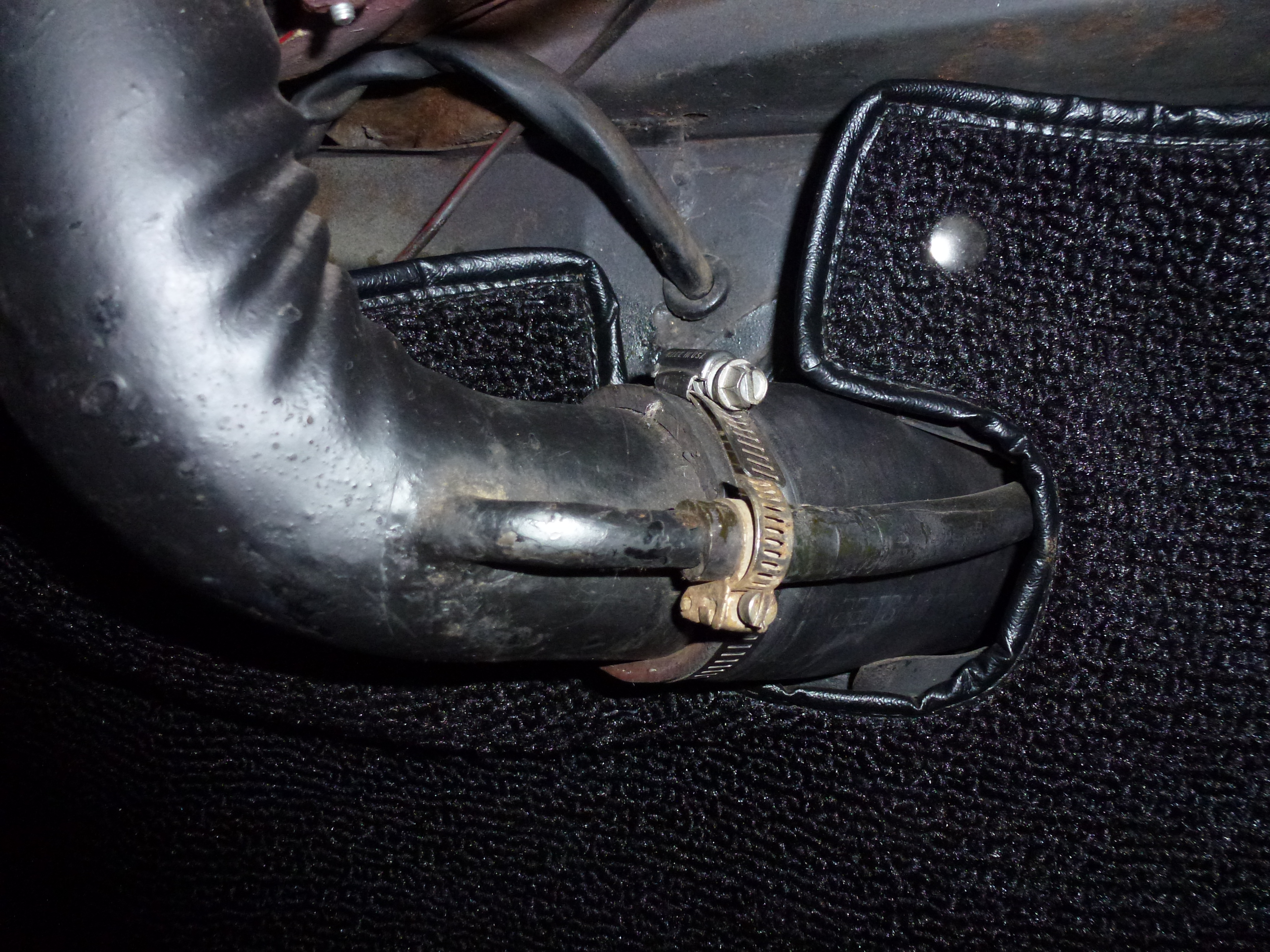

| Fuel overflow hose |
From filler pipe to under
car (Series I) |
94907 |
1 |
|
|
2 |
37-8 |
|
|
| Fuel
overflow hose |
From filler pipe to under
car (Series II) |
94907 |
1 |
|
|
2 |
37-8 |
|
|

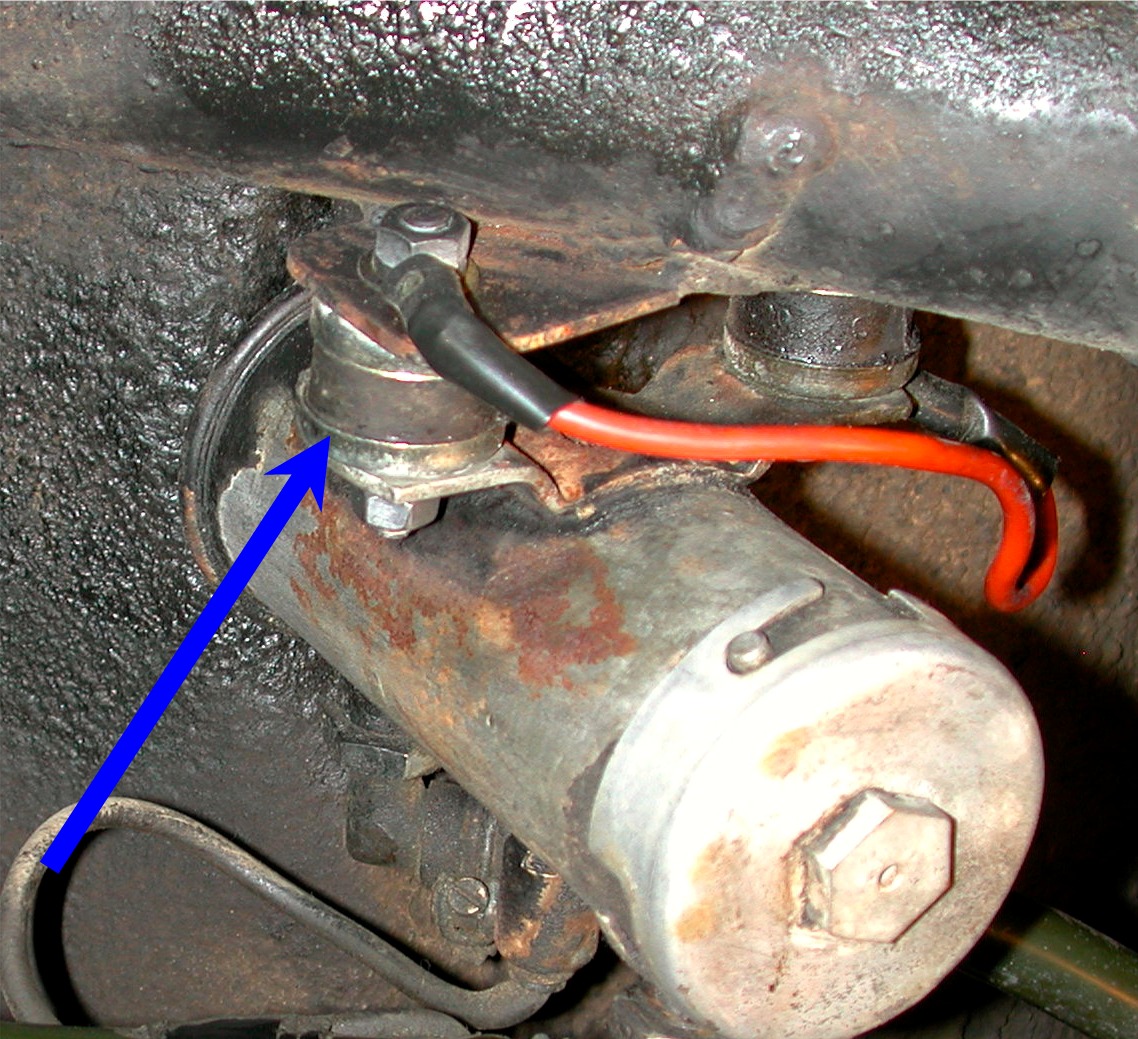

| Fuel pump
mount |
Mounts for Bendix fuel pump
(late Series II) |
34341 |
2 |
|
|
L |
8-26 |
|
|

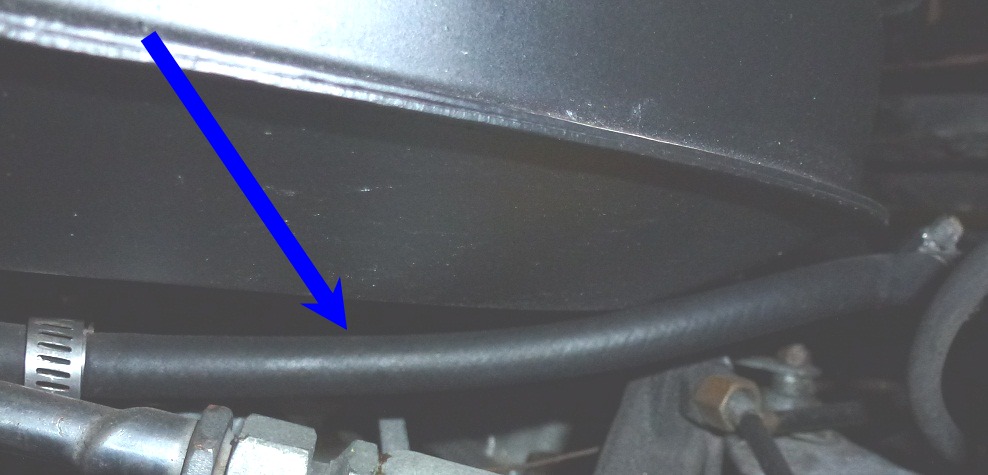

| Fuel
return hose |
From fuel log to return
line (Series II) |
95018 |
1 |
|
|
2 |
8-5 |
|
|

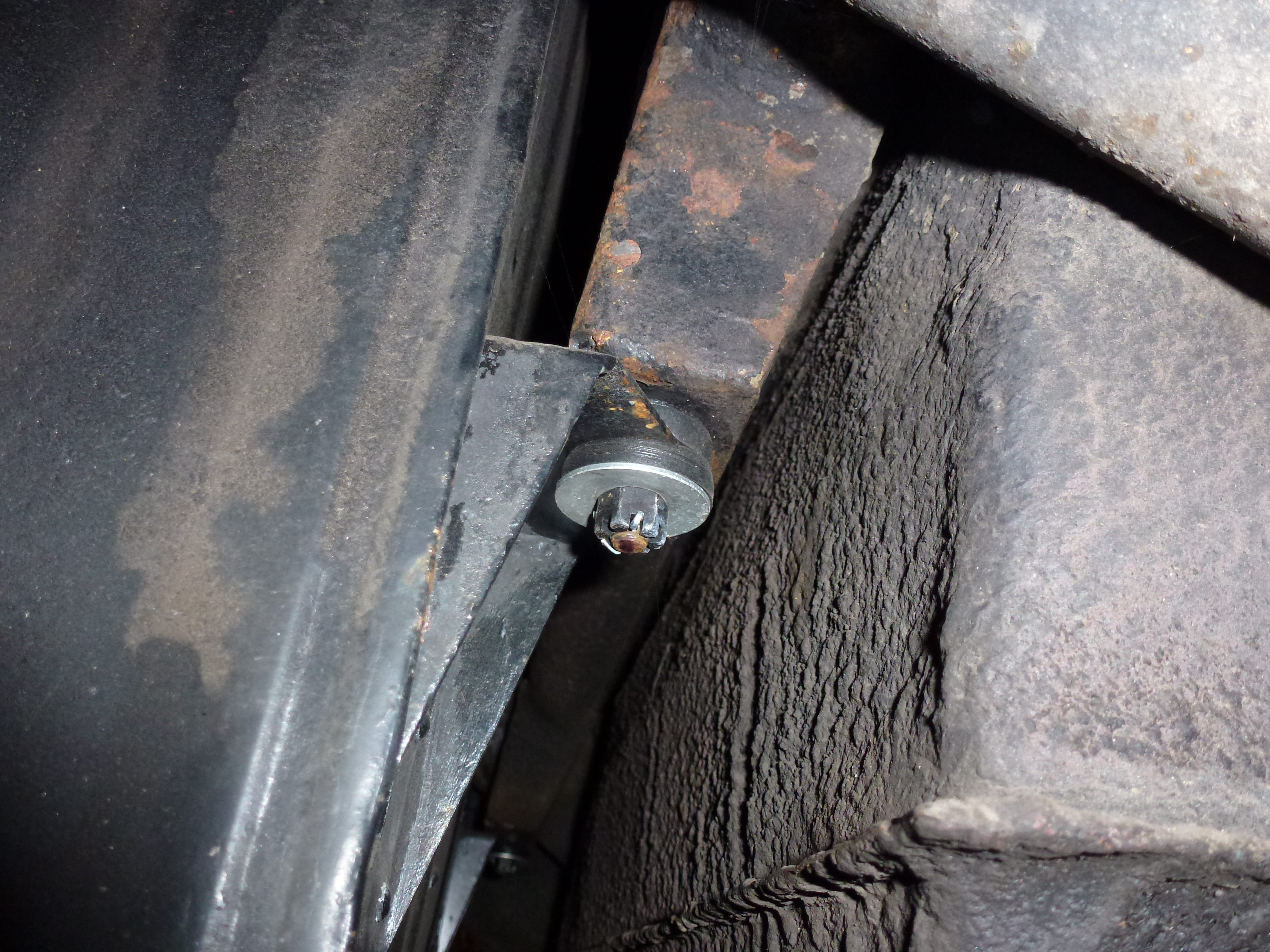

| Fuel tank
washers |
Above and below mounting
flange on fuel tank |
823021 |
8 |
|
|
2 |
37-14 |
|
|
| Grille
rubber |
Surrounds grille at front |
242.38.800.0.0 |
1 |
9 |
2.7 |
B |
29-2 |
16315388 |
|
| Handbrake lever pad |
Under handbrake on floor |
69530 |
1 |
|
|
2 |
31-11 |
16315422 |
|

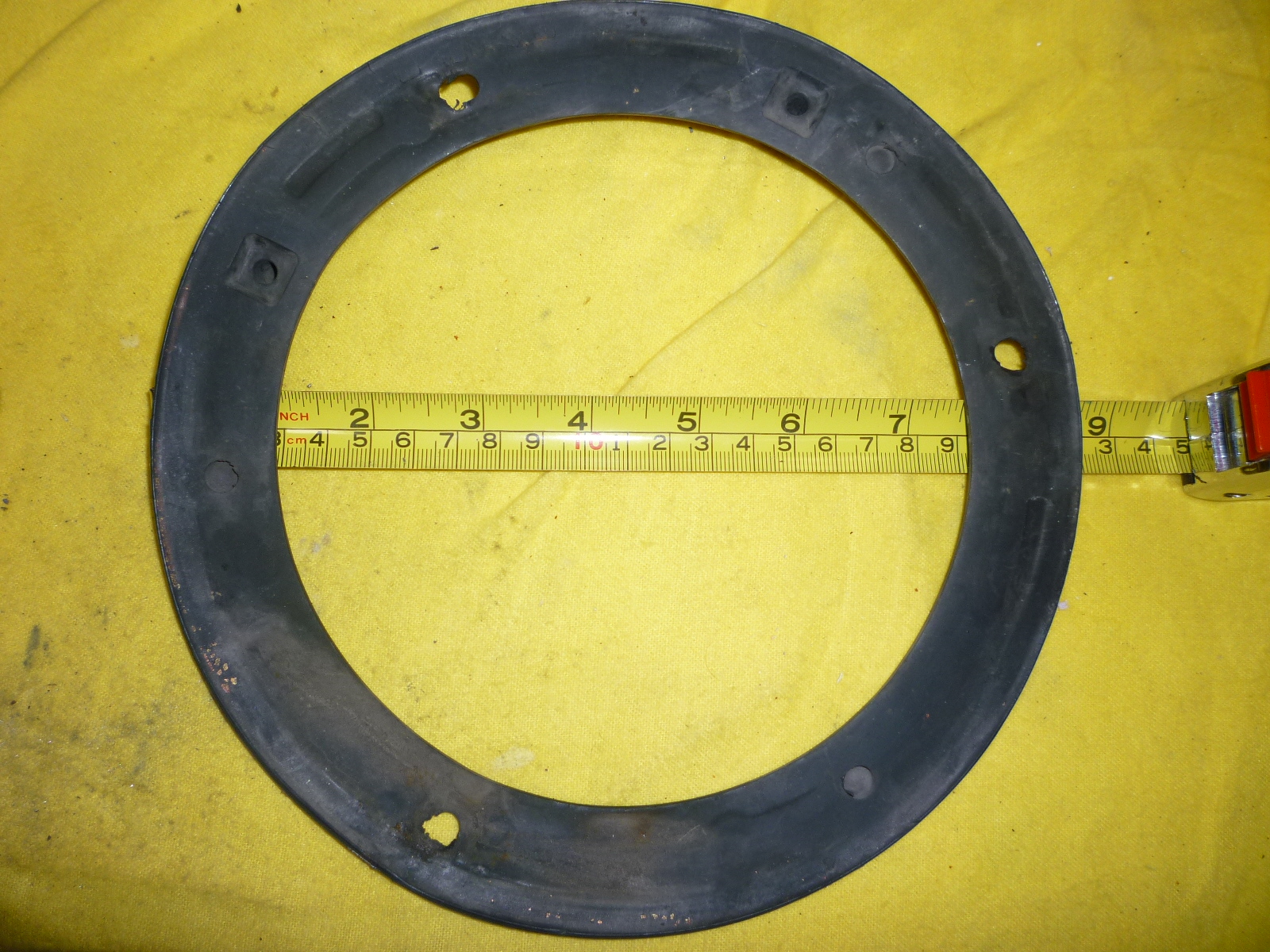

| Headlight bucket rubber |
Between headlight bucket
and body (Series I) |
242.82.100.0.0 |
2 |
|
|
B |
59-7 |
16315251 |
|
| Headlight bucket rubber |
Between headlight bucket
and body (Series II/(Marchal) |
242.82.100.1.0 |
2 |
|
|
B |
61/1-3 |
16315250 |
|
| Headlight bucket
rubber |
Between headlight bucket
and body ((Series II/Carello) |
242.82.100.2.0 |
2 |
|
|
B |
61/1-3 |
16315250 |
|
| Headlight
trim rubber |
Between headlight trim and
body (Series I) |
241.74.590.0.0 (Note 3) |
2 |
6 |
1.8 |
B |
59-8 |
|
|

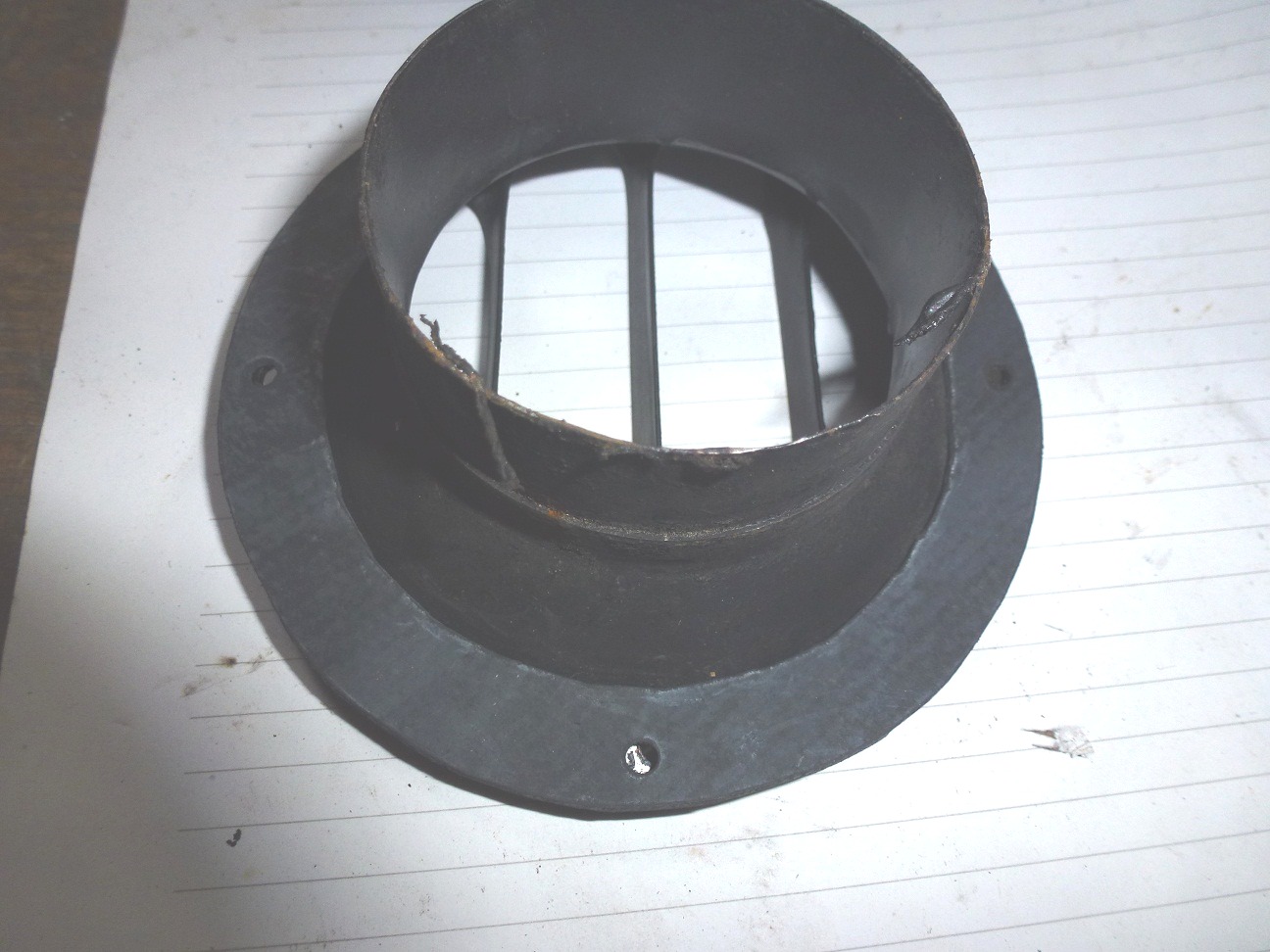

| Heat
outlet gasket |
Between heat outlet grille
and kick panel |
242.86.626.0.0 |
2 |
|
|
B |
66-25 |
|
|

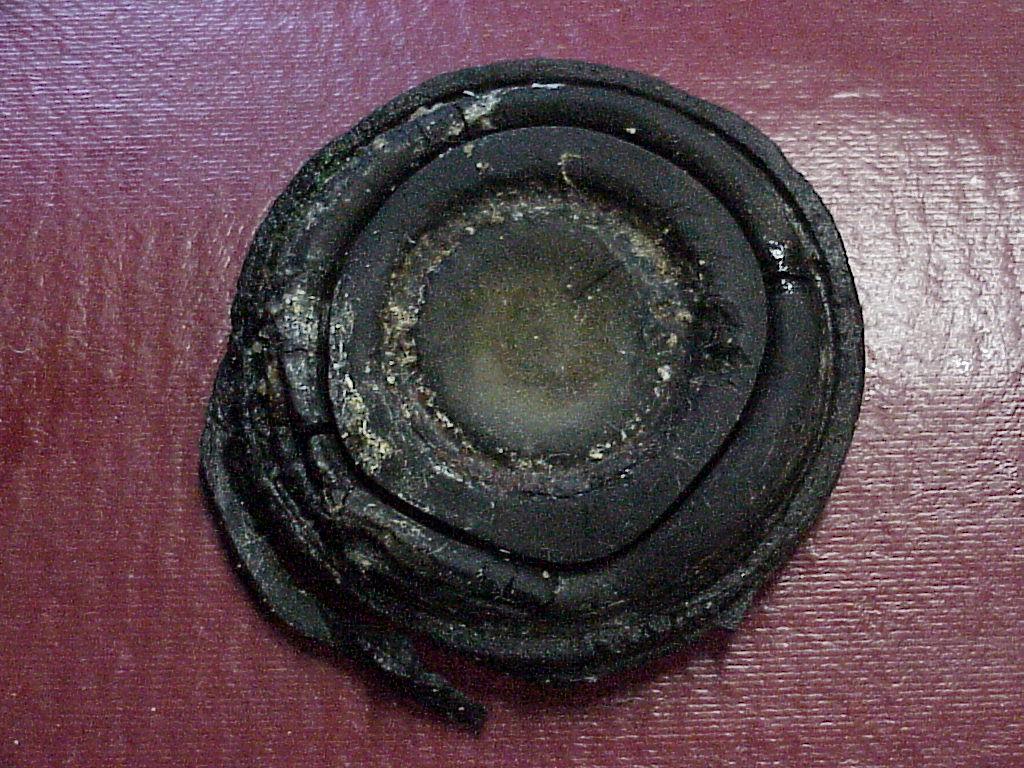

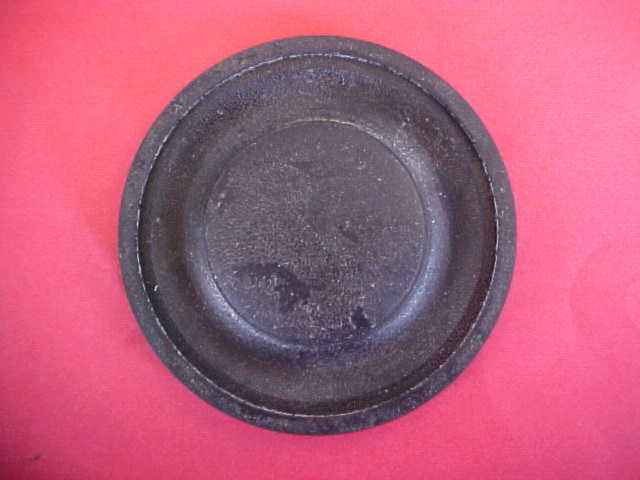

| Heater
valve rubber (cable operated) |
Inside of cable heater
valve (4 mount engine) |
95403104 |
1 |
|
|
2 |
36-14 |
16315380 |
|
| Heater valve
rubber (cable operated) |
Inside of cable heater
valve (2 mount engine) |
95403104 |
1 |
|
|
L |
36-13 |
16315380 |
|

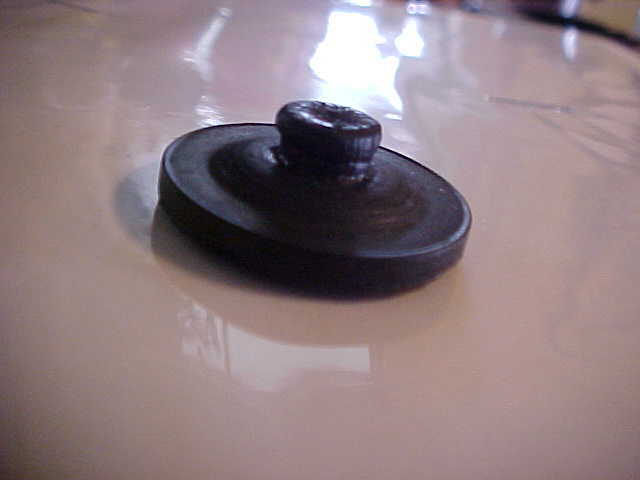

| Heater
valve rubber (manual) |
Inside of manual heater
valve |
95403102 |
2 |
|
|
2 |
36-14 |
|
|

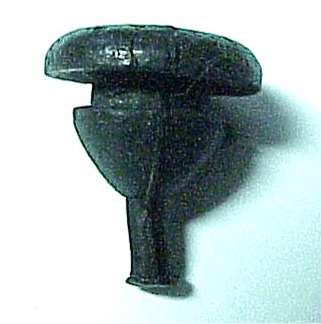

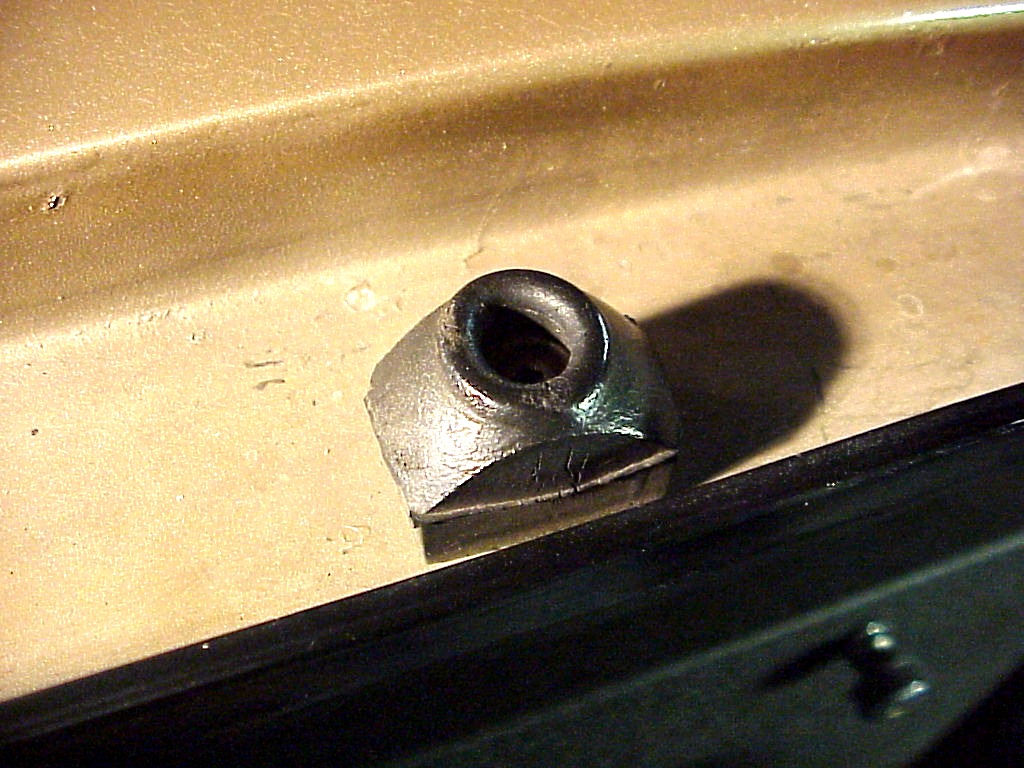

| Hood bumper |
In channel around engine
opening |
239.28.194.0.0 |
8 |
|
|
B |
9-5 |
16315181 |
|
| Hood
bumper |
Top of spring loaded hood
bumpers |
Part of 242.28.538.0.2 |
2 |
|
|
B |
9-27 |
16315740 |
|
| Hood bumper
pad |
Under spring loaded hood
bumper (same as light sw pads) |
Part of 242.28.538.0.2 |
2 |
|
|
B |
9-27 |
|
|

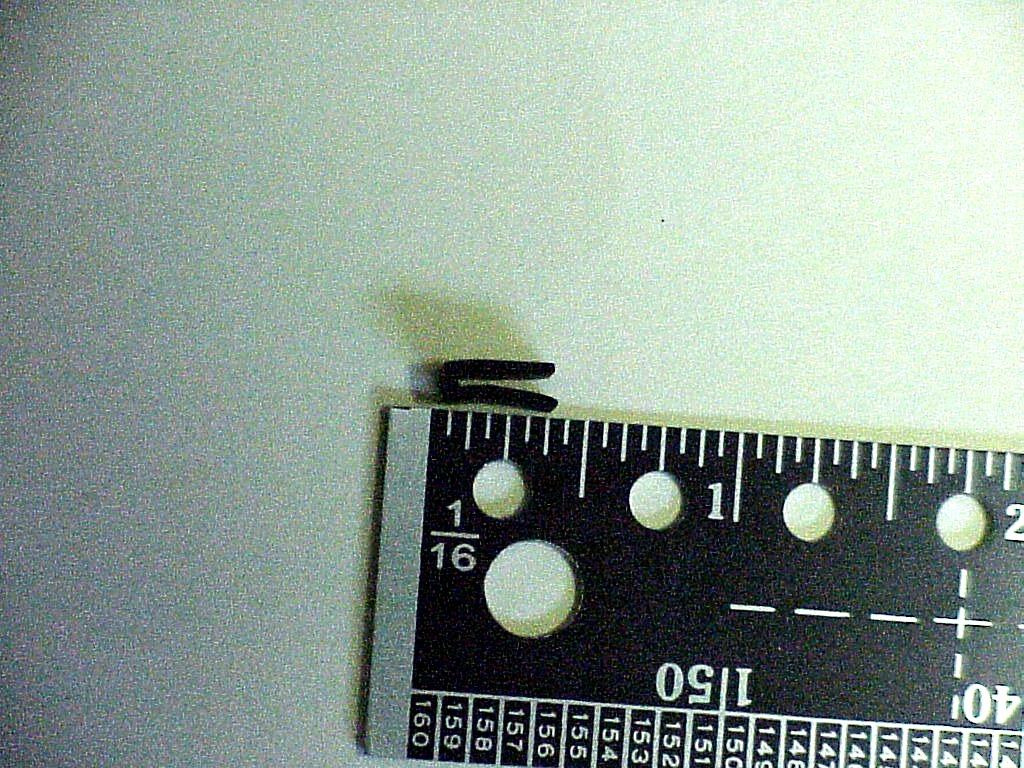

| Hood edge
trim (PVC) |
On metal edge of opening
for hood (4 speed) |
242.28.198.0.0 (Note 4) |
1 |
11 |
3.4 |
B |
9-6 |
16315180 (note
10) |
|
| Hood edge
trim (PVC) |
On metal edge of opening
for hood (5 speed) |
242.28.198.0.0 (Note 4a) |
1 |
12 |
3.7 |
B |
9-6 |
16315180 (note
10) |
|
| Hood
latch gasket |
On firewall where hood
release is |
242.28.412.0.0 |
1 |
|
|
B |
9-11 |
|
|

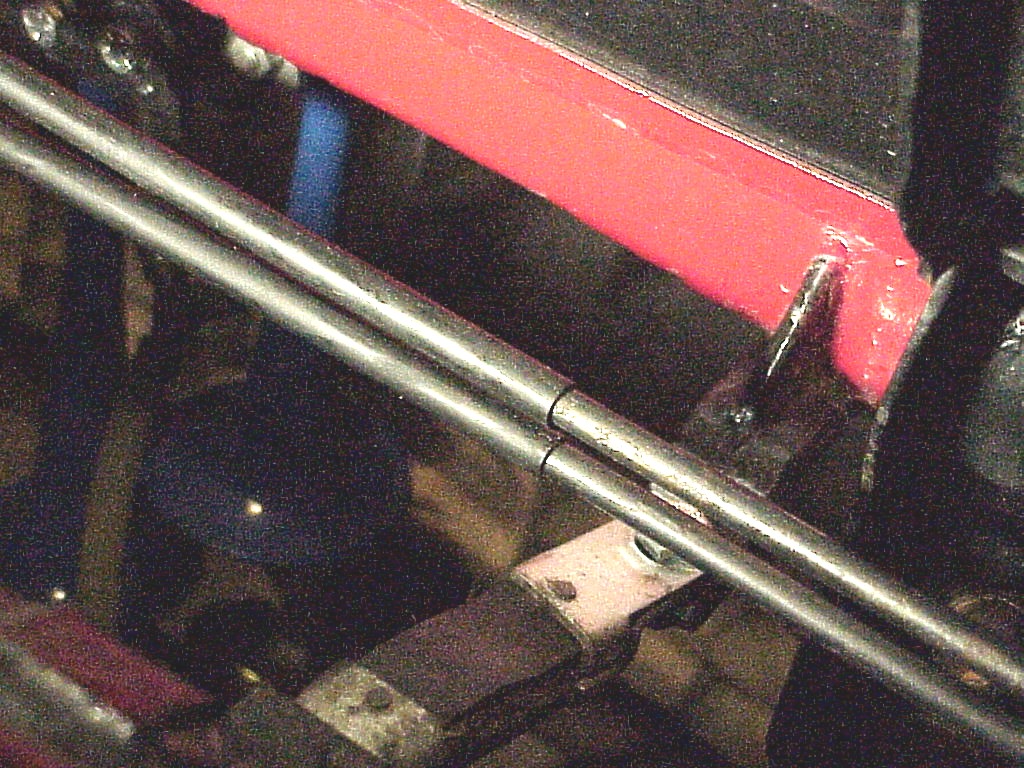

| Hood spring
rubber |
On center of hood torsion
bars (5 speed) |
Part of 242.28.586/7.0.0 |
2 |
|
|
B |
10/1-23 |
|
|

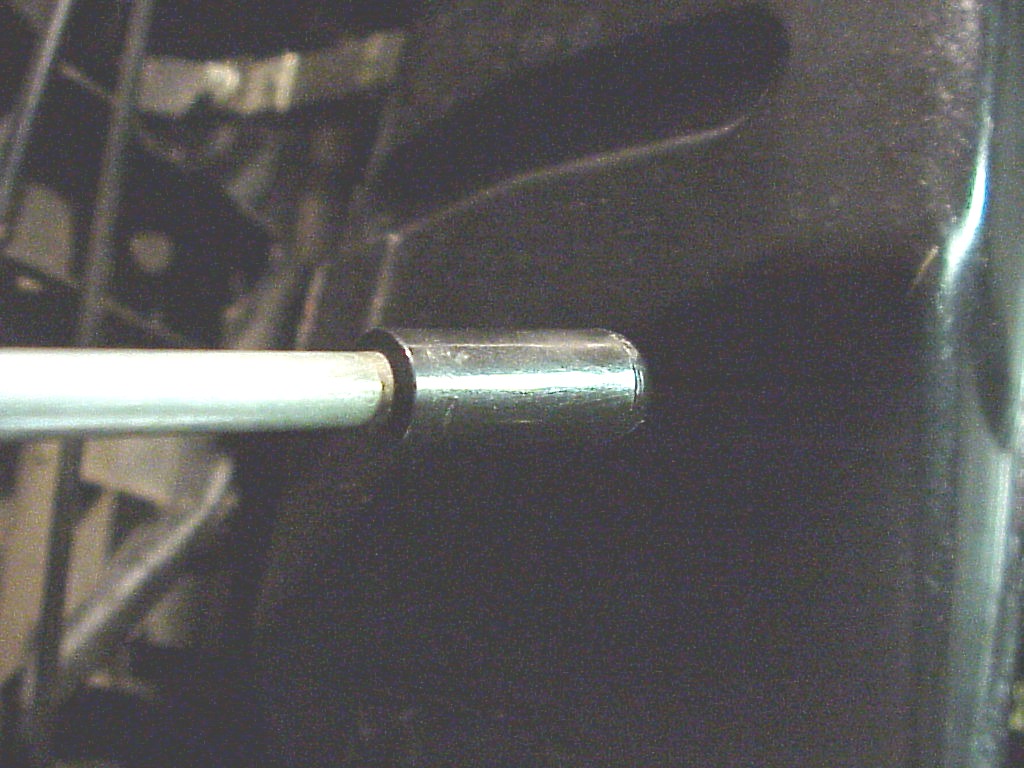

| Hood
strut bumper |
At end of hood strut |
241.28.554.0.0 |
1 |
|
|
B |
9-18 |
|
|

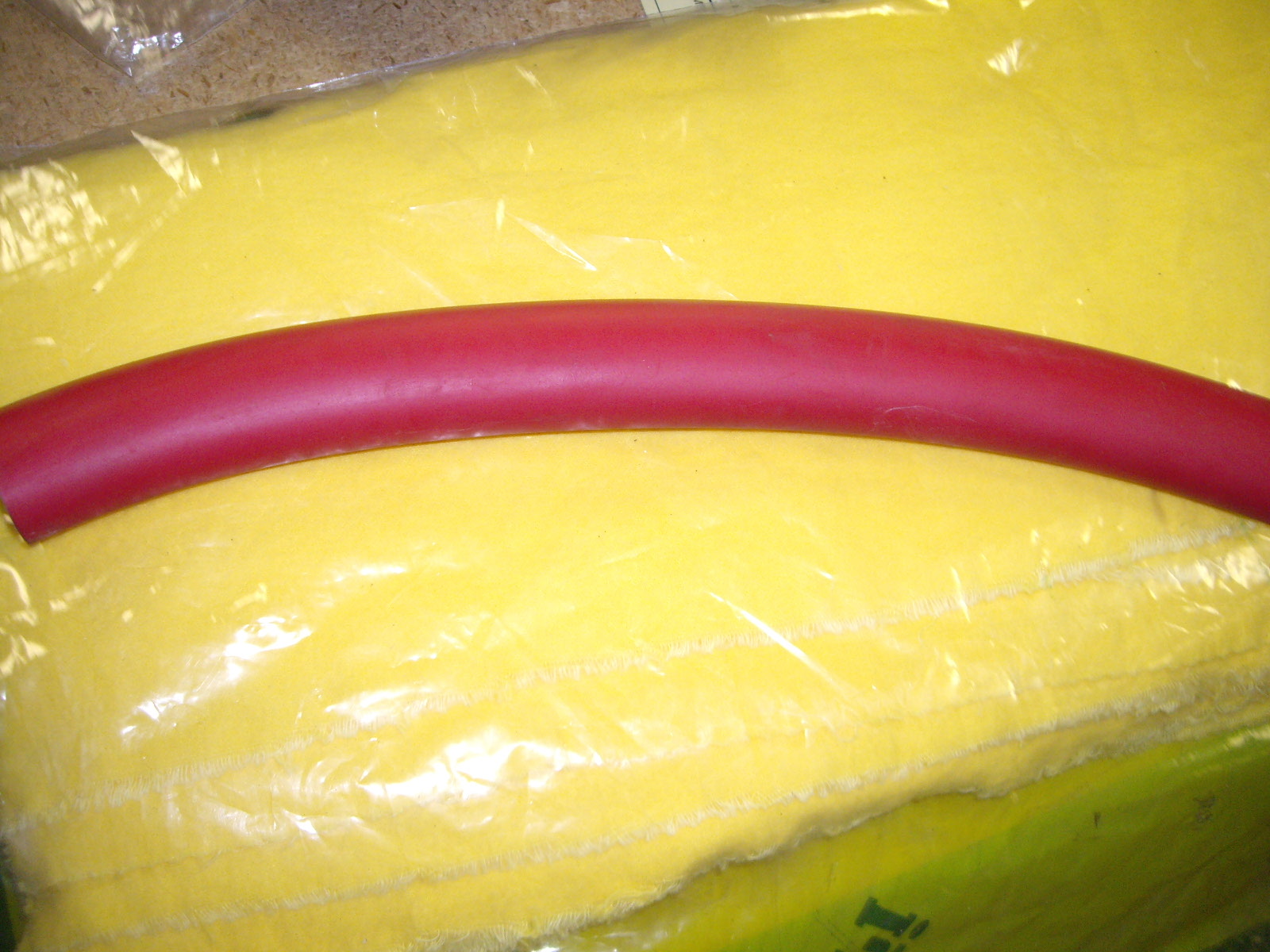

| Horn red tubing |
From compressor to horns |
? |
1 |
6 |
1.8 |
|
|
16315399 |
|

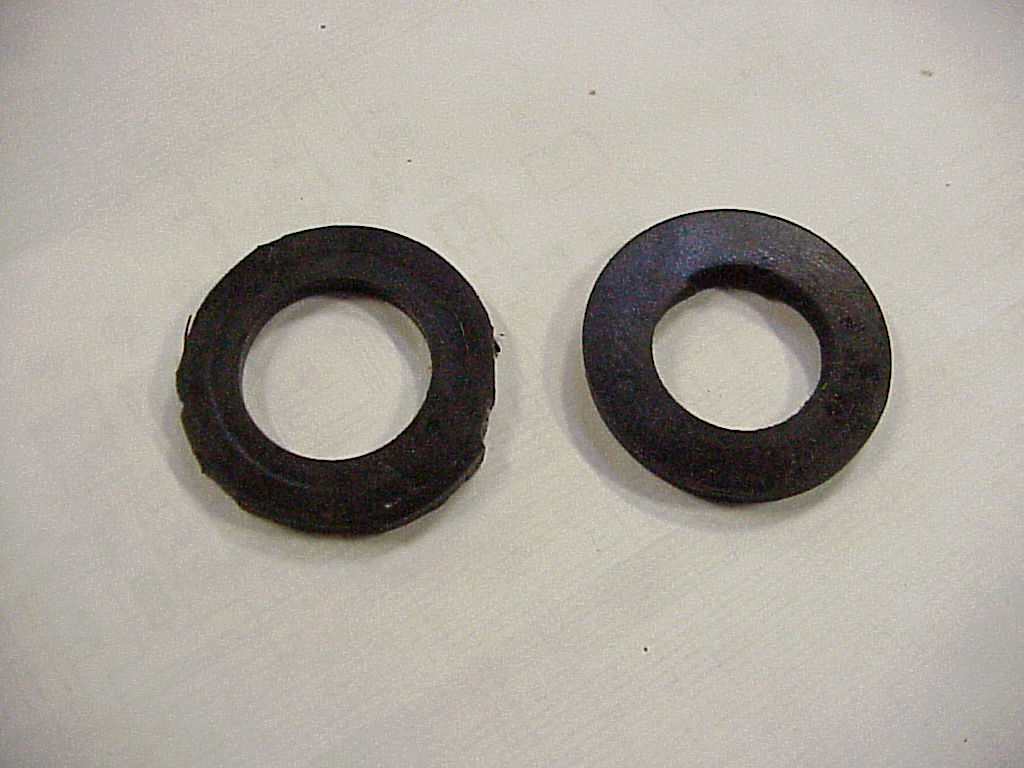

| Idler arm
rubber seal |
Around shaft in idler arm |
76321 |
1 |
|
|
B |
35-15 |
|
|

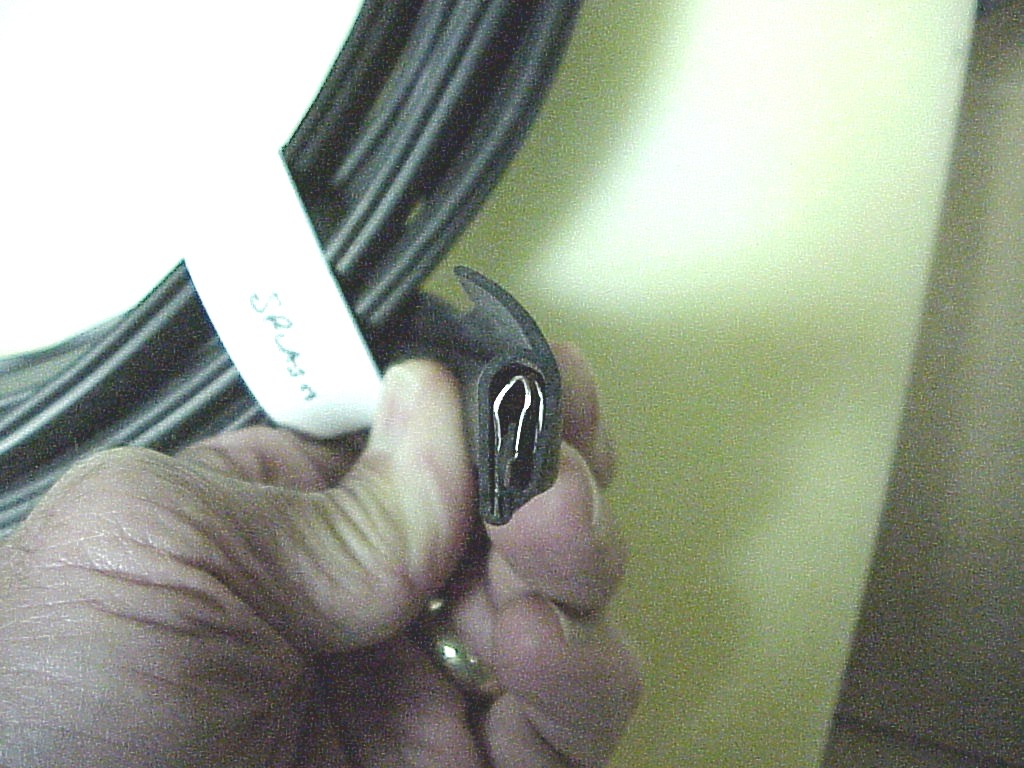

| Inner
fender panel seal |
On edges of inner fender
(splash) panels |
Part of 242.18.82x.0.7 |
1 |
14 |
4.3 |
B |
6-10/11 |
16315300 |
|
| Leaf spring
rubber |
In clamps of rear leaf
spring |
Part of 600499 |
8 |
|
|
1 |
24-15 |
16315730 |
|

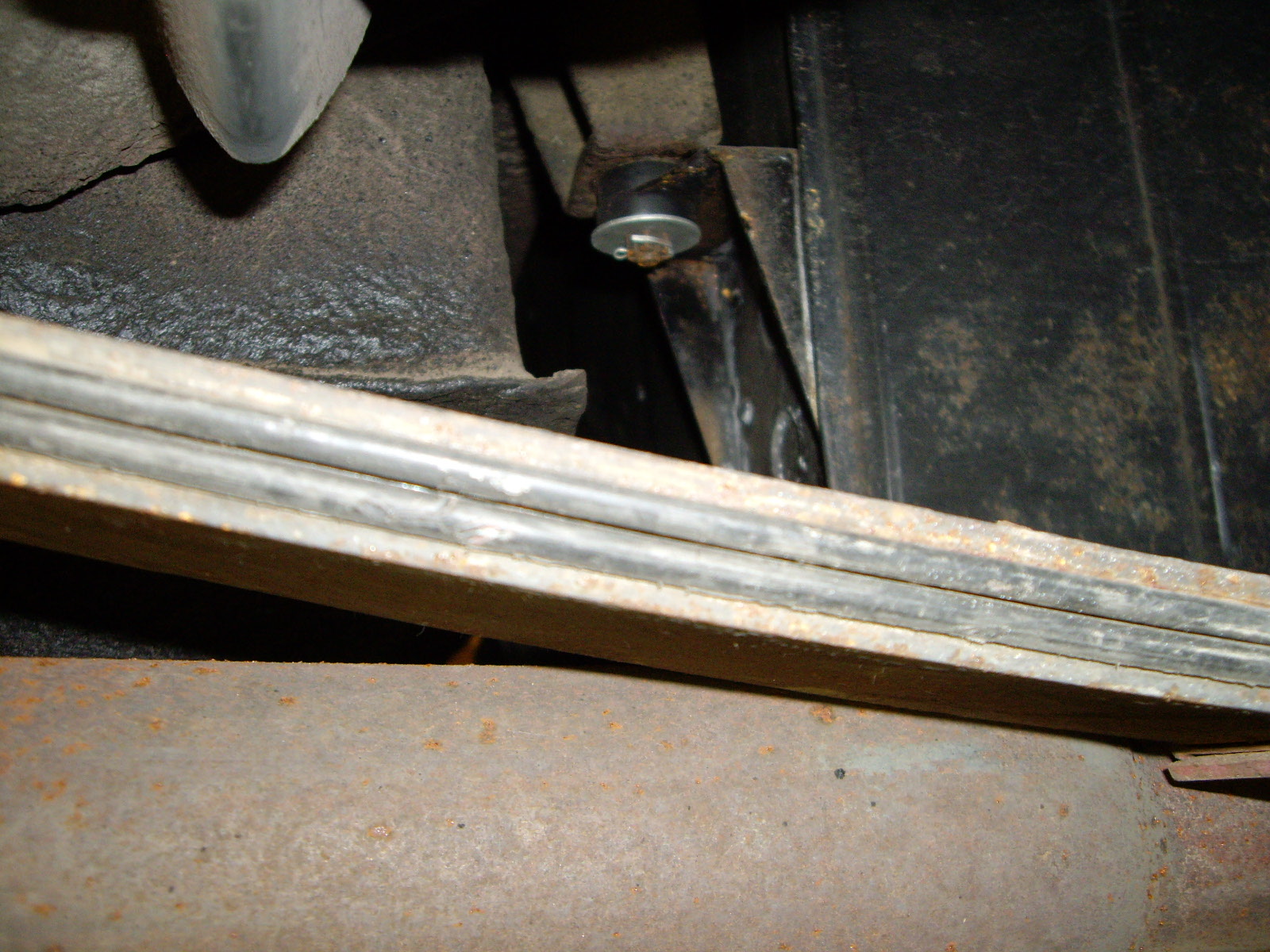

| Leaf spring
rubber (PVC) |
Between leaves of rear leaf
spring |
Part of 600499 |
60 |
60 |
18.3 |
1 |
24-15 |
16315731 |
|
| License
plate Euro front trim (plastic) |
Between holder and front
bumper |
241.74.590.0.0 (Note 3) |
1 |
1.5 |
0.5 |
B |
50-5 |
|
|
| License
plate Euro rear trim (plastic) |
Between holder and body |
241.74.590.0.0 (Note 3) |
1 |
4 |
1.2 |
B |
50-6 |
|
|

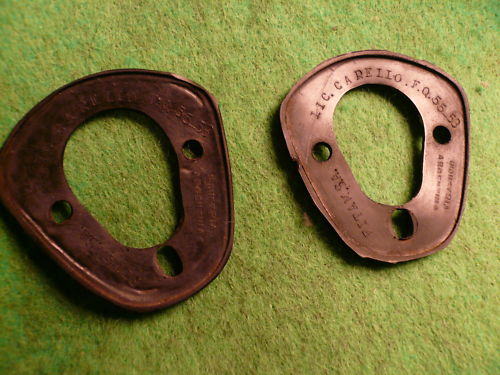

| License
plate light gasket |
Between light and bumper |
Part of 242.82.450.0.2 |
2 |
|
|
B |
59-19 |
16315262 |
|
| License plate light
gasket (white rubber) |
Between lens and body of
light |
Part of 242.82.450.0.2 |
2 |
|
|
B |
59-19 |
16315262-1 |
|
| License
plate light wire boot |
Covers wire and housing |
Part of 242.82.450.0.2 |
2 |
|
|
B |
59-19 |
|
|

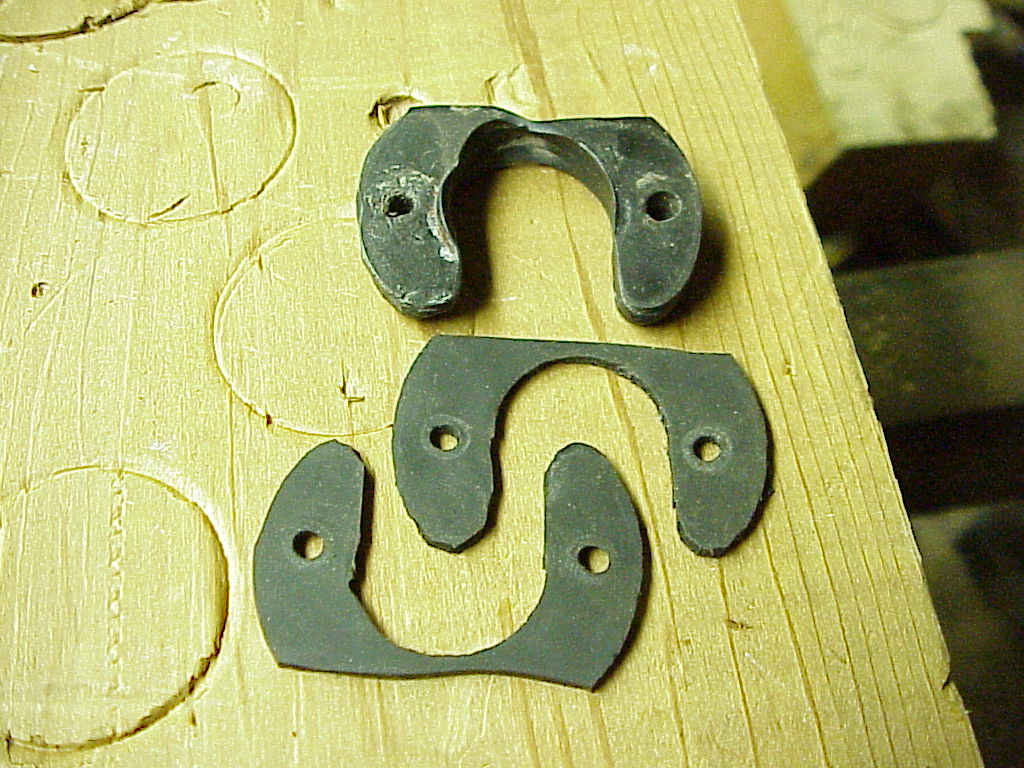

| Light switch
pads |
Under door, hood and trunk
switches |
Part of 242.80.832.0.1 |
4 |
|
|
B |
58-8 |
|
|

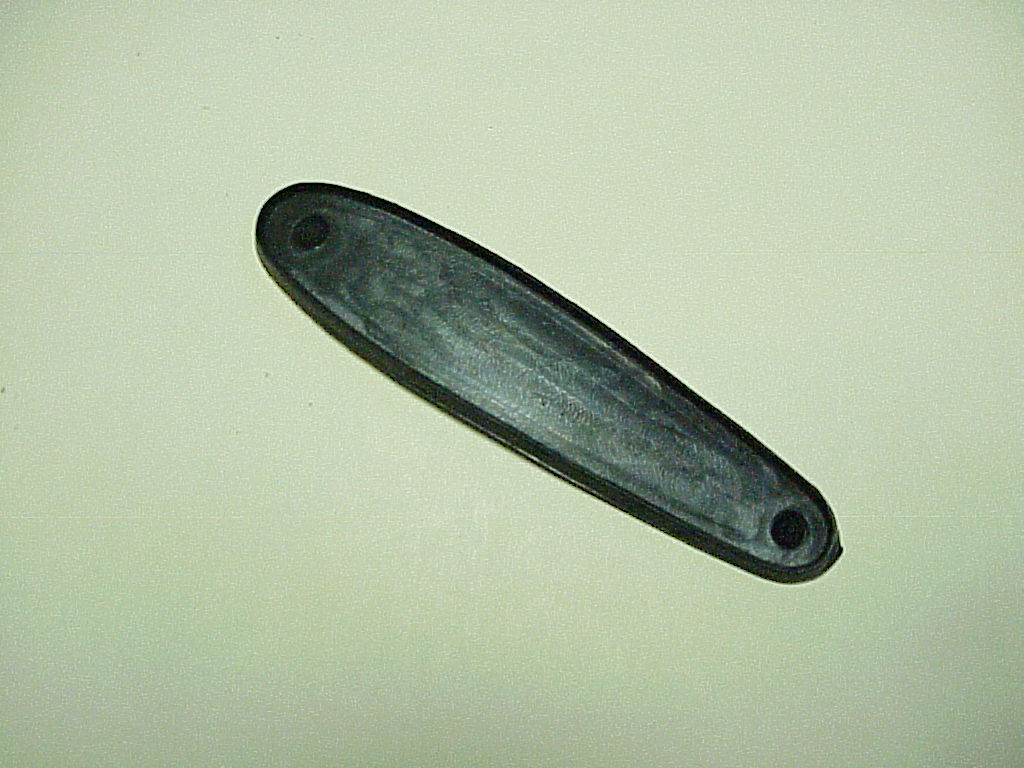

| Mirror base (?) |
Between mirror base and
body |
? |
1 |
|
|
B |
|
|
|

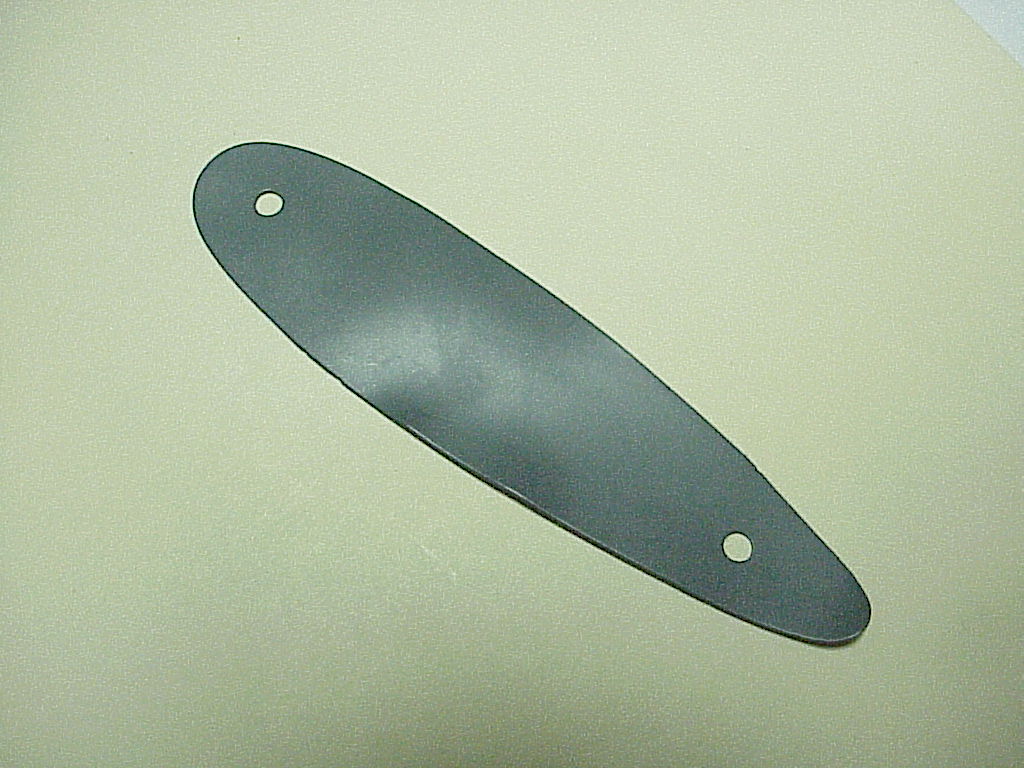

| Mirror
base (Talbot) |
Between mirror base and
body |
? |
1 |
|
|
B |
|
|
|
| Oil filler
breather hose |
From bottom of oil filler
assembly |
Pirelli 31x25x600 (note 8) |
2 |
2 |
0.6 |
1 |
10-18 |
|
|

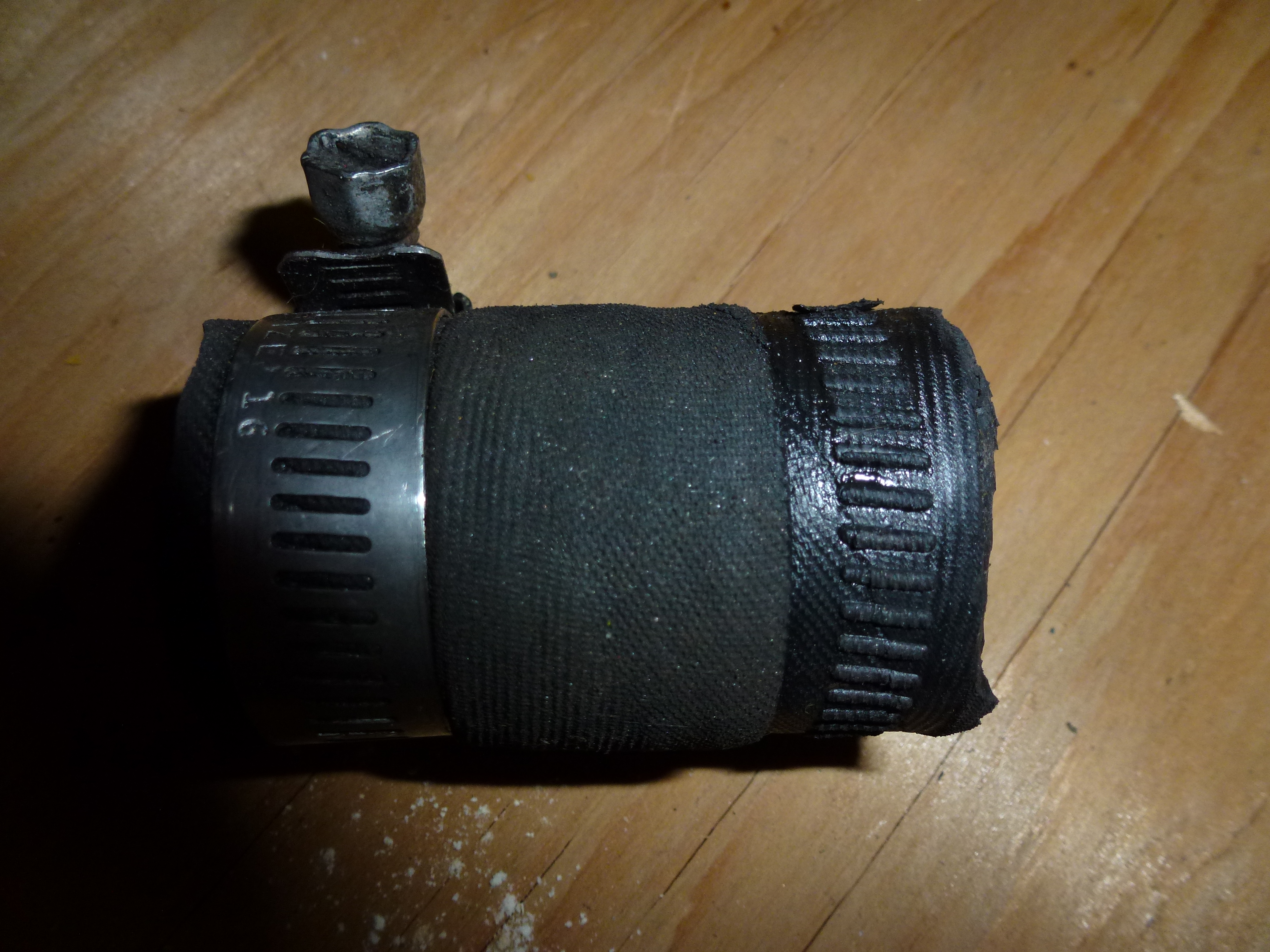

| Oil pickup
hose |
From oil pickup in sump to
oil pump inlet |
24559 (note 8) |
1 |
|
|
1 |
11-39 |
|
|
| Oil temperature sender
wiring boot |
At oil temperature sensor
(Series I note 9) |
15531 |
1 |
|
|
1 |
2-25 |
16315246 |
|
| Quarter
window channel (left) |
Channel at leading edge of
rear quarter window |
242.42.401.0.0 |
1 |
1.5 |
0.5 |
B |
35-4 |
16315141 |
|
| Quarter
window channel (right) |
Channel at leading edge of
rear quarter window |
242.42.400.0.0 |
1 |
1.5 |
0.5 |
B |
35-4 |
16315141 |
|
| Quarter window glass
rubber |
Surrounds glass inside of
quarter window frame |
242.42.532.0.0 |
2 |
12 |
3.7 |
B |
35-6 |
16315142 |
|
| Quarter window lock
gaskets |
Both sides of glass where
lock screws down |
241.42.782.0.0 |
4 |
|
|
B |
35-10 |
|
|

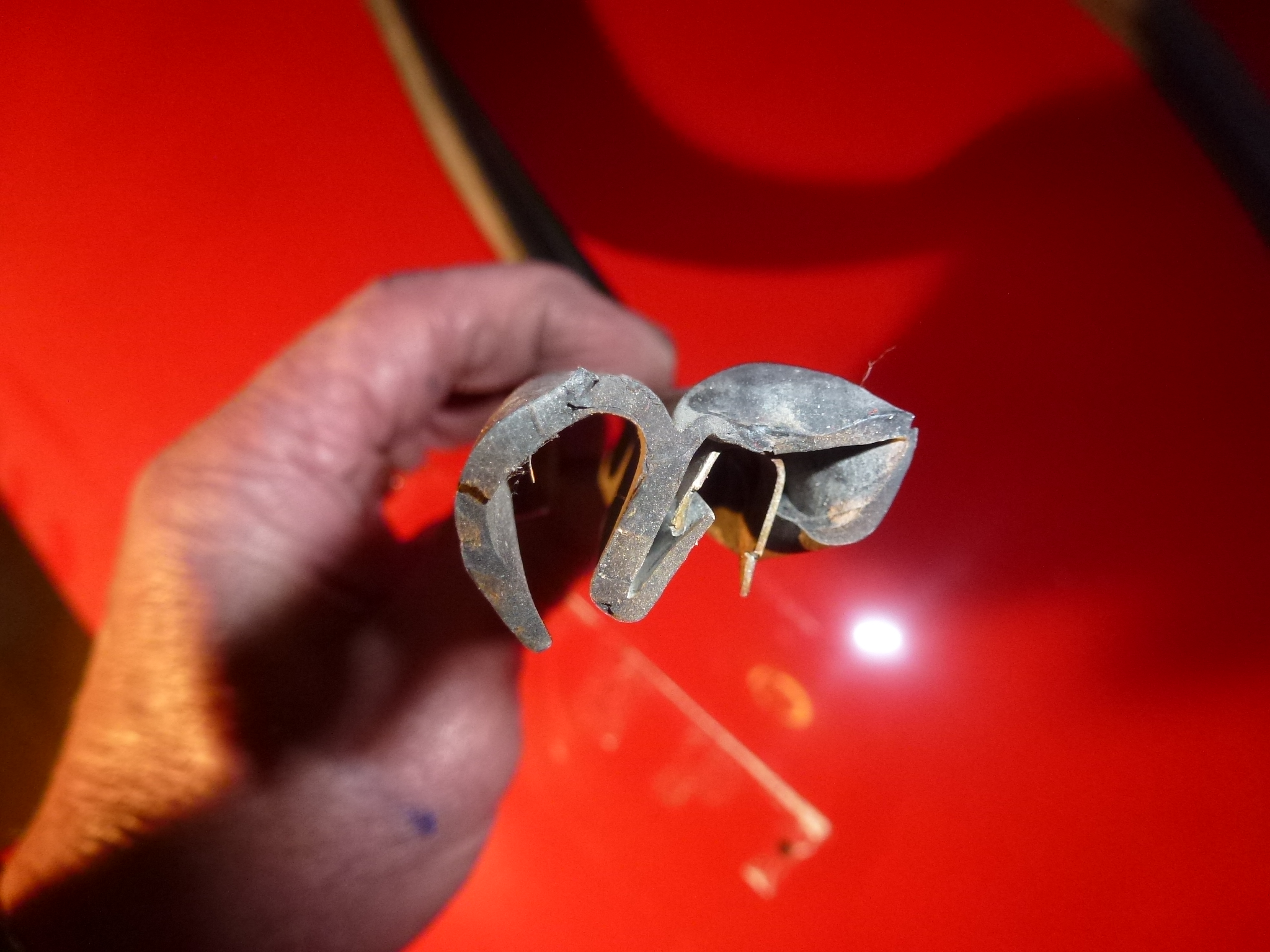

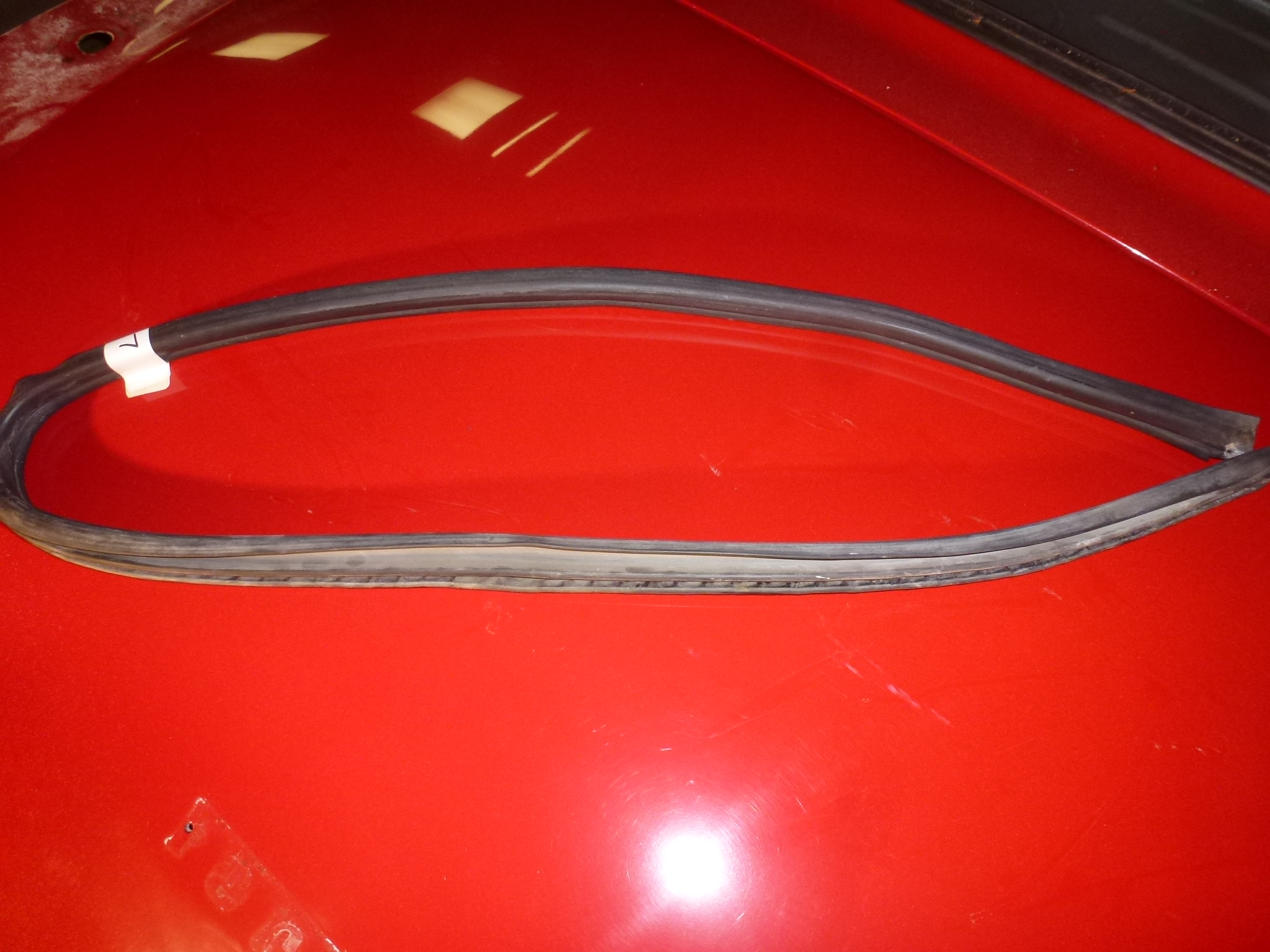

| Quarter window
seal (left) |
On body surrounding window |
242.42.375.0.0 (Note 1) |
1 |
5 |
1.5 |
B |
35-3 |
16315140 |
|
| Quarter window
seal (right) |
On body surrounding window |
242.42.374.0.0 (Note 1) |
1 |
5 |
1.5 |
B |
35-3 |
16315140 |
|

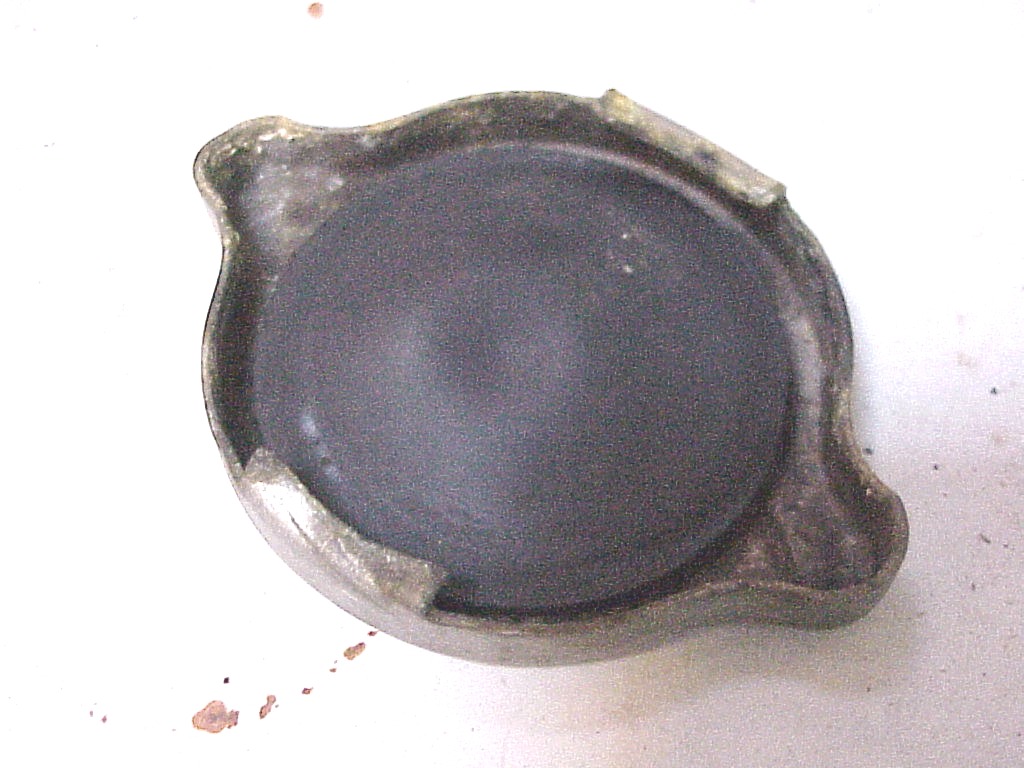

| Radiator cap
seal |
Inside cap on radiator
(Series II w/overflow tank) |
Part of 252841 |
1 |
|
|
2 |
36-10 |
16315247 |
|

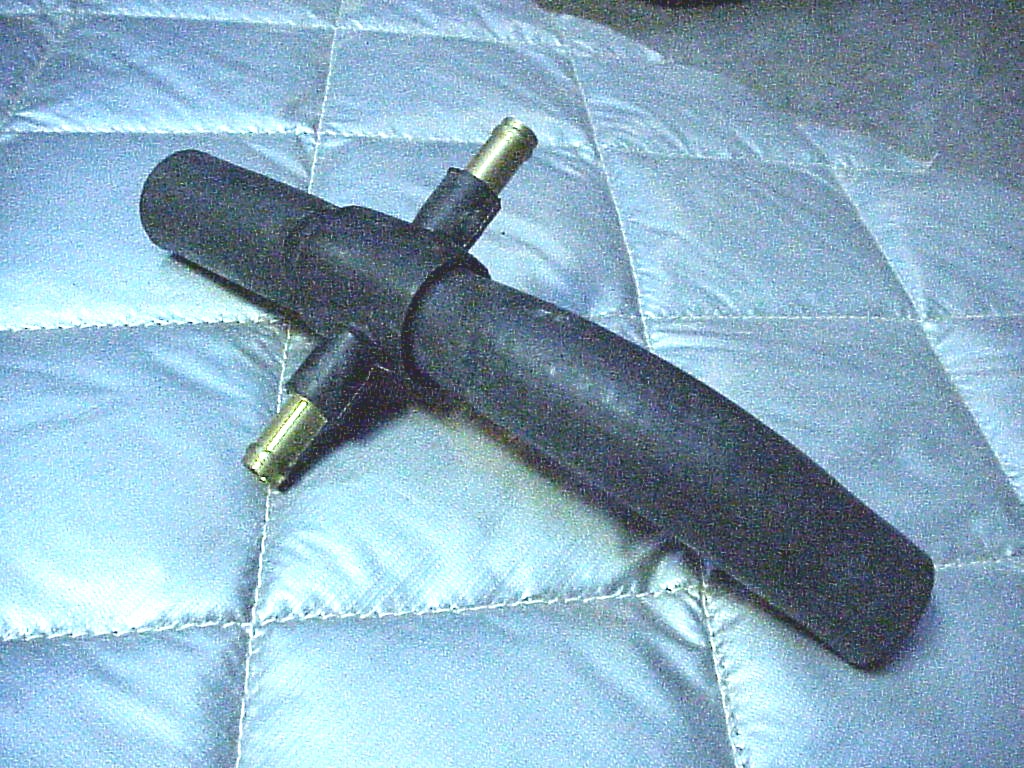

| Radiator hose
(Lower) |
Between water pump and
inlet to radiator (4HL) |
800040 |
1 |
|
|
1 |
39-16 |
|
|
| Radiator
hose (Lower) |
Between water pump and
inlet to radiator (5 speed) |
800109 |
1 |
|
|
2 |
36-43 |
|
|
| Radiator Hose
(Overflow) |
Overflow hose to overflow
tank (Series II) |
Pirelli 7x16x600 |
1 |
|
|
L |
36-12 |
|
|

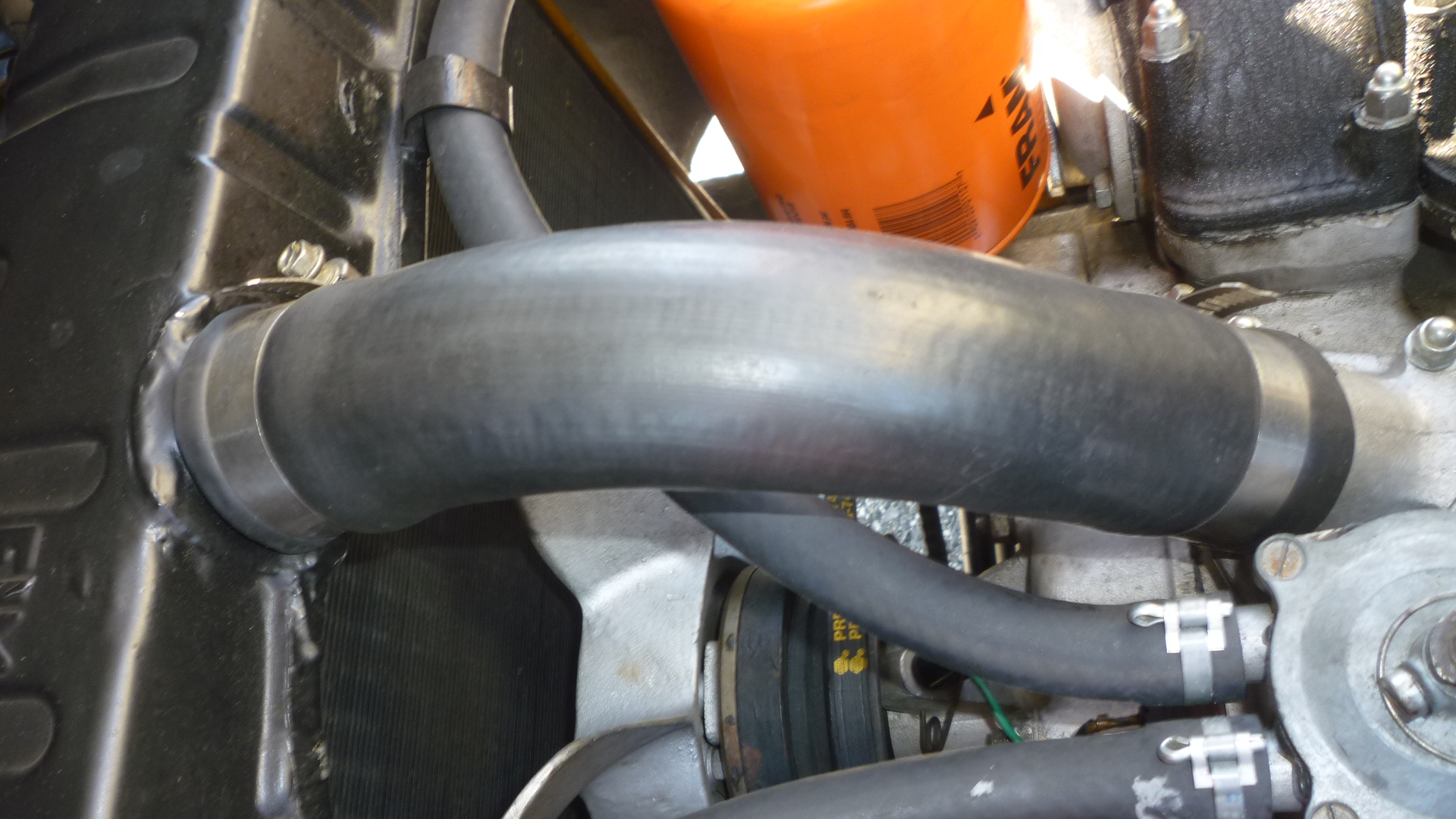

| Radiator hose
(Upper) |
Between outlet from
radiator to thermostat housing (4 mount) |
80035 |
1 |
|
|
1 |
36-9 |
|
|
| Radiator hose
(Upper) |
Between outlet from
radiator to thermostat housing (2 mount) |
95053 |
1 |
|
|
L |
36-9 |
|
|
| Radiator
overflow tank pad |
Between tank and strap |
252733/D |
1 |
|
|
B |
36-56 |
|
|
| Radiator
temperature wire boot |
Covers temperature switch |
28919 (Note 5) |
1 |
|
|
2 |
36-53 |
16315246 |
|
| Rear shock centering
rings |
Inside shock tower |
65135 |
4 |
|
|
2 |
24-1 |
16315736 |
|
| Rear suspension lower
stop |
Under rear suspension |
600188 |
2 |
|
|
2 |
26-23 |
16315741 |
|
| Rear suspension upper
stop |
Above rear suspension |
600251 |
2 |
|
|
2 |
25-23 |
16315740 |
|

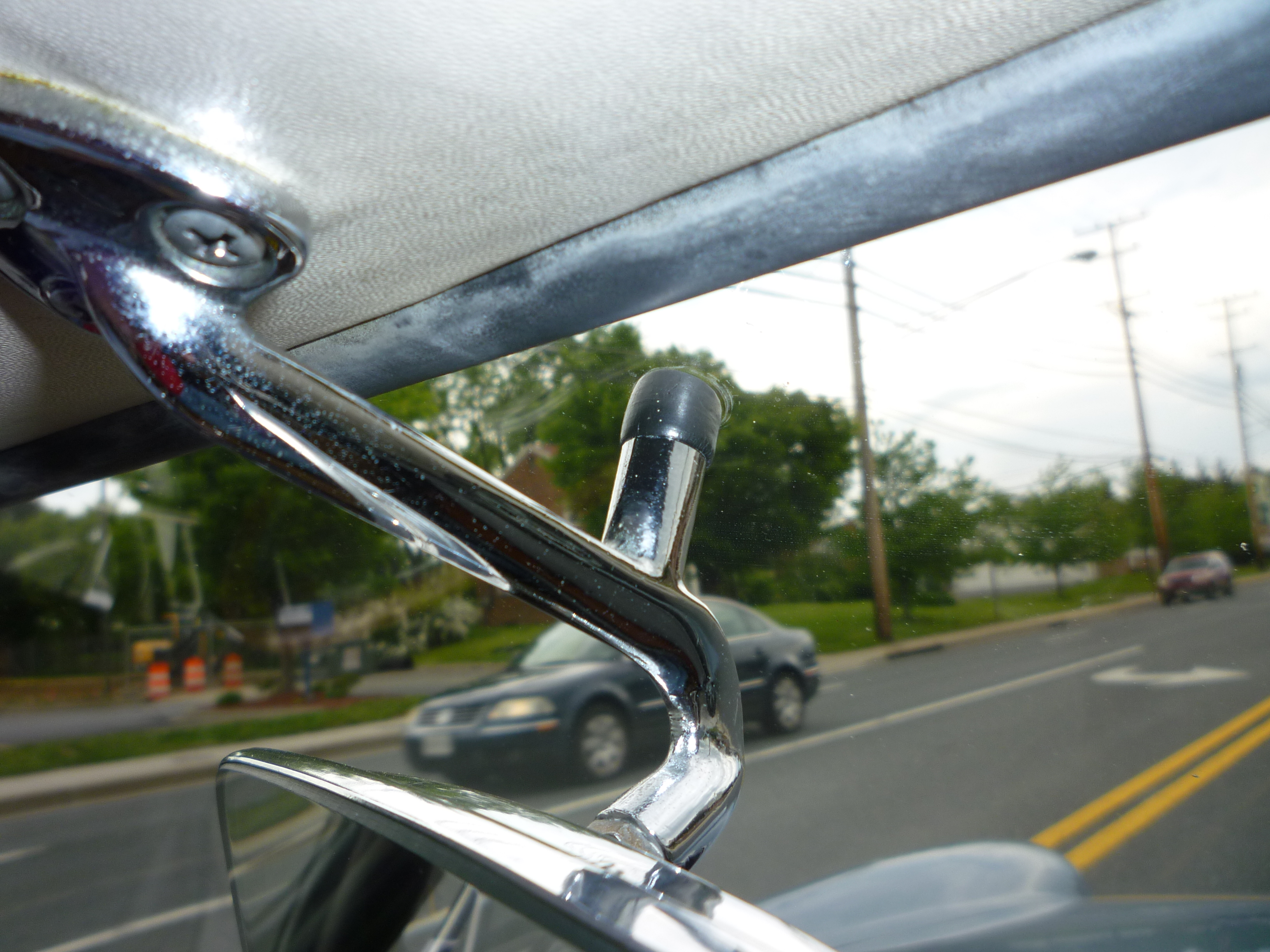

| Rear view mirror
bumper |
In hole at top of rear view
mirror |
Part of 242.64.980.0.2 |
1 |
|
|
B |
43-18 |
|
|
| Rear window
gasket |
Around rear window |
242.40.520.0.0 |
1 |
|
|
B |
33-2 |
16315110 (Series II) |
|
| Rear window
gasket |
Around rear window |
242.40.520.0.0 |
1 |
|
|
B |
33-2 |
16315111 (Series I) |
|

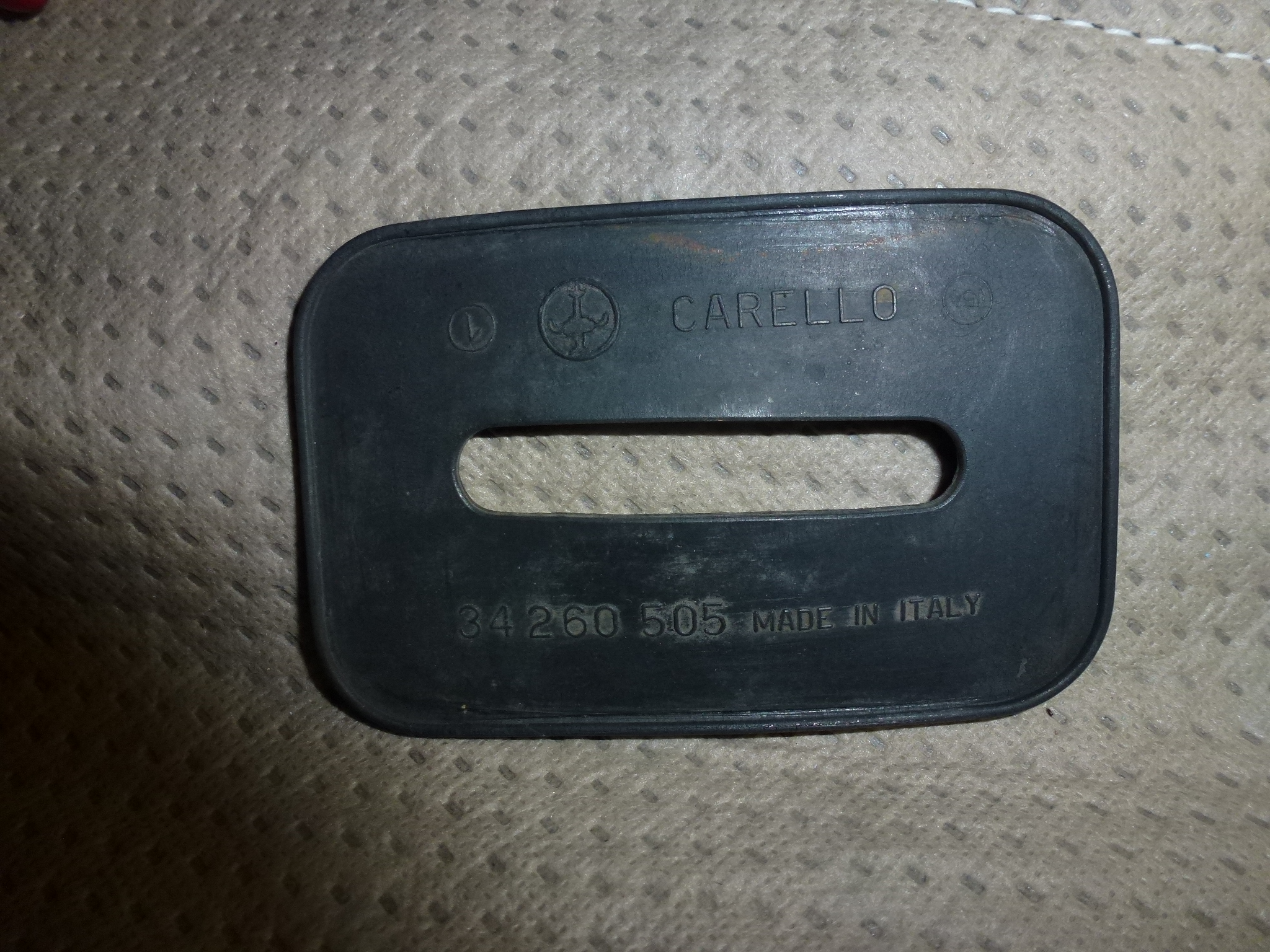

| Reflector
gasket (rectangular) |
Between rear reflector and
body |
Part of 242.82.400/401.0.2 |
2 |
|
|
B |
59/18 |
16315266 |
|
| Reflector gasket (round) |
Between rear reflector and
body |
243.82.410/411.0.2 |
2 |
|
|
B |
61/1-18 |
|
|

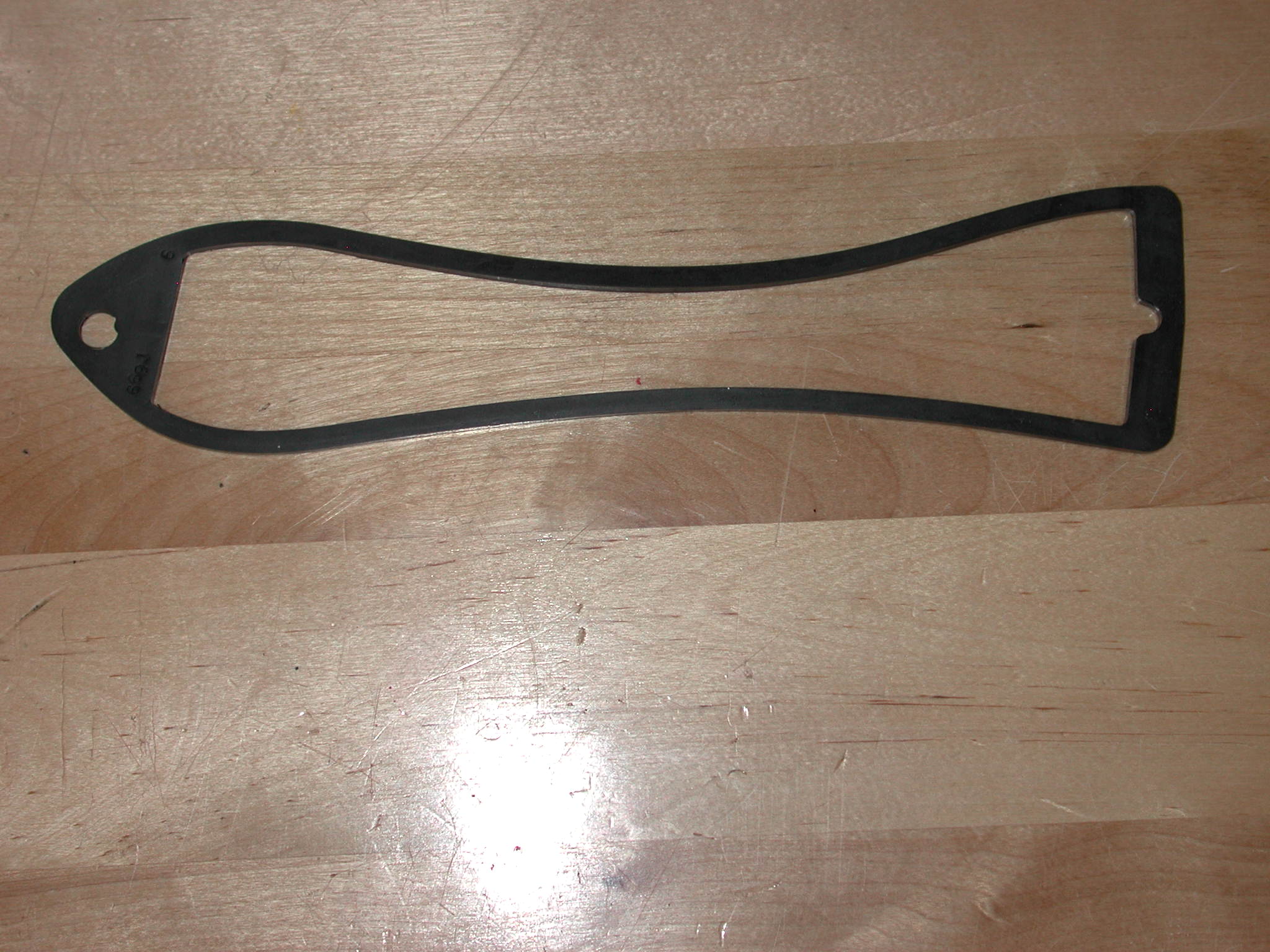

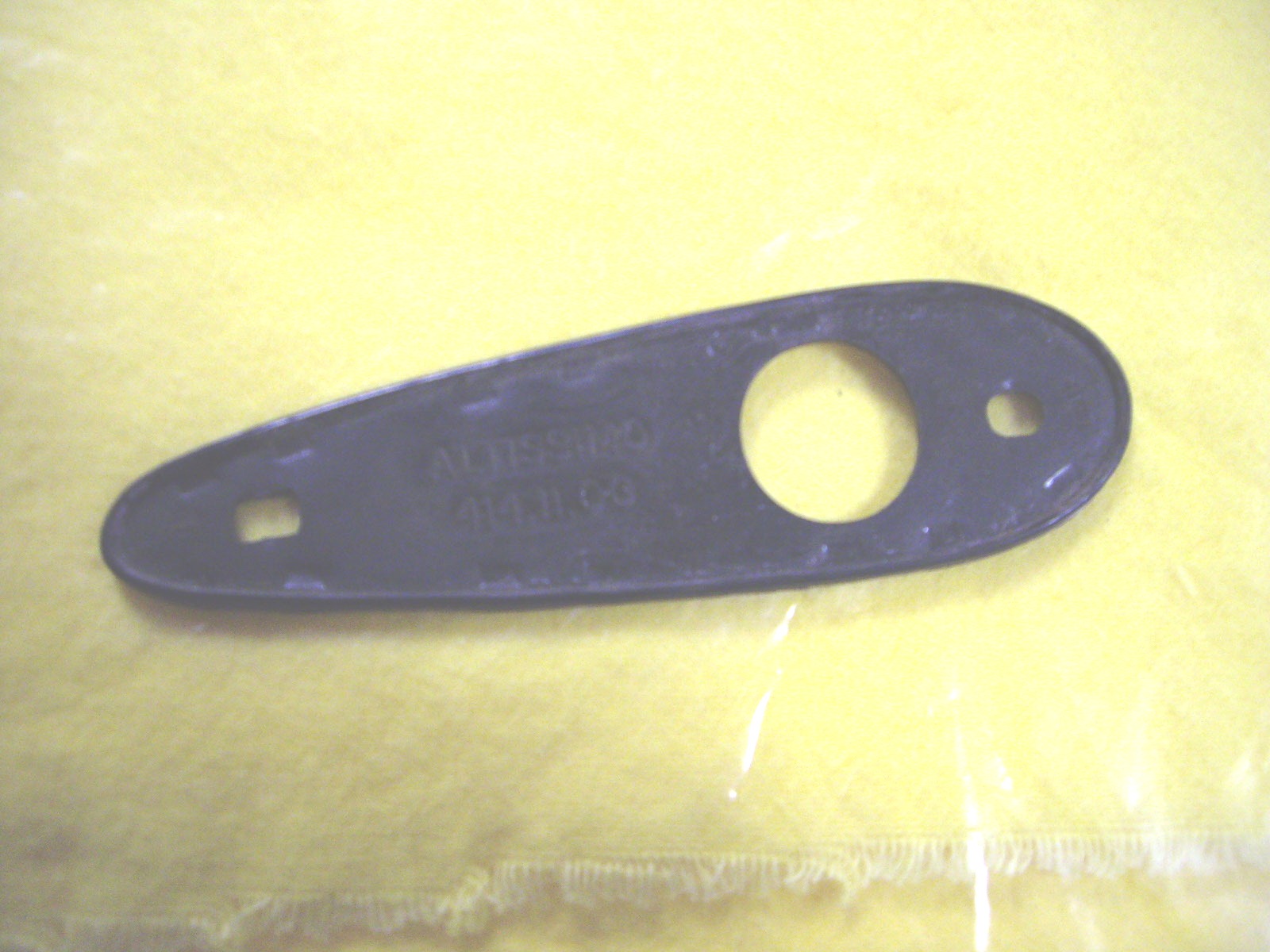

| Repeater side
light pads |
Under tear-drop side lights |
Part of 241.82.202.0.0 |
2 |
|
|
B |
59/24 |
16315280 |
|

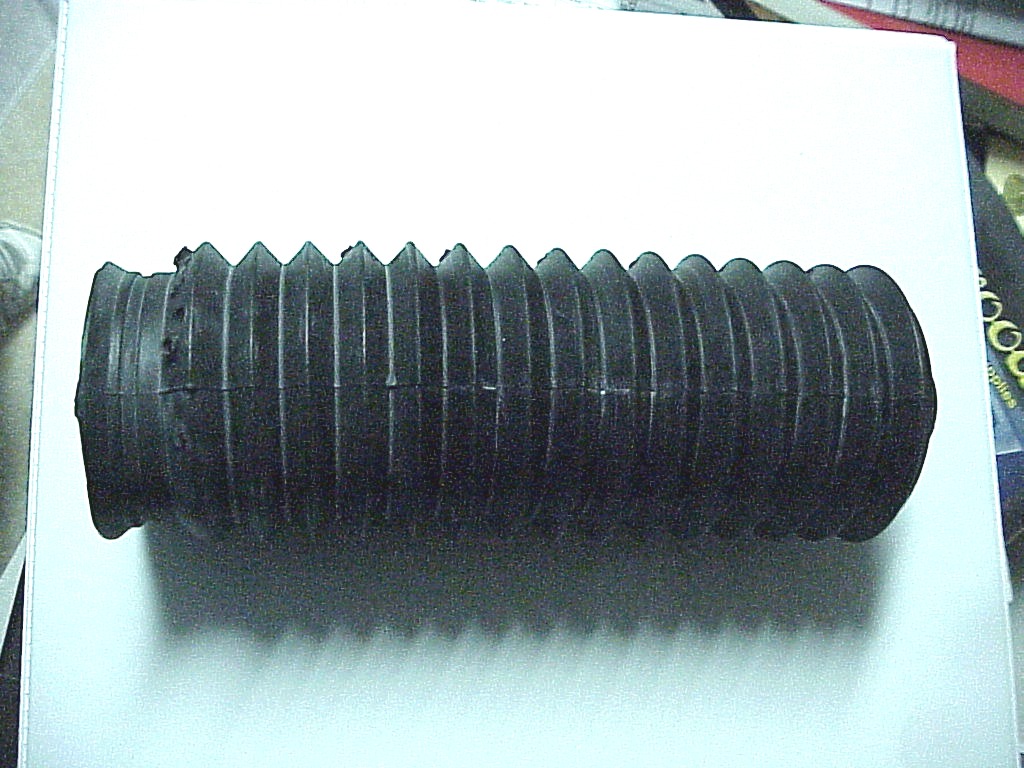

| Shock dust
covers |
Top of rear shocks |
600384 |
2 |
|
|
2 |
24-16 |
|
|

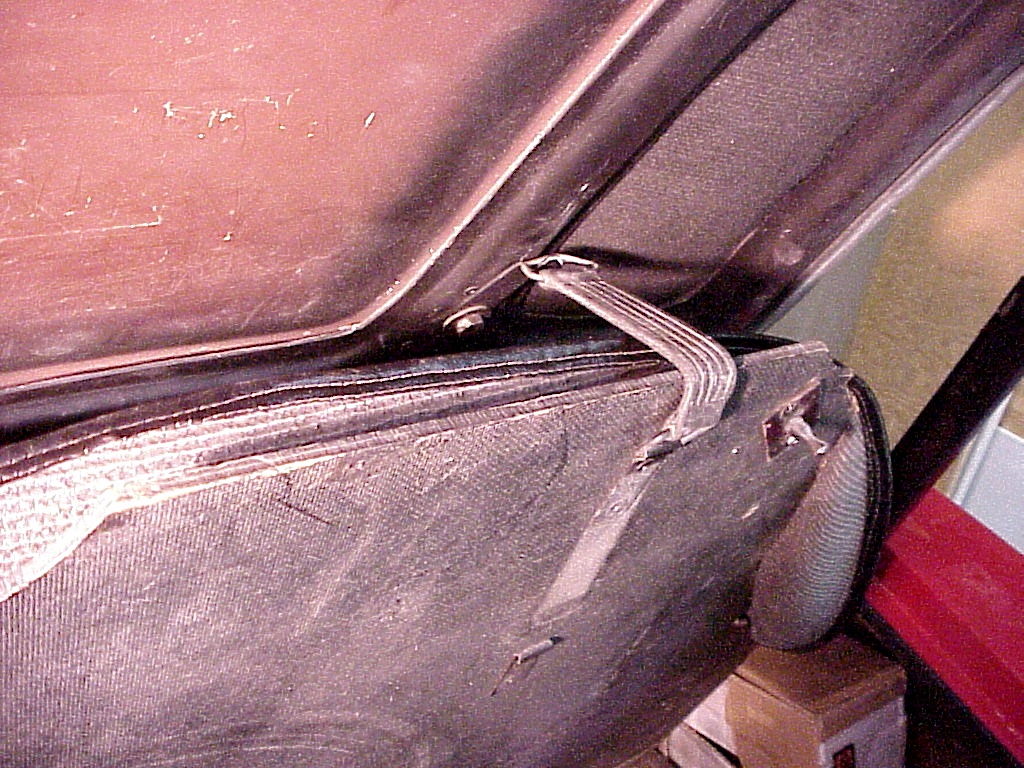

| Spare
tire cover strap |
Used to hold cover up |
Part of 242.34.624.0.0 |
1 |
|
|
B |
21-12 |
|
|

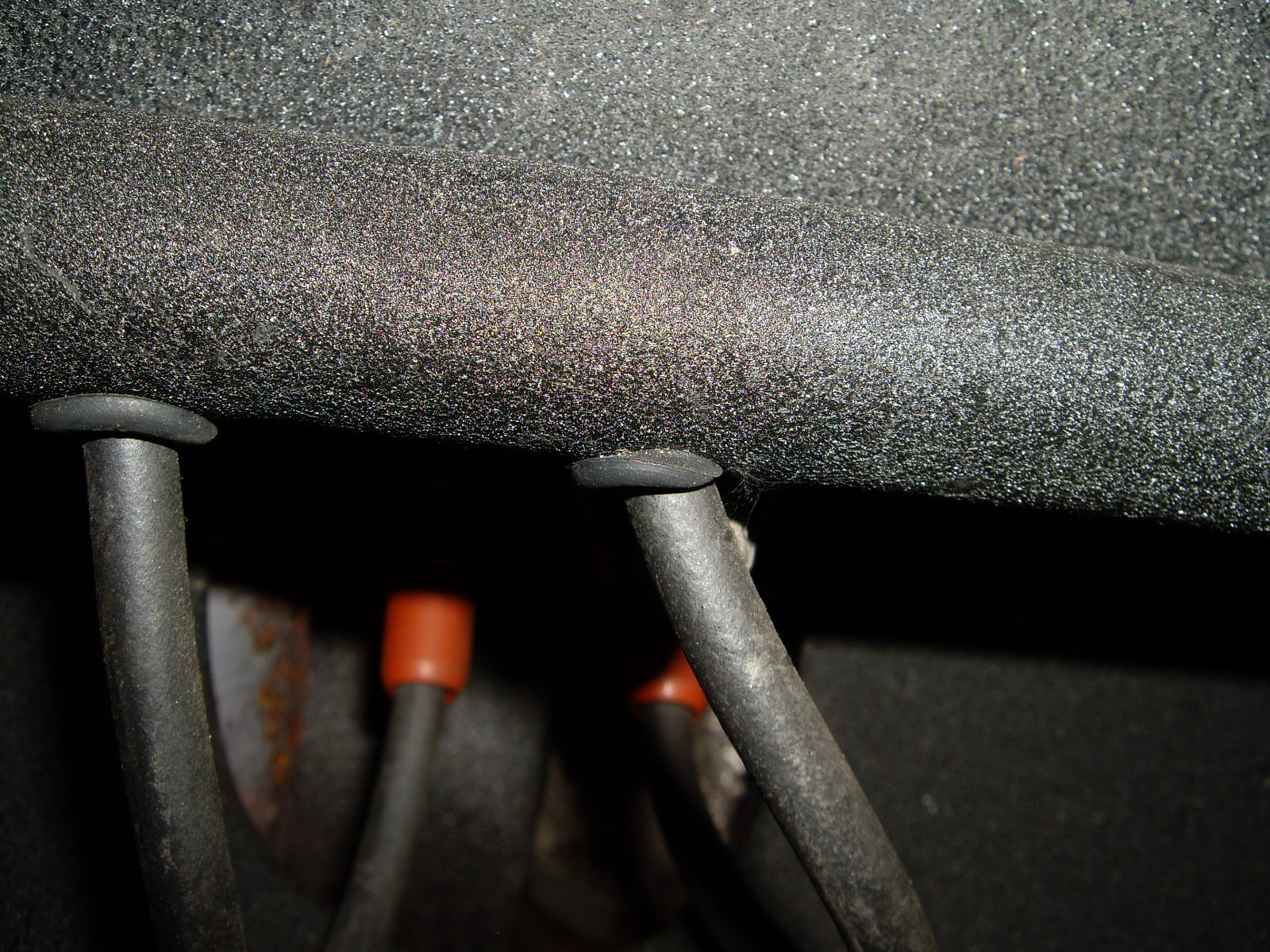

| Spark plug
wiring tube grommets |
Where each wire exits tube |
28905 |
12 |
|
|
2 |
13-32 |
|
|

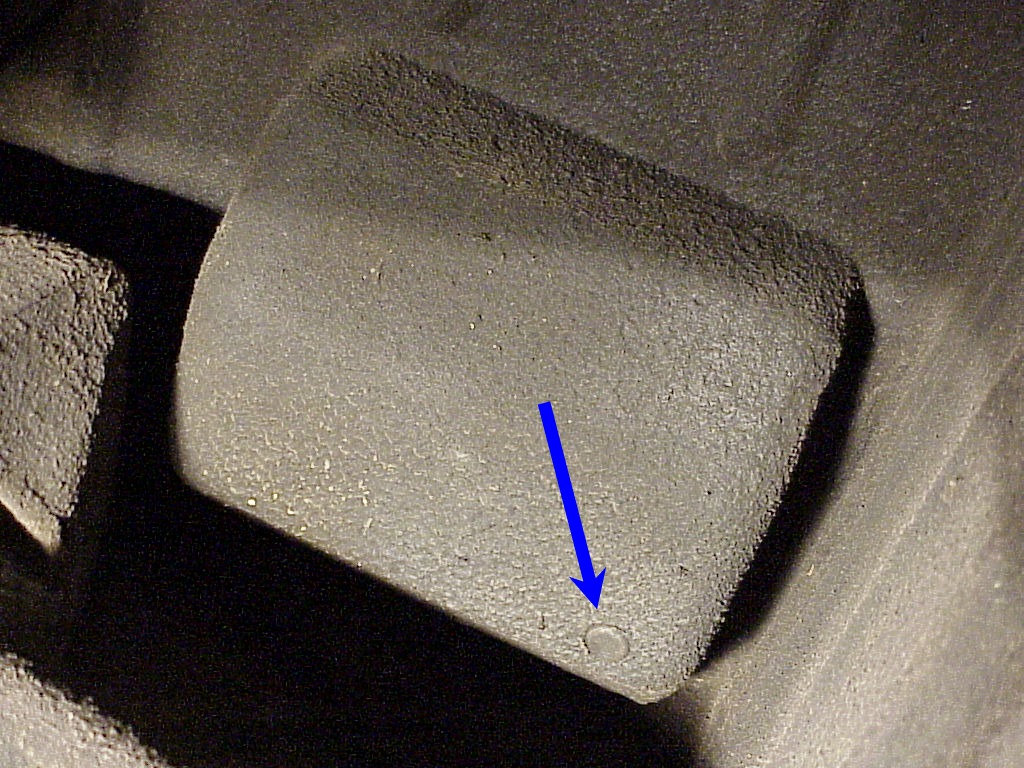

| Speaker
box plug |
At bottom of speaker boxes
under package shelf |
? |
2 |
|
|
B |
|
|
|

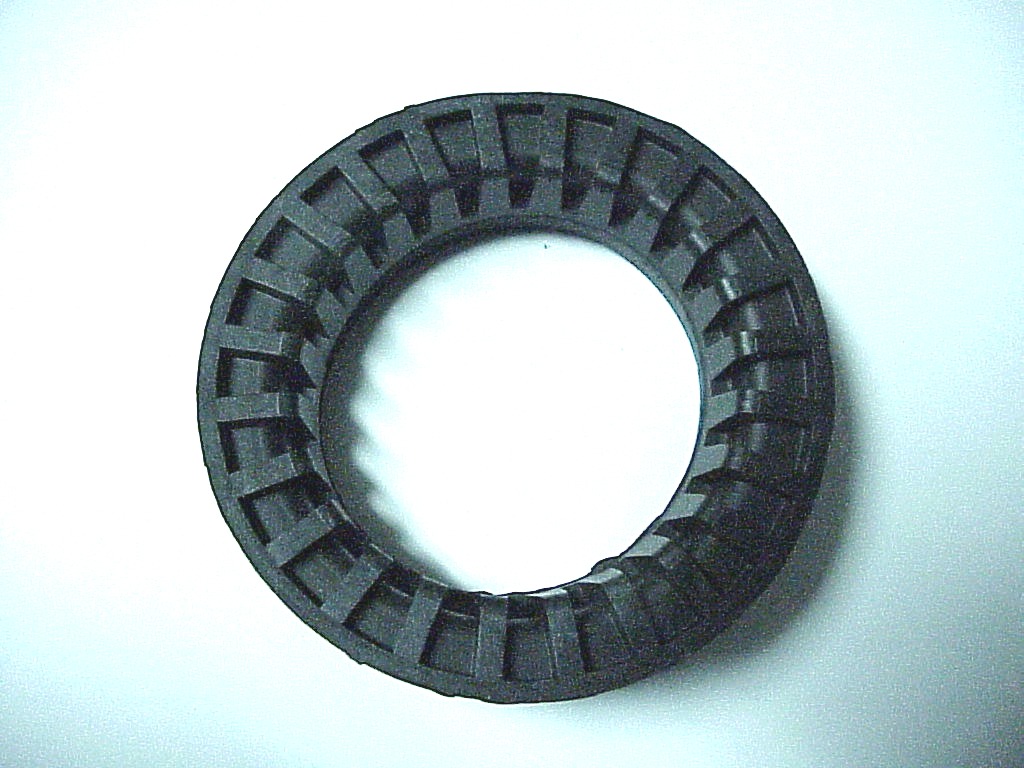

| Spring rubber |
At top and bottom of front
springs |
65135 (note 6) |
4 |
|
|
2 |
24-1 |
|
|
| Spring rubber |
At top and bottom of rear
springs |
65135 (note 6) |
4 |
|
|
2 |
24-1 |
|
|

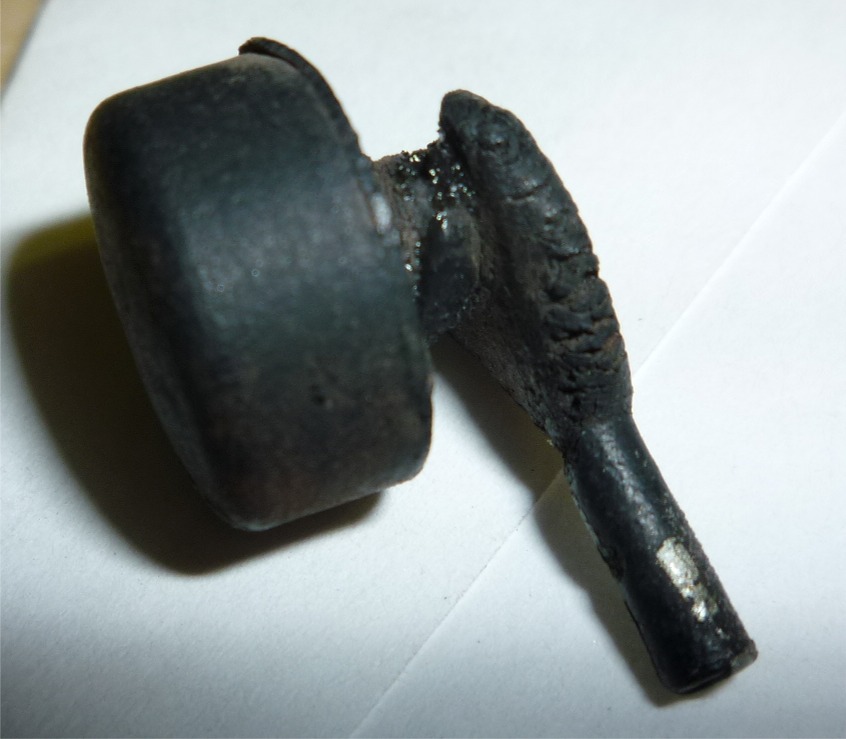

| Starter solenoid
wire boot |
Wire to solenloid at
starter |
? |
1 |
|
|
2 |
|
16315285 |
|

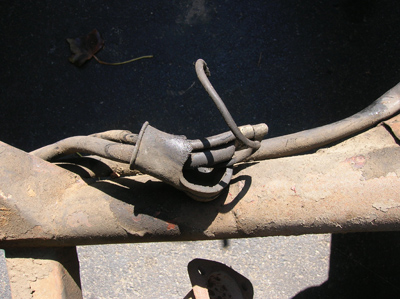

| Starter wire
boot |
Hot lead at starter |
13195 |
1 |
|
|
2 |
3-24 |
16315368 |
|

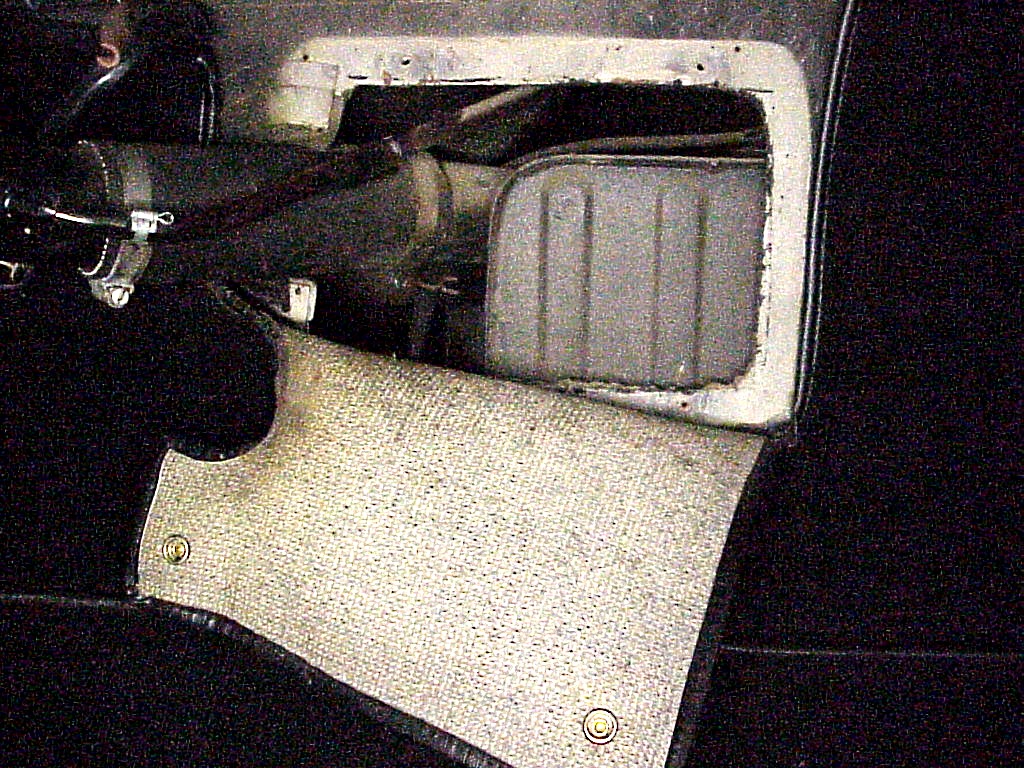

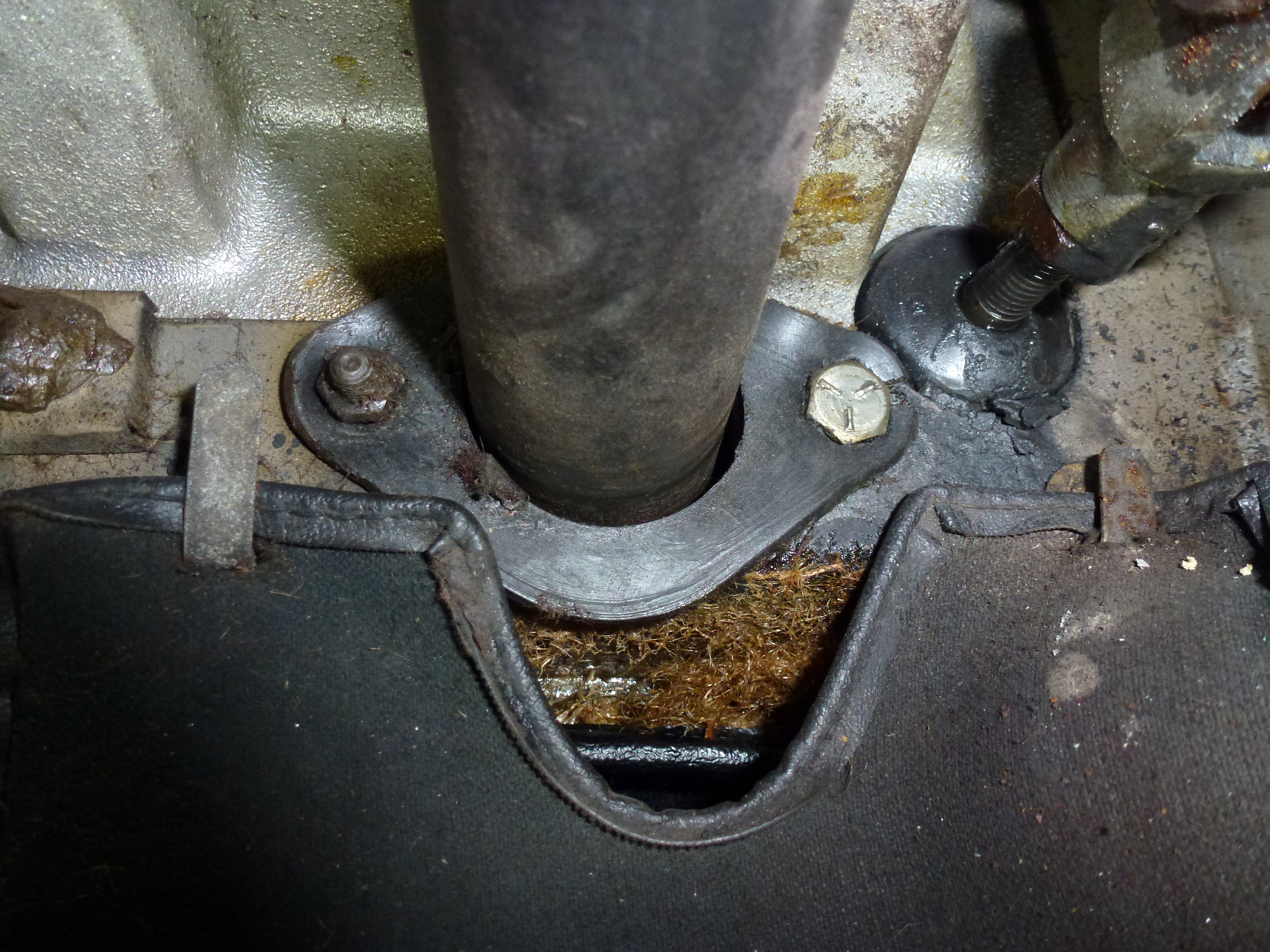

| Steering
column gasket |
Around steering column at
firewall in footwell |
660341 |
1 |
|
|
2 |
27-55 |
16315320 |
|

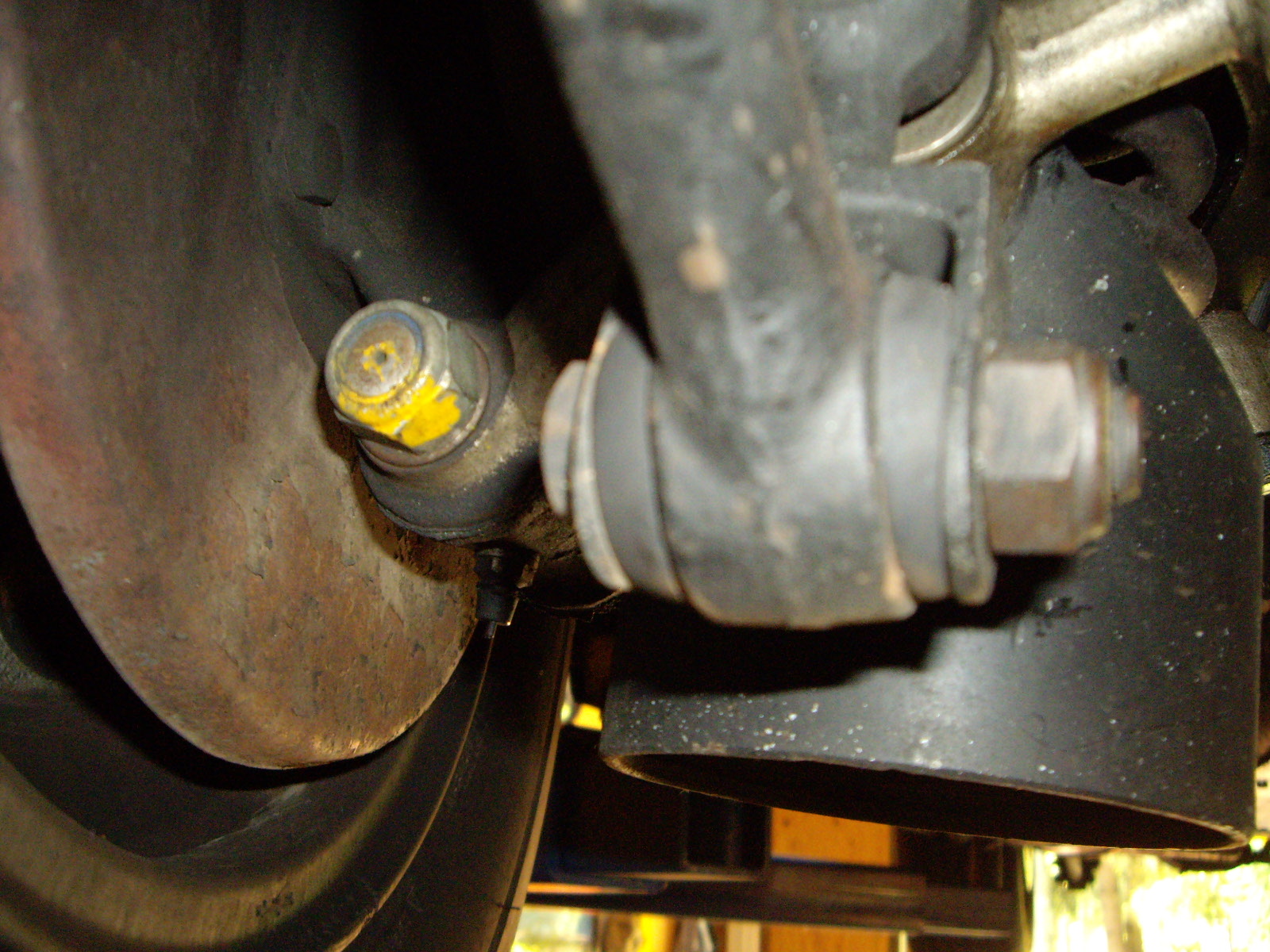

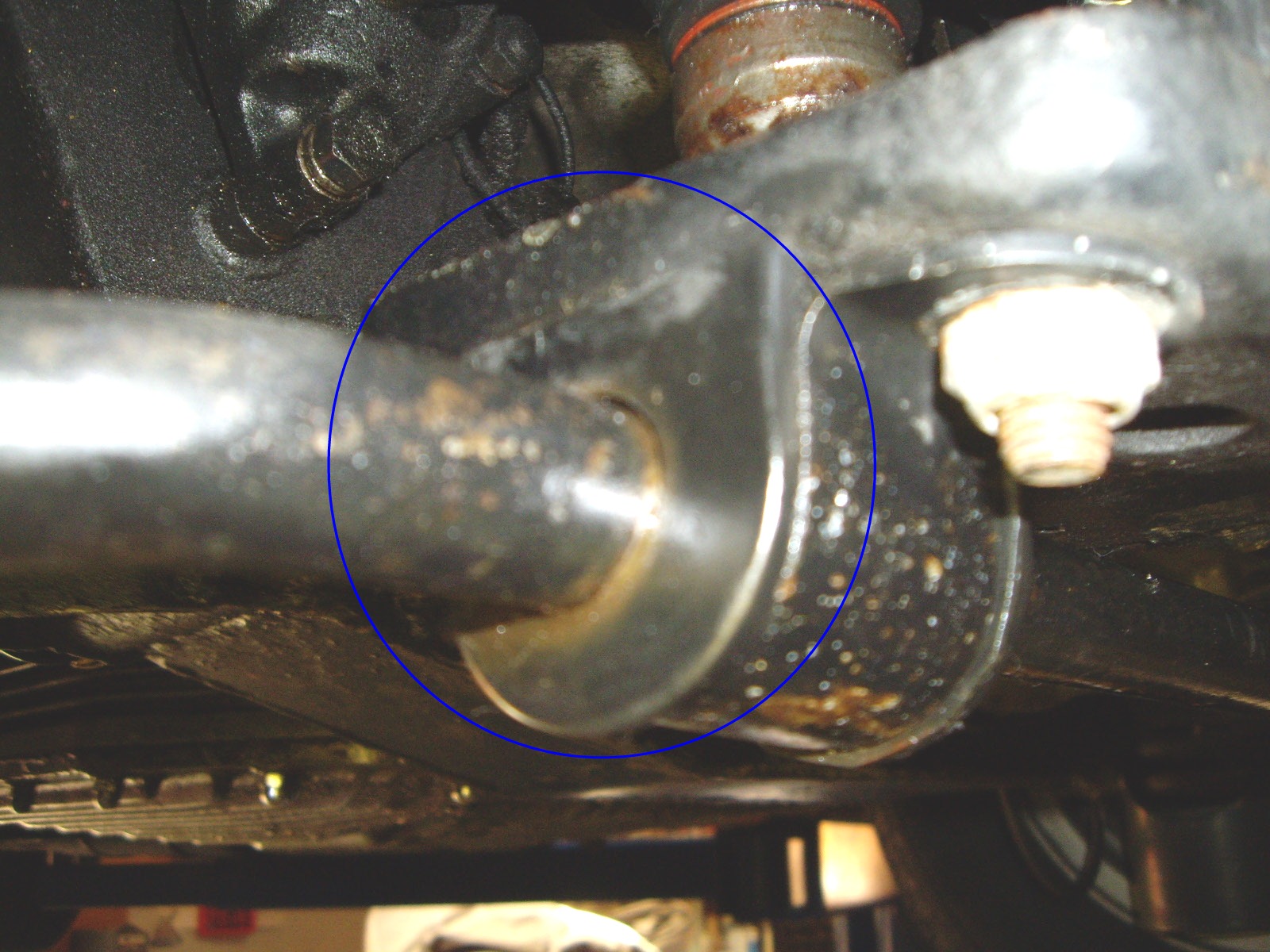

| Sway bar bushing |
At ends of sway bar |
64430 |
4 |
|
|
2 |
26-38 |
|
|
| Sway bar bushing |
Around bar where bolts to
body (Series I) |
640183 |
2 |
|
|
1 |
29-48 |
16315430 |
|
| Sway bar bushing |
Around bar where bolts to
body (Series II) |
640316 |
2 |
|
|
2 |
26-3 |
16315430 |
|

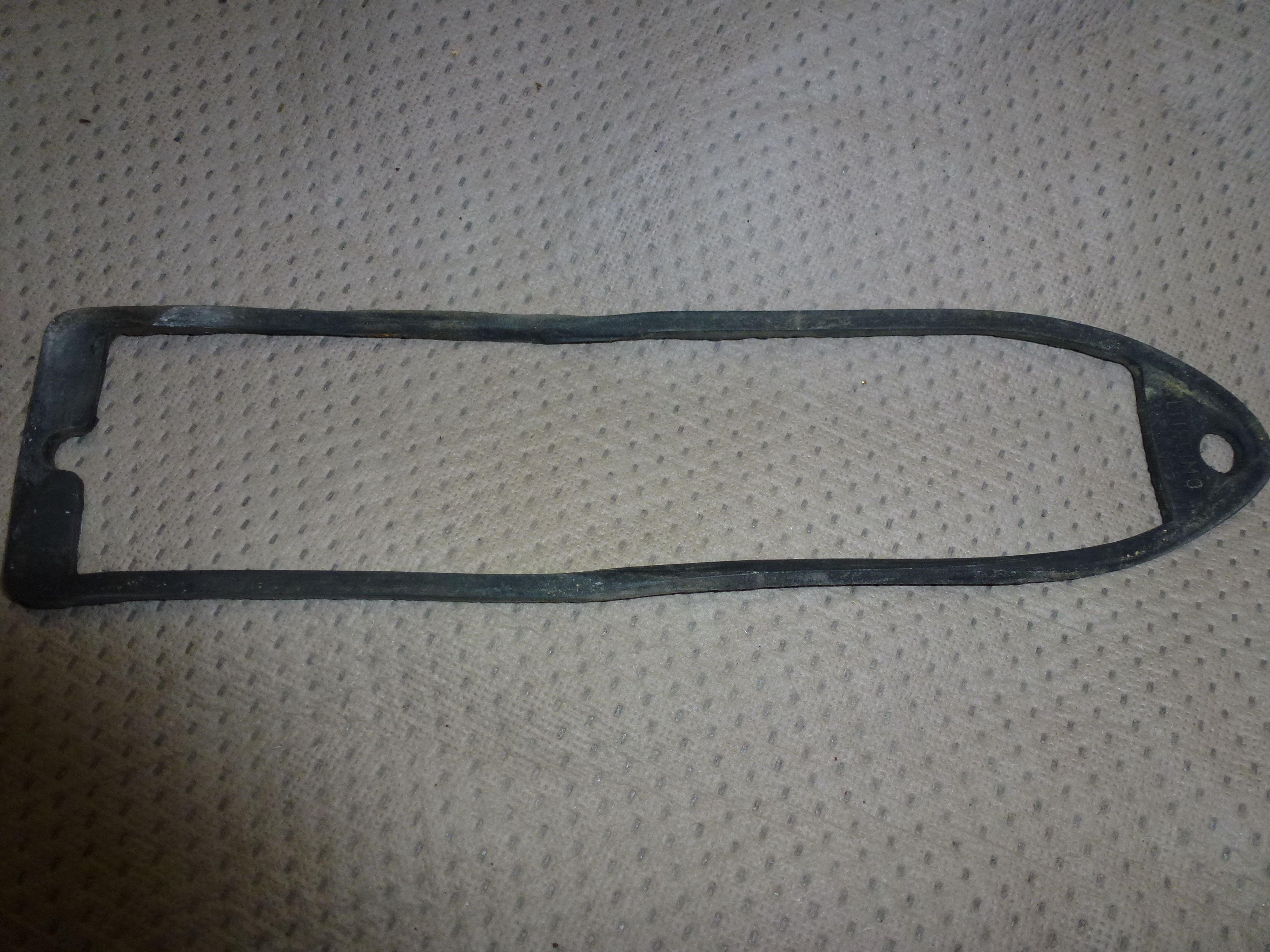

| Taillight gasket |
Between taillight and car
body |
242.82.364.0.0 |
2 |
|
|
B |
24-14 |
16315260 |
|
| Taillight
lens gasket |
Between lens and taillight
body |
242.82.334.0.0 |
2 |
|
|
B |
24-15 |
16315261 |
|

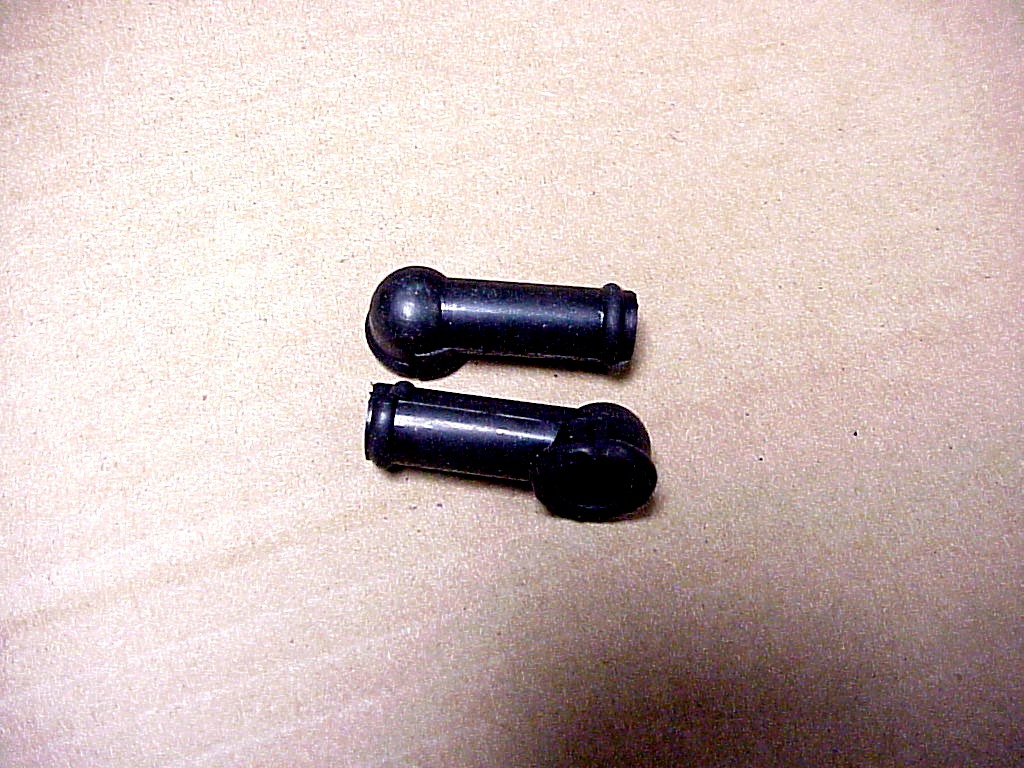

| Taillight wiring boot |
On wires at taillight |
Part of 242.82.351.0.2 |
4 |
|
|
B |
59-122 |
16315263 |
|
| Transmission boot |
Shift lever boot on tunnel |
Part of 242.62.218.0.0 |
1 |
|
|
B |
39-4 |
16315305 |
|
| Trunk
edge trim (PVC) |
On metal edge of opening
for trunk |
242.34.510.0.0 |
1 |
11 |
3.4 |
B |
21-10 |
16315180 (note
10) |
|

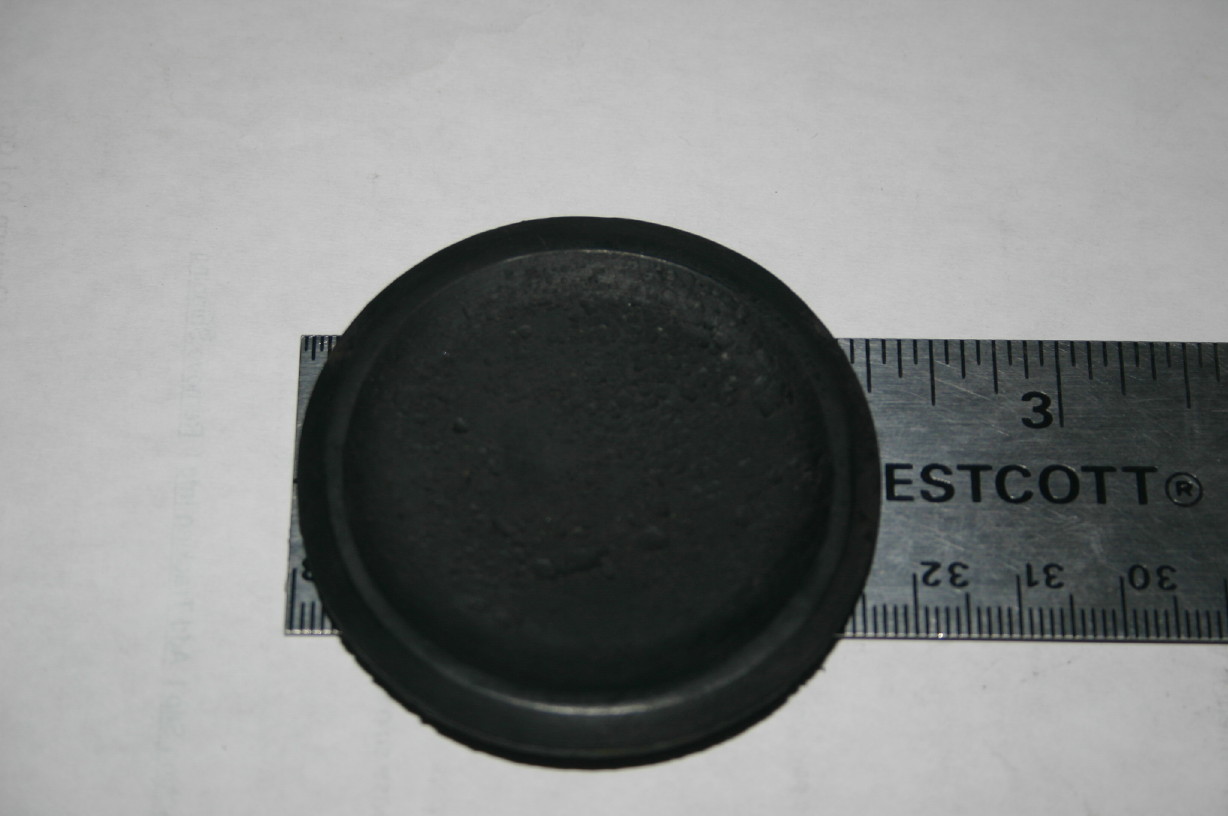

| Trunk floor
plugs |
Under spare tire |
? |
4 |
|
|
B |
|
16315316 |
|
| Trunk hinge stop |
In hole in trunk hinge |
134.20.580.0.0 |
2 |
|
|
B |
21-1 |
|
|

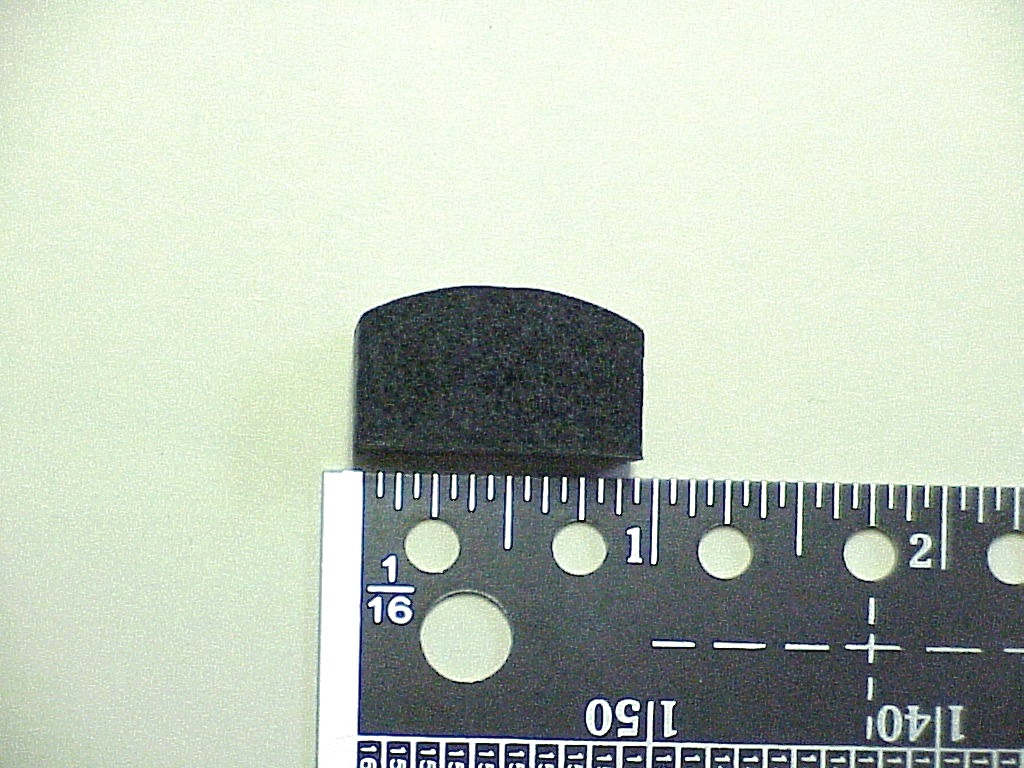

| Trunk lid seal |
Glued under trunk lid |
242.28.198.0.0 |
1 |
11 |
3.4 |
B |
21-4 |
16315190 |
|
| Trunk
lock rubber |
Between lock and body |
242.34.126.0.0 |
1 |
|
|
B |
21-3 |
16315332 |
|

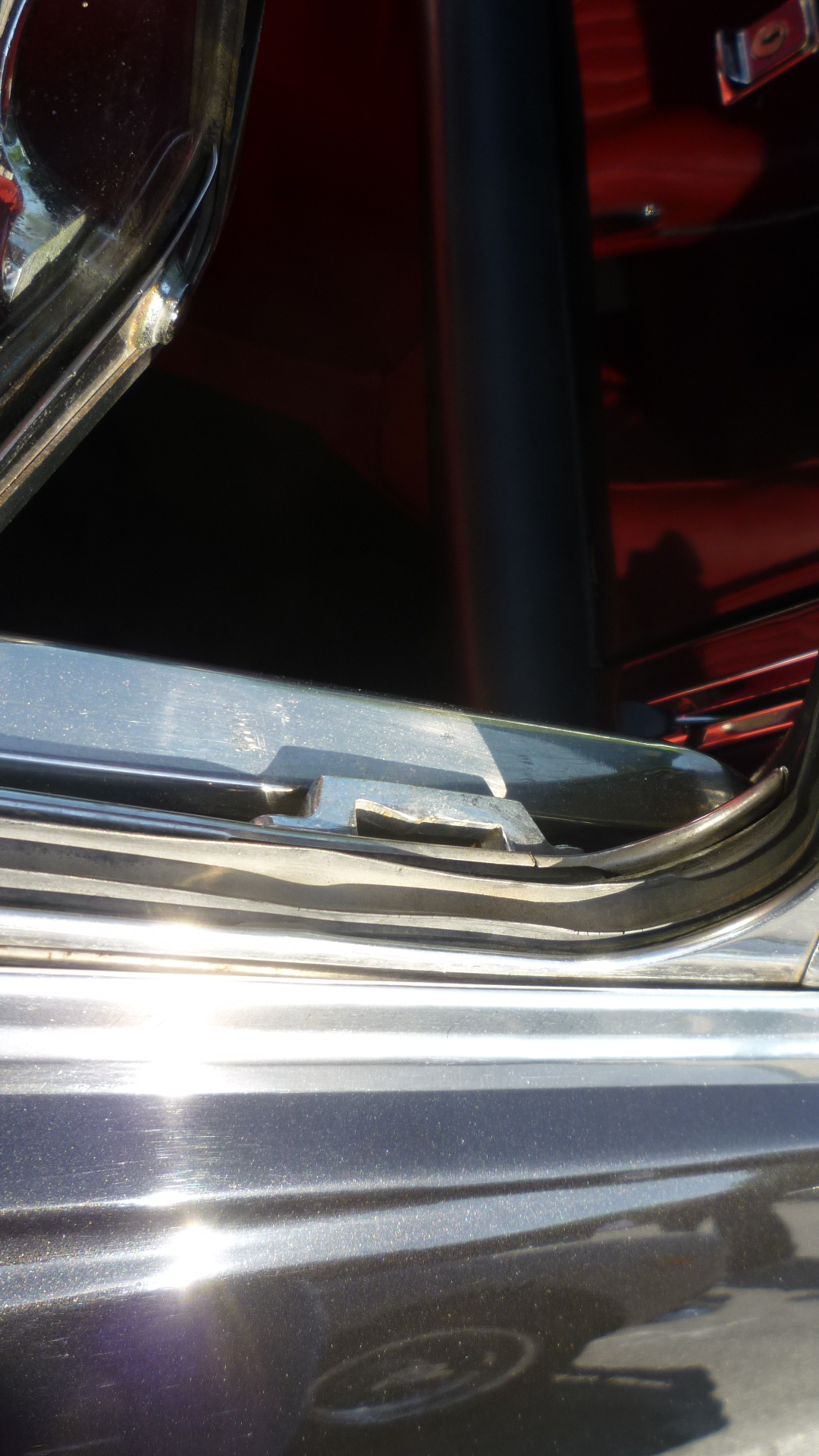

| Vent window seal |
Seals vent window at front
when closed (Series I) |
242.30.372.0.0 |
2 |
|
|
B |
14-27 |
16315132 |
|
| Vent window seal
(left) |
Seals vent window at rear
when closed (Series I) |
242.30.375.0.0 |
1 |
|
|
B |
14-28 |
16315132 |
|

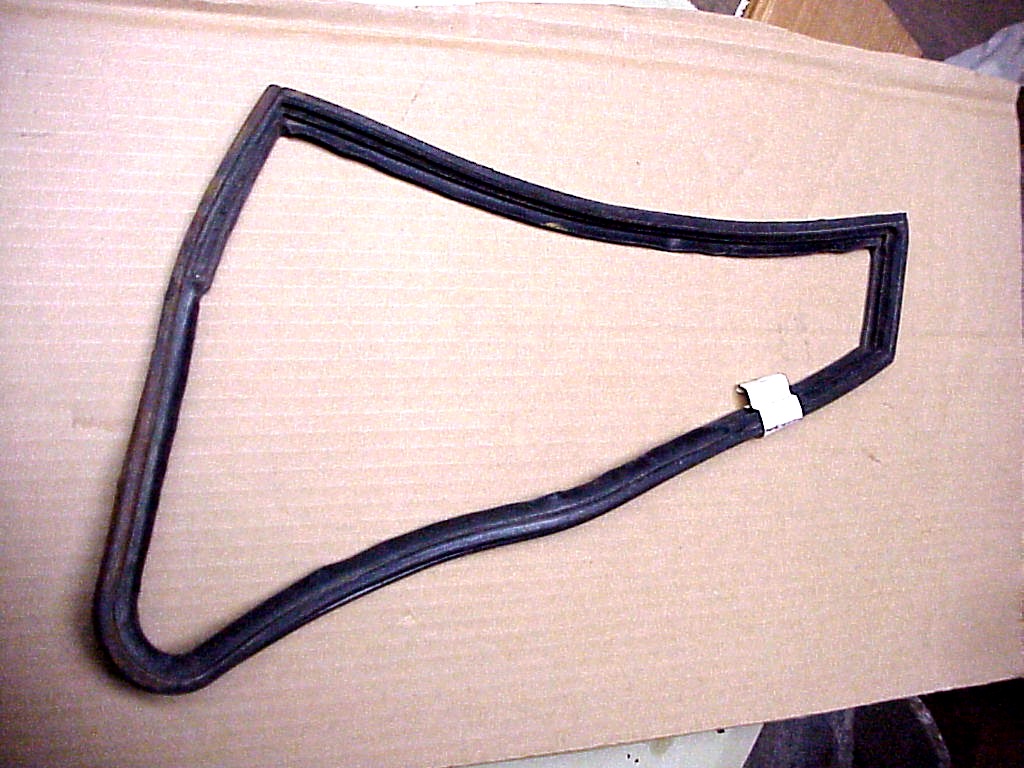

| Vent window
seal (left) |
Seals vent window when
closed (Series II) |
242.30.373.0.0 |
1 |
|
|
B |
14/1-27 |
16315133 |
|
| Vent window
seal (left) |
Seals vent window when
closed (Series II) |
242.30.372.1.0 |
1 |
|
|
B |
14/1-27 |
16315133 |
|
| Vent window seal
(right) |
Seals vent window at rear
when closed (Series I) |
242.30.374.0.0 |
1 |
|
|
B |
14-28 |
16315132 |
|

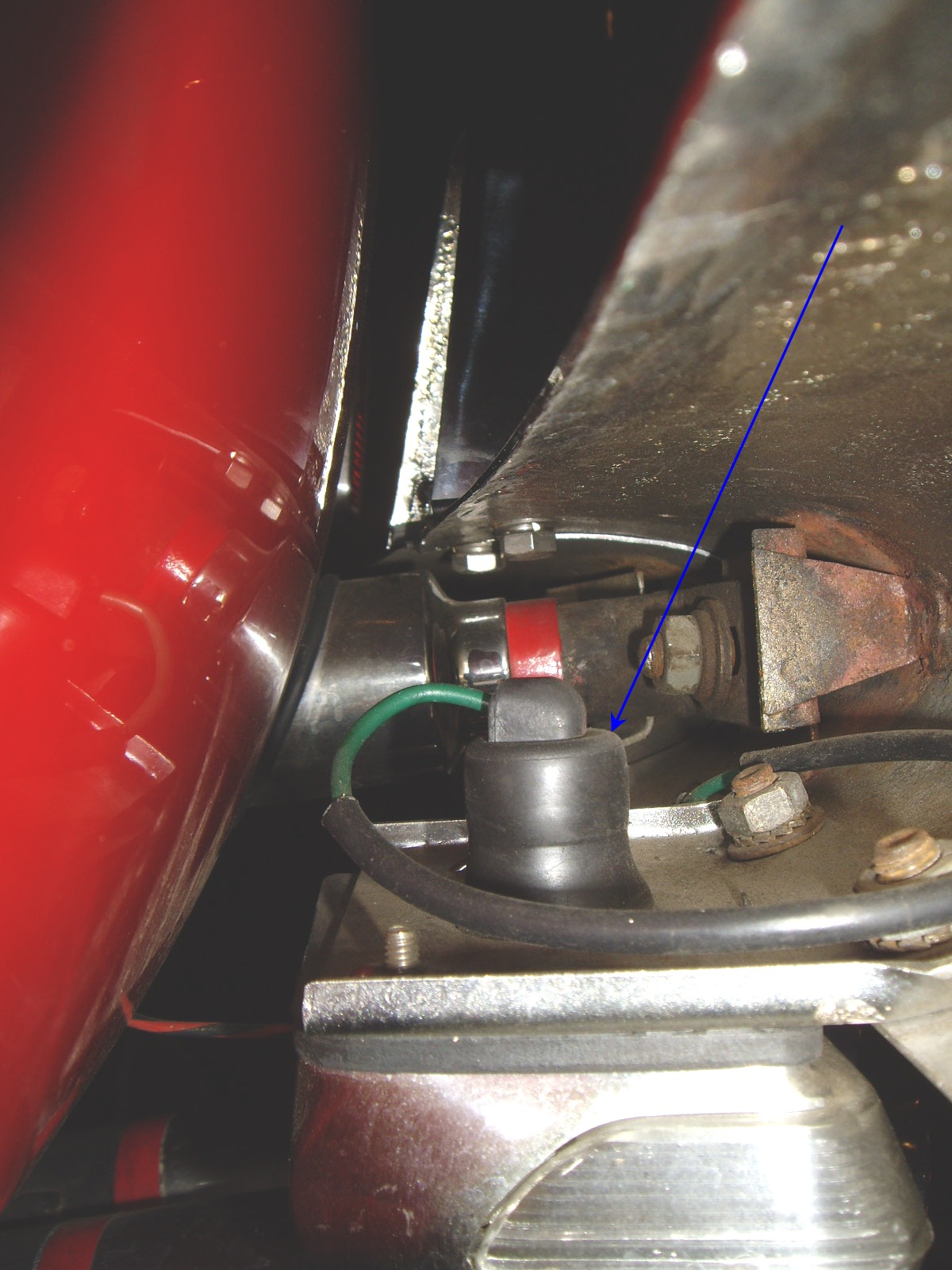

| Water temperature sender
boot |
On wire at sender (series
I) (note 8) |
28919 |
1 |
|
|
1 |
10-66 |
16315246 |
|
| Water temperature sender
boot |
On wire at sender (Series
II) (note 8) |
28919 |
1 |
|
|
2 |
36-53 |
16315246 |
|

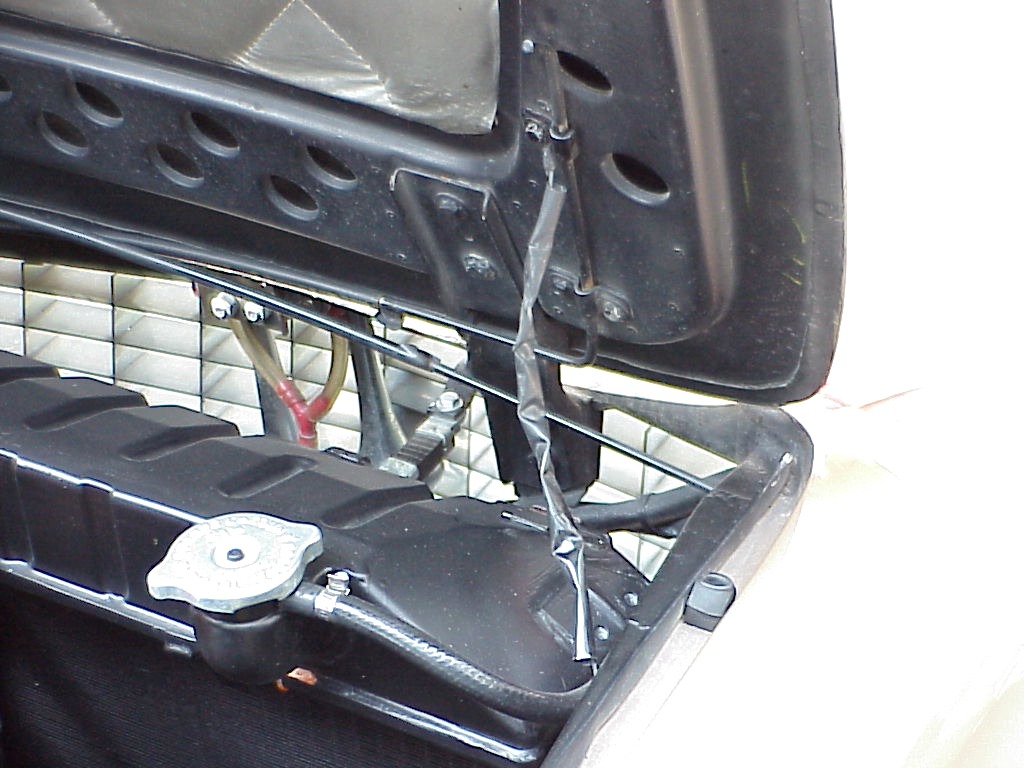

| Wind strap
cover |
On cable used to keep hood
from opening too far |
Part of 242.28.598.0.0 |
1 |
|
|
B |
10/1-24 |
|
|
| Windshield
gasket |
Around windshield |
242.40.020.0.0 |
1 |
|
|
B |
31-2 |
16315100 |
|

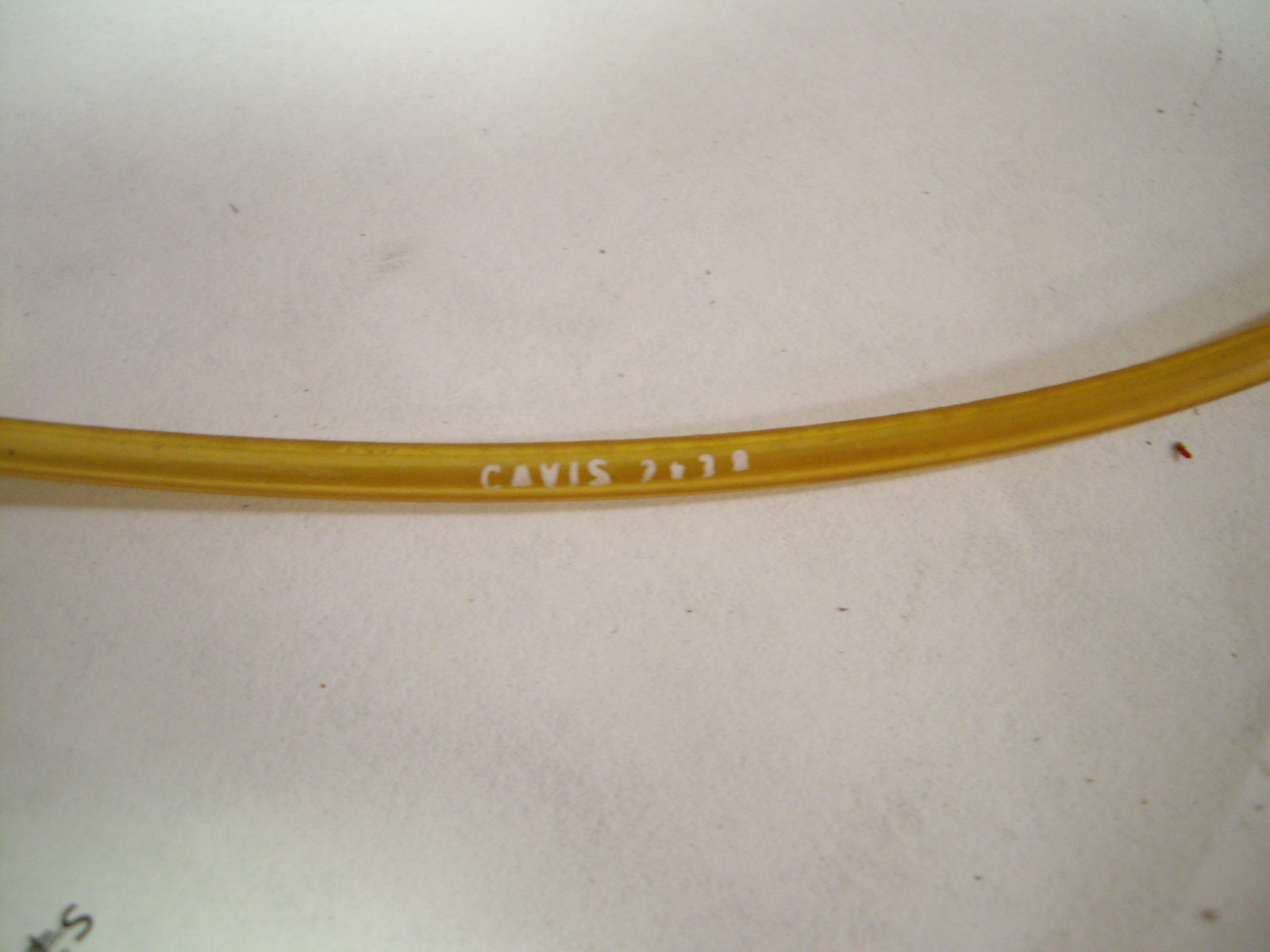

| Windshield
washer tubing 3.5mm OD |
From splitter to each
nozzle |
|
1 |
2 |
0.6 |
B |
|
|
|

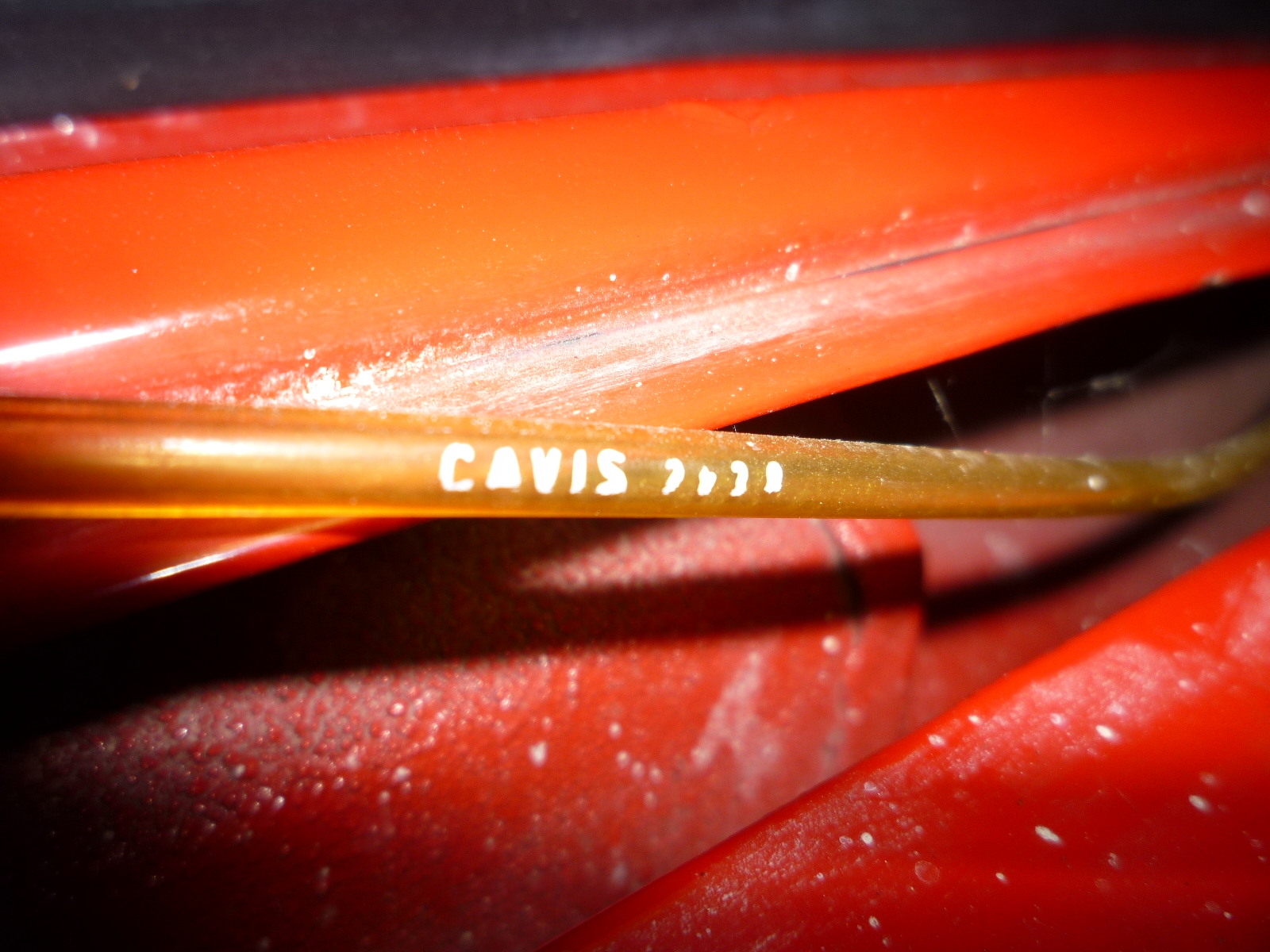

| Windshield
washer tubing 7mm OD |
From washer bag to splitter |
|
1 |
5 |
1.5 |
B |
|
|
|

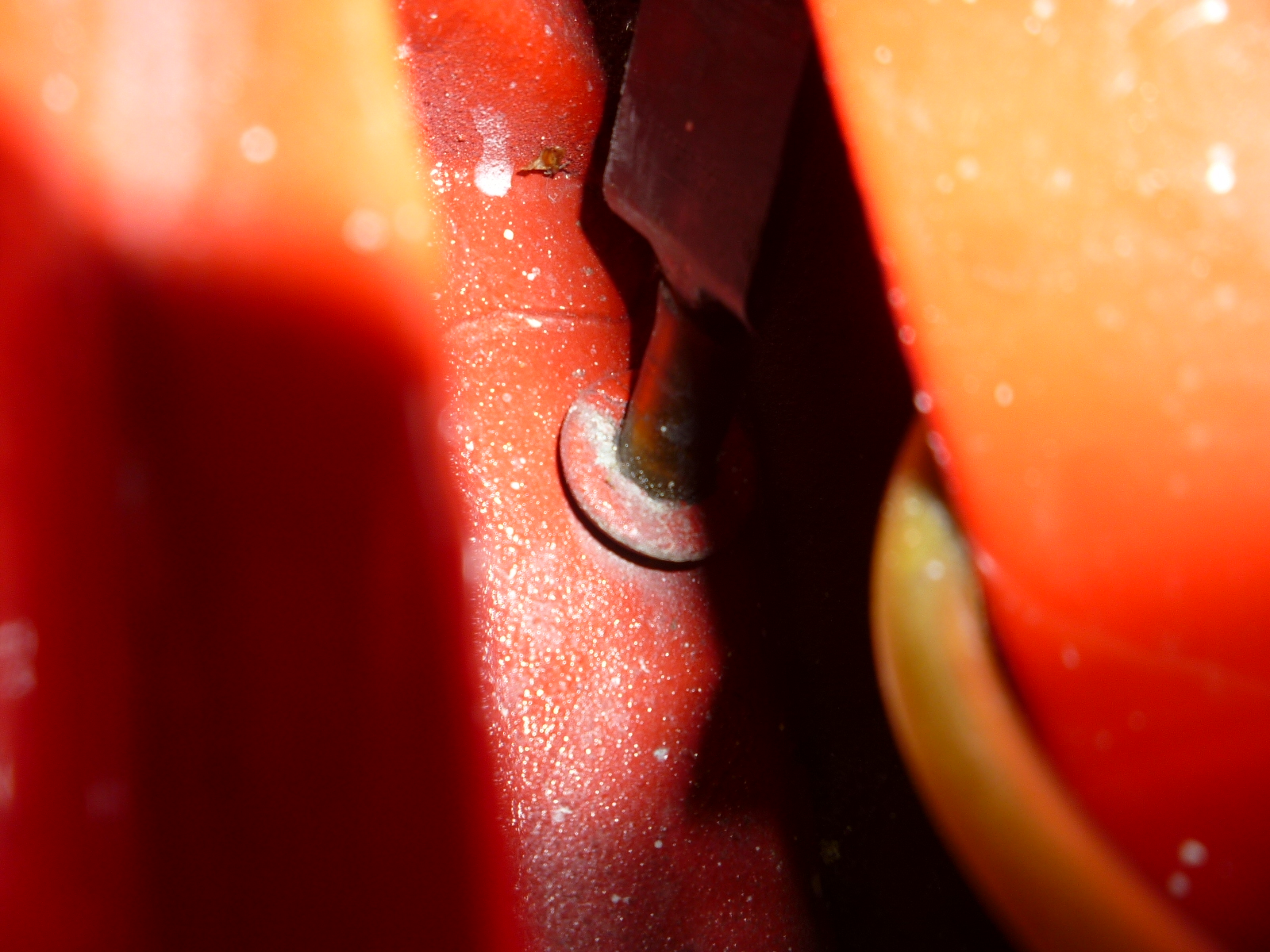

| Windshield
washer tubing grommet |
Around washer tubing at
firewall |
|
1 |
|
|
B |
|
|
|
| Wiper box seal |
Between wiper box stud and
body |
239.84.110.0.0 |
2 |
|
|
B |
62-3 |
16315370 |
|
| Wiper motor
grommets |
On studs holding wiper
motor to body |
Part of 242.84.012.0.0 (Note 6) |
4 |
|
|
B |
62-1 |
|
|
| Wiper tube grommet |
Around wiper tube at
firewall |
241.84.200.0.0 |
1 |
|
|
B |
62-8 |
|
|
| Wiring
loom grommet |
Around wires between
distributor and tube |
28978 |
2 |
|
|
2 |
13-23 |
|
|
| Wiring
loom O-ring |
Around wires on both sides
of loom grommet (Series I) |
122 |
4 |
|
|
1 |
14-11 |
|
|
| Wiring

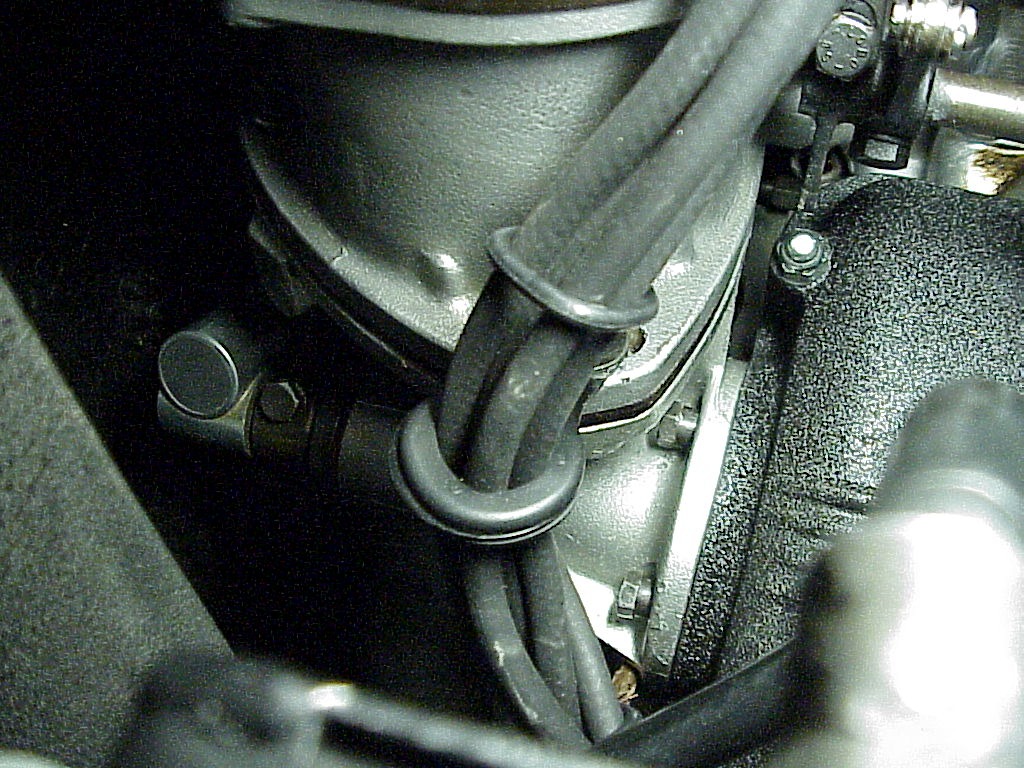

loom O-ring |
Around wires on both sides
of loom grommet (Series II) |
400048 |
4 |
|
|
2 |
13-24 |
|
|
| Wiring spade connector
covers |
Covers spade connectors on
wiring harness |
? |
100 |
|
|
B |
57-? |
16315286 |
|
|
|
|
|
|
|
|
|
|
|
| * All lengths
are the total for this part. Lengths
were measured on my car (8755), a Series II.
Please verify the length on your car before purchasing. |
|
|
|
|
|
| ** Type of
manual (B - PF body parts, 1 - Series 1 parts, 2 - 1965 parts, P - Power
steering, L - Late parts) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Notes |
|
Totals for same parts |
Qty |
Feet |
Meters |
|
|
|
|
| 1 |
Door and quarter windows seals are the same part |
|
|
25 |
7.6 |
|
|
|
|
| 2 |
Window and quarter window channels are the same part |
|
|
11 |
3.4 |
|
|
|
|
| 3 |
Bumper escutcheon, license surround, HL trim,
and overrider rubber are the same part |
|
14 |
4.3 |
|
|
|
|
| 4 |
Hood and trunk trim are the same part (4 speed) |
|
|
0 |
0 |
|
|
|
|
| 4a |
Hood and trunk trim are the same part (5 speed) |
|
|
6 |
1.8 |
|
|
|
|
| 5 |

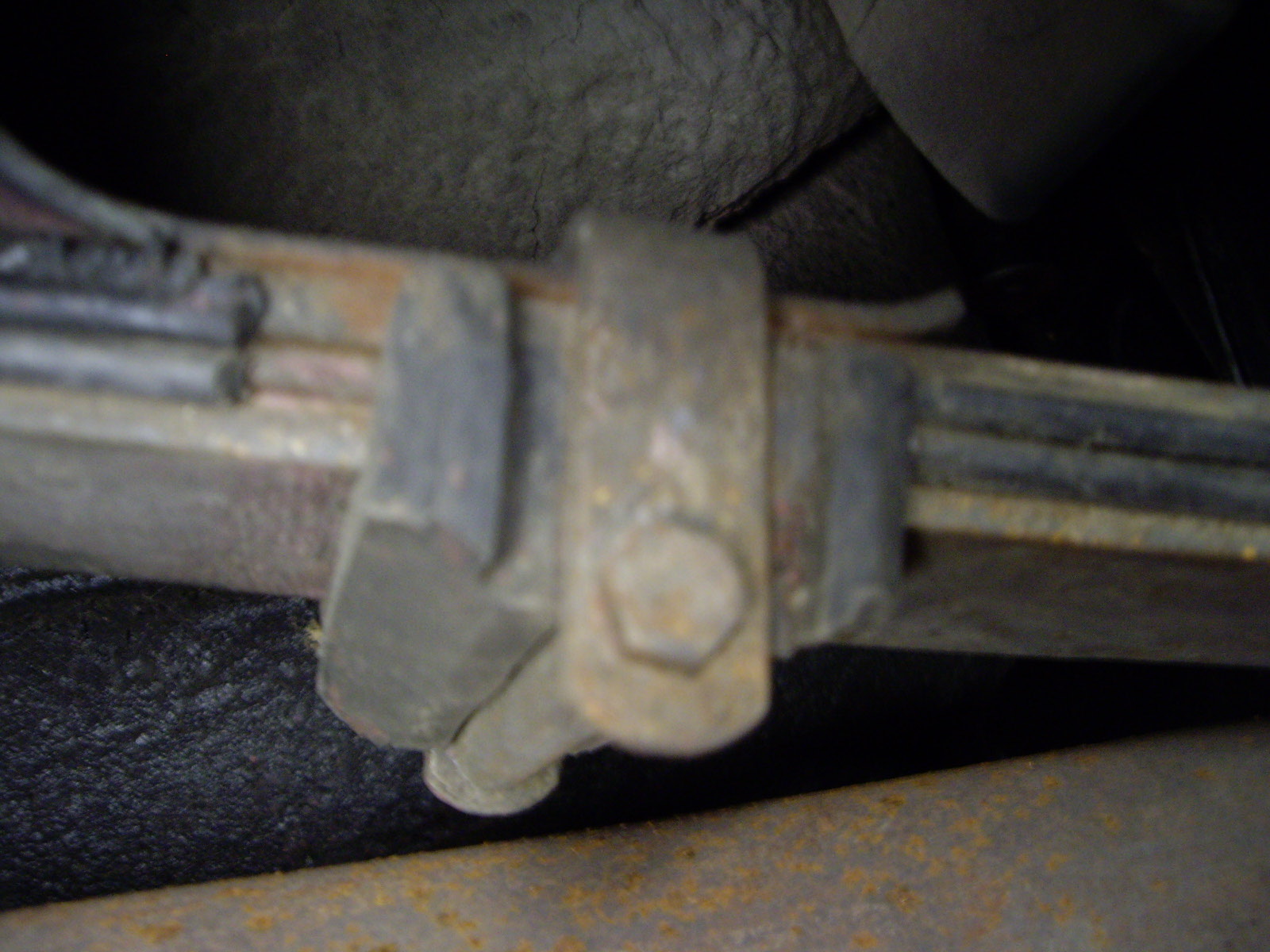

Rubber for all springs are
the same part |
|
5 |
|
|
|
|
|
|
| 6 |

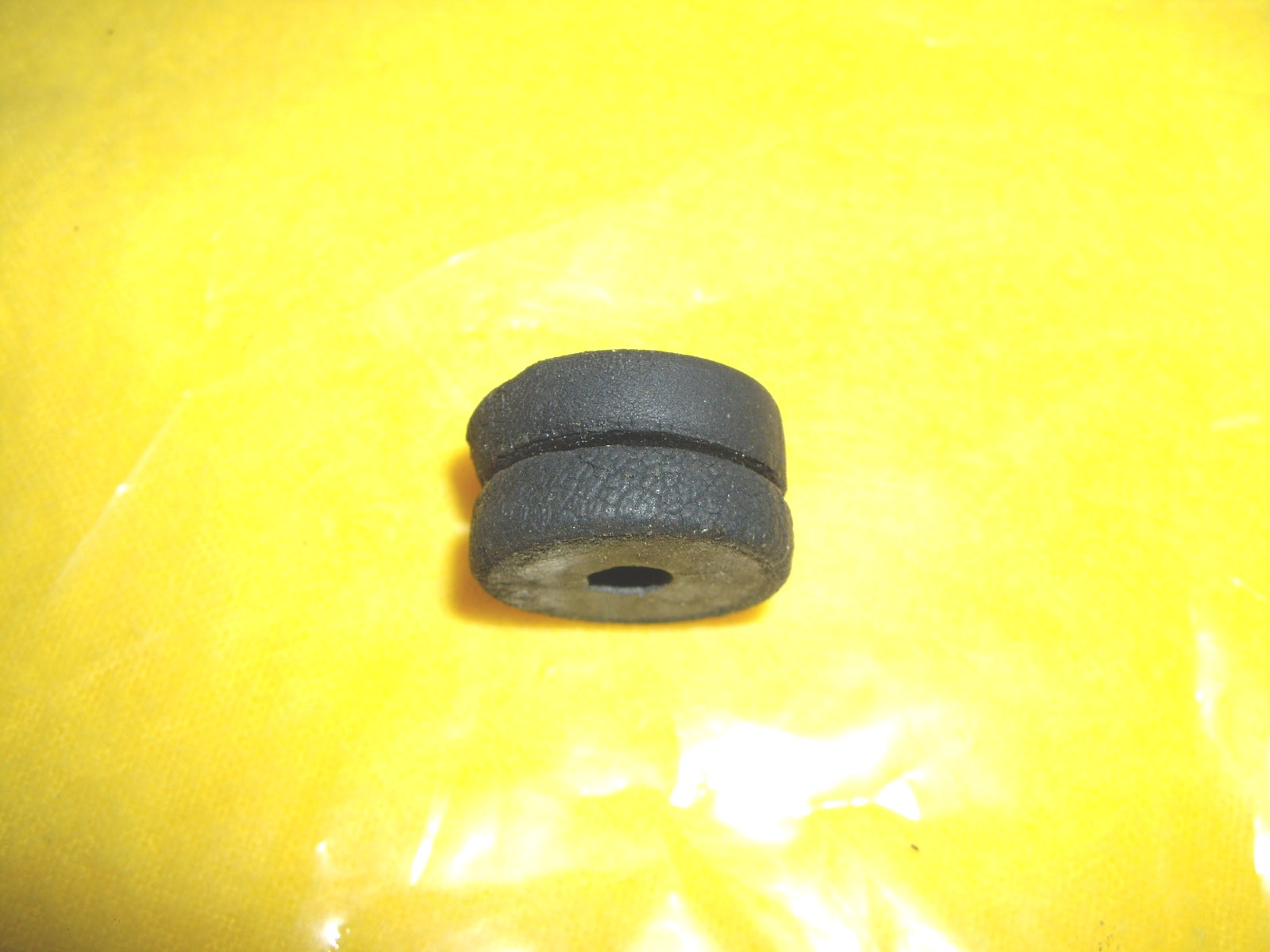

Fan and wiper motor
grommets are the same part |
|
8/12 |
|
|
|
|
|
|
| 7 |

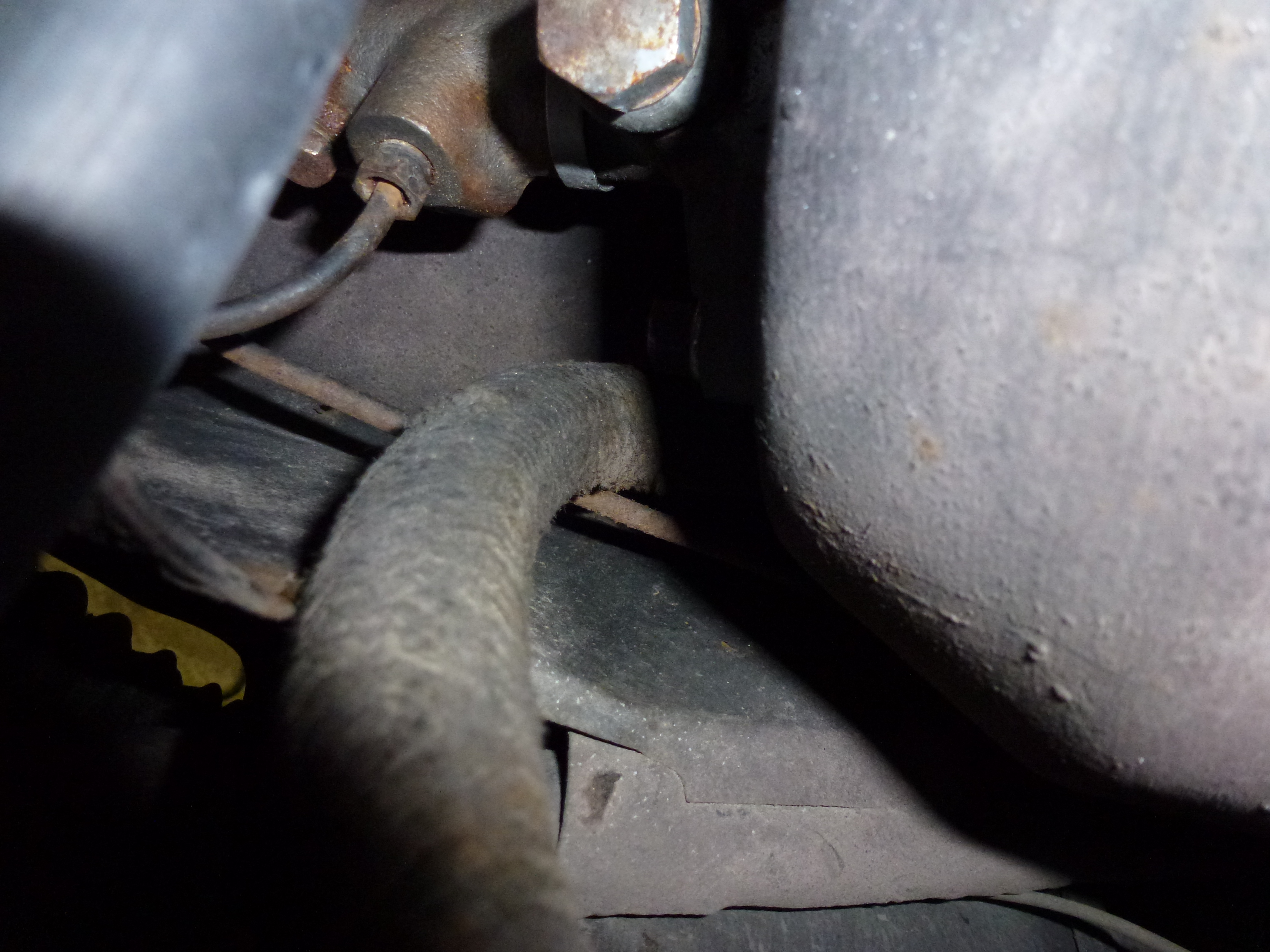

2 hoses on early cars, 1 on later non-P/S
equipped cars, none with P/S |
|
|
|
|
|
|
|
| 8 |
Oil and water temperature sender boots are the same part |
|
2 |
|
|
|
|
|
|
| 9 |
Oil
temperature sender boot not shown in series II parts book |
|
|
|
|
|
|
|
| 10 |
The Cicognani part is not right. Should be PVC,
square topped. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Undoubtedly
I've missed some parts. In particular,
I'm not very familiar with the Series I cars and I know that I haven't noted
all of the differences. |
|
|
|
|
|
| This page does
not address the rubber parts for a 330 America. |
|
|
|
|
|
|
|
|
| Please contact me with any
updates. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
.JPG){kind=link}
